Forte

Description

DUCT HUMIDIFICATION

Easy to integrate into any ventilation or AC system

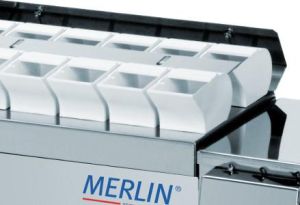

The duct humidification system Merlin Forte can easily be integrated into most ventilation and air conditioning systems. It works on the basis of the ultrasonic principle and humidifies the air with aerosols of 1 ¼m. For generating 1 kg moisture merely 52

W/h of energy is used. Compared to isothermal systems e.g. steam humidifiers up to 93% of energy costs are therefore saved.



Reviews

There are no reviews yet.

Be the first to review “Forte”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATIONS:

  • Paint Shops and clean rooms
  • Electronics
  • Food Industry
  • Medical manufacturing facilities

OPTIONS

  • Duct hygrostat
  • Control cabinet with microprocessor controller
  • Various reverse osmosis systems
  • Online conductance measuring
  • Various transformers

Water is atomised by ultrasonic vibrations of 1.7 MHz into aerosols of 1μm. By means of the existing ventilation or air conditioning systems they are released into the desired environment. The aerosol mist (cold vapour) mixes with the ambient air, evaporates completely and is distributed evenly throughout the room.






DETAILS

  • Corrosion-free stainless steel
  • Dry run, thermal and overflow protection
  • Oscillator of ceramic-piezoelectric material
  • Mains filter for protection against voltage peaks
  • Hygiene management AquaDrain®
  • Disinfection programme Contra-Keim®



CONTROLLING

  • Hygrostat control
  • Constantly by integrated signal adapter
  • Proportional control
  • Potential free output





TECHNICAL DATA

Type

Humidification capactiy Kg/h

Capacity VA

Voltage V/Hz

Weight kg

Dimensions (LxHxDmm)

FORTE 6

3.6

185

48V/50Hz

6.0

285 x 202 x 261

FORTE 12

7.2

375

48V/50Hz

7.7

435 x 202 x 261

FORTE 18

11.8

555

48V/50Hz

9.5

585 x 202 x 261

FORTE 24

14.4

735

48V/50Hz

11.7

735 x 202 x 261

FORTE 30

18.0

915

48V/50Hz

13.7

885 x 202 x 261

FORTE 36

21.6

1095

48V/50Hz

15.2

1035 x 202 x 261

FORTE 42

25.2

1275

48V/50Hz

17.2

1185 x 202 x 261



OPERATION

Max air humidity

< 90% relative Humidity

Air temperature

5°C to 45°C

Pure water pressure

min: > 1 bar dynamic
max: < 6 bar static

Pure water quality

Totally desalinated

Conductance value pure water

> 20 µS/cm³

Low voltage

48 VAC – 50 Hz
