Lightweight Pressure Tank

Description

Lightweight material pressure tanks, type LDG

These thin-walled containers are made entirely of stainless steel. The tanks can be opened easily, using the quick-release grip locks.

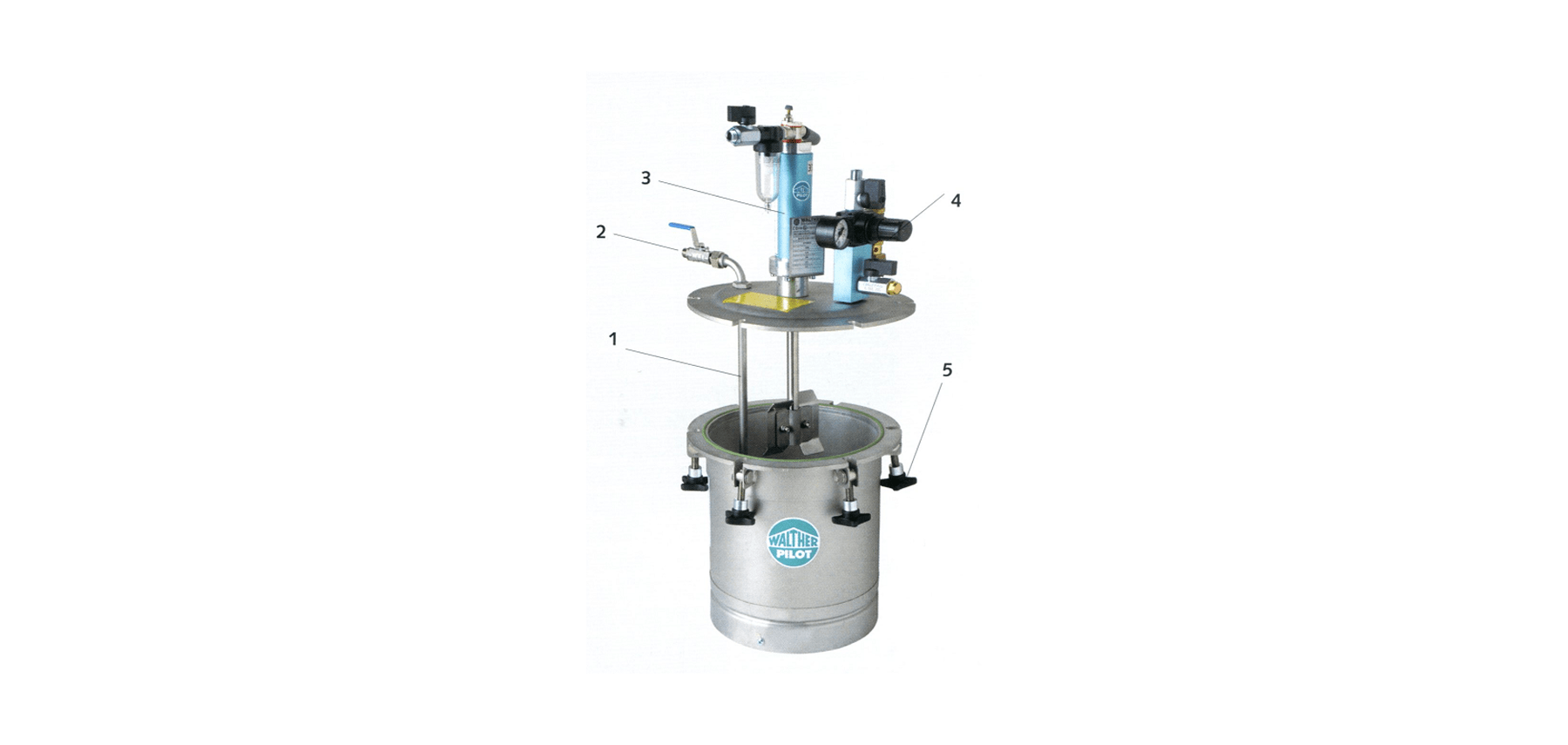

  1. Pipe to material outlet
  2. Material outlet ball valve
  3. Optional agitator
  4. Air inlet fitting assembly with pressure regulator, pressure gauge, safety valve, and venting
  5. Quick-release grip locks.



lightweightpressuretank-image2

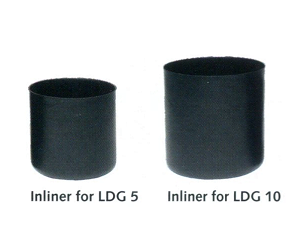

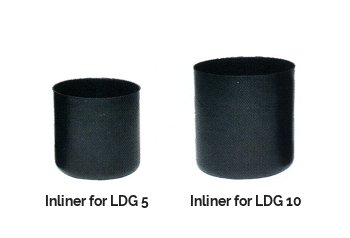

Inliners

Inliners effectively protect the inner walls of the tank against soiling. They are made of thin but very strong polypropylene and can be used for all common water-based and solvent-based materials. To prevent electrostatic discharge, the material is electrically conductive.

  • Inliners for LDG 5 (5 in a package): V 43 000 50 000
  • Inliners for LDG 10 (5 in a package): V 43 001 00 000



lightweightpressuretank-inlners



Reviews

There are no reviews yet.

Be the first to review “Lightweight Pressure Tank”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATIONS

FEATURES

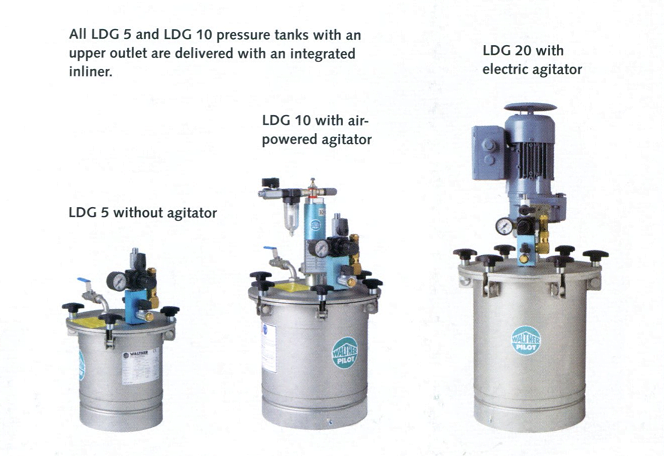

Lightweight Material Pressure Tanks, Stainless Steel



TYPE

MAX PRESSURE

CAPACITY APPROX

VERSION

PART NO.

LDG 5

6 Bar

3.5 Liters

Without agitator

V 44 051 60 013

6 Bar

3.5 Liters

With manual agitator

V 44 051 60 113

6 Bar

3.5 Liters

With air-powered agitator (0.16 kW, 400 rpm)

V 44 051 60 213

LDG 10

6 Bar

9 Liters

Without agitator

V 44 101 60 013

6 Bar

9 Liters

With manual agitator

V 44 101 60 113

6 Bar

9 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 101 60 213

6 Bar

9 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 101 60 313

LDG 20

6 Bar

15 Liters

Without agitator

V 44 201 60 013

6 Bar

15 Liters

With manual agitator

V 44 201 60 113

6 Bar

15 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 201 60 213

6 Bar

15 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 201 60 313
