C Type Series Nozzle

Description

DESCRIPTION

The C Type Series nozzle produces a evenly distributed deflected flat fan spray pattern and is designed only for the process of continuous casting within the Steel Industry.

MATERIALS AVAILABLE

Brass
Stainless Steel

SPRAY ANGLES AVAILABLE

80° or 100°
Examples in table only show 80°

ORDERING EXAMPLE:

Stainless Steel C1000100 complete with retaining cap.

Reviews

There are no reviews yet.

Be the first to review “C Type Series Nozzle”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Continuous Casting
Secondary Cooling

FEATURES

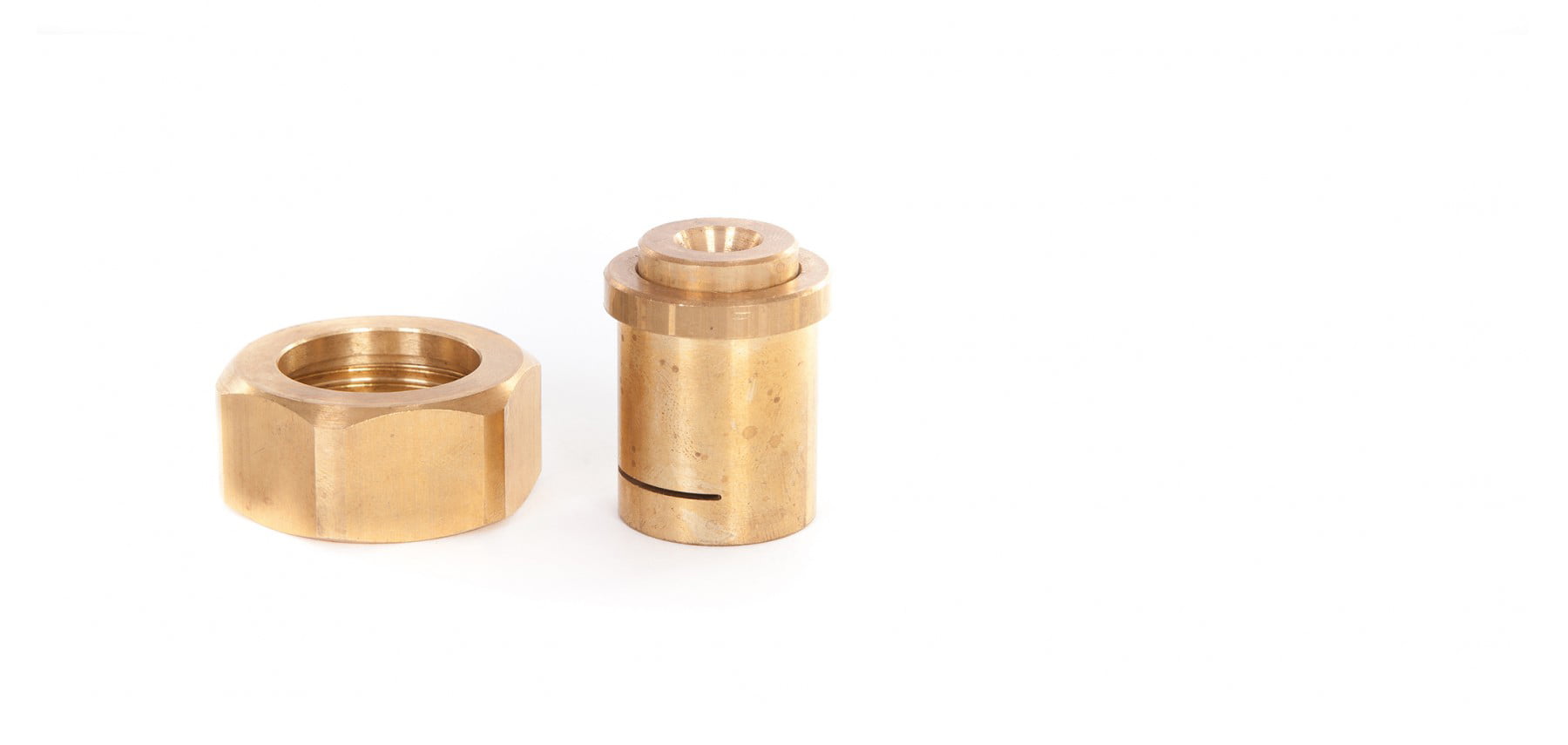

Three piece construction
With internal nozzle to produce flat fan pattern
Designed to fit inside 1″ Retaining Nut

Deflected flat fan steel industry nozzle

Nozzle Ref

Orifice Width (mm)

Flow in LPM @ Bar

Spray Angle

1

2

2.8

3

5

7

C050080

0.6

3.0

4.2

5.0

5.2

6.7

7.9

80°

C100080

0.8

7.7

9.2

10.0

10.2

11.6

12.6

80°

C150080

0.9

13.2

14.4

15.0

15.1

16.1

16.8

80°

C200080

1.1

18.8

19.6

20.0

20.0

20.7

21.2

80°

C300080

1.6

29.1

29.7

30.0

30.1

30.5

30.9

80°
