Aquarius Humidification Control System

Automated & User-friendly Humidification System

Aquarius Humidification Control System

Description....

What is the Aquarius?

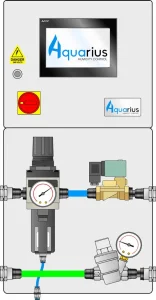

aq-diagram
Aquarius Humidification Control System

To complement our dry fog nozzle technology and to offer a full and comprehensive solution, our Aquarius Humidification control system offers a completely automated, user-friendly humidification system. Our Aquarius controller works along with our Dry Fog nozzles to create a perfectly controlled environment, whatever your process.

The Aquarius controller, available in either painted steel or stainless steel, offers accurate control over the relative humidity in a variety of applications such as production halls and facilities, cold stores, printing, and bakeries.

Depending on how you intend to integrate and install the Aquarius controller and water treatment, we offer options on how the controller is built and supplied. The Aquarius controller & water treatment can either be supplied as wall mounted options, or can be supplied combined, mounted on an easy to install floor standing frame. Both options are very easy to install and come ready for connection to your mains water, compressed air and electrical supply.

The Aquarius control system has a range of features which have been designed to not only improve control accuracy, but also to make it as user friendly as possible, low maintenance and reliable.

The Aquarius system monitors and records both humidity & temperature, allowing the user to monitor the effects temperature can have on the humidity level. Our advanced sensor comes in an aspirated box and features sensor protection which hides the sensor from corrosive fluids. Built in timers are also included should customers prefer to set the timer function. To increase the accuracy, the Aquarius has a pulsed operation which means that it can always maintain the correct RH level without ‘over shooting’ above the set parameters.

The Aquarius system monitors and records both humidity & temperature, allowing the user to monitor the effects temperature can have on the humidity level. Our advanced sensor comes in an aspirated box and features sensor protection which hides the sensor from corrosive fluids. Built in timers are also included should customers prefer to set the timer function. To increase the accuracy, the Aquarius has a pulsed operation which means that it can always maintain the correct RH level without ‘over shooting’ above the set parameters.

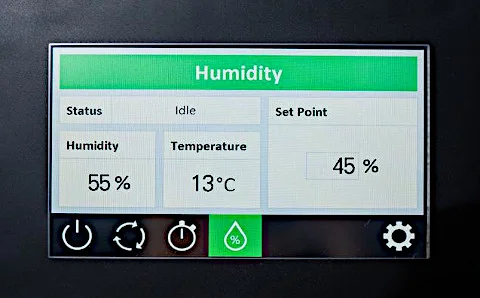

Colour Touch Screen

color-touch-screen480

The latest colour touch screen HMI is used within the Aquarius which has easy to use graphics and menu screens. We offer customisable graphics depending on the customers application and requirements which can greatly improve the user experience. The Aquarius system also offers the user the option of remote monitoring without being near the controller itself. You can log in via the internet wherever you are to look at real time humidity and temperature levels within your controlled area.

Mulitple Zone Control

For applications where humidification control is needed in more than one area, the Aquarius humidity control system offers multi-zone control. For example, for a production facility with three separate areas/zones to be controlled, the system would include a humidity & temperature sensor in each zone, which can be set to different parameters so the zone can be controlled independently, all from the same touch screen on the Aquarius unit

Benefits
  • Available in painted steel or stainless steel
  • Colour touch screen
  • Easy to use graphics – customisable
  • Single or multi zone control
  • Single or double humidity/temperature measurement
  • Sensor in aspirated Box
  • Sensor protection hides sensor fromcorrosive fluids
  • Settable parameters for humidity including pulse

Benefits
  • Daily flush of system when not in use for hygiene
  • Dual fluid control – e.g. humidity and disinfection
  • Remote access using Internet
  • Built-in timers to permit continued production
  • External audible and visual alarm
  • Electronics and fluids in separate enclosures for safety
  • Three sizes available – 1⁄4” / 1⁄2” / 1” BSP
  • Wall mounted or all-in-one floor standing design

Humidification & Room Disinfection

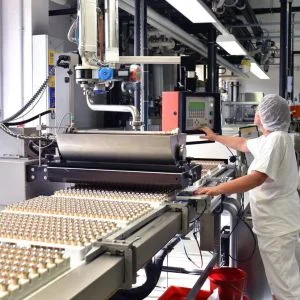

room-humidification-disinfectionThe Aquarius System also offers a dual function for both humidification and for room disinfection. Should the customer wish to use The Aquarius to disinfect the room or area that it humidifies, a disinfection function can be included, which enables the user to schedule in a fixed disinfection time, and run time, by switching from the humidification function to the disinfection function.

By switching the function, this moves from full water supply (humidification) to water supply with a suitable disinfectant dosed in via a dosing unit. This feature must be specified at the time of order. Please be aware that we neither supply nor recommend a particular brand or supplier, however, we stress that only approved and safe solutions are used.

As well as being an effective way of disinfecting rooms and the equipment and surfaces within the room, it is also disinfecting the humidification system and its components, which assists with your maintenance and hygiene

Low Levels of Maintenance…High Levels of Hygiene.

water-treatmentWhen atomising liquid so finely, water treatment and hygiene is essential for both preventing suspended solids and particles entering the system and also removing bacteria build up in the water.

To maintain optimal hygiene standards within The Aquarius system, through the pipework to the fogging nozzles, The Aquarius automatically flushes the system daily when not in use. The flush cycle is pre-set to work for 2 minutes every 12 hours, this is to combat any potential bacteria build up caused by stagnant water that has been stored for too long.

Water Treatment

Our water treatment unit includes inline water filters, one 50 micron, the other 5 micron, and an ultraviolet disinfection unit.

The UV unit is a versatile unit designed to eliminate waterbone bacteria using the proven method of exposure to ultraviolet light. The water treatment unit comes fully assembled and piped, ready to be connected to your water supply.

This unit can be supplied ready to mount to a wall or a machine, or supplied along with the control panel, all in one convenient floor standing design.
