Humidifiers

Description

Cutting Edge Information Technology

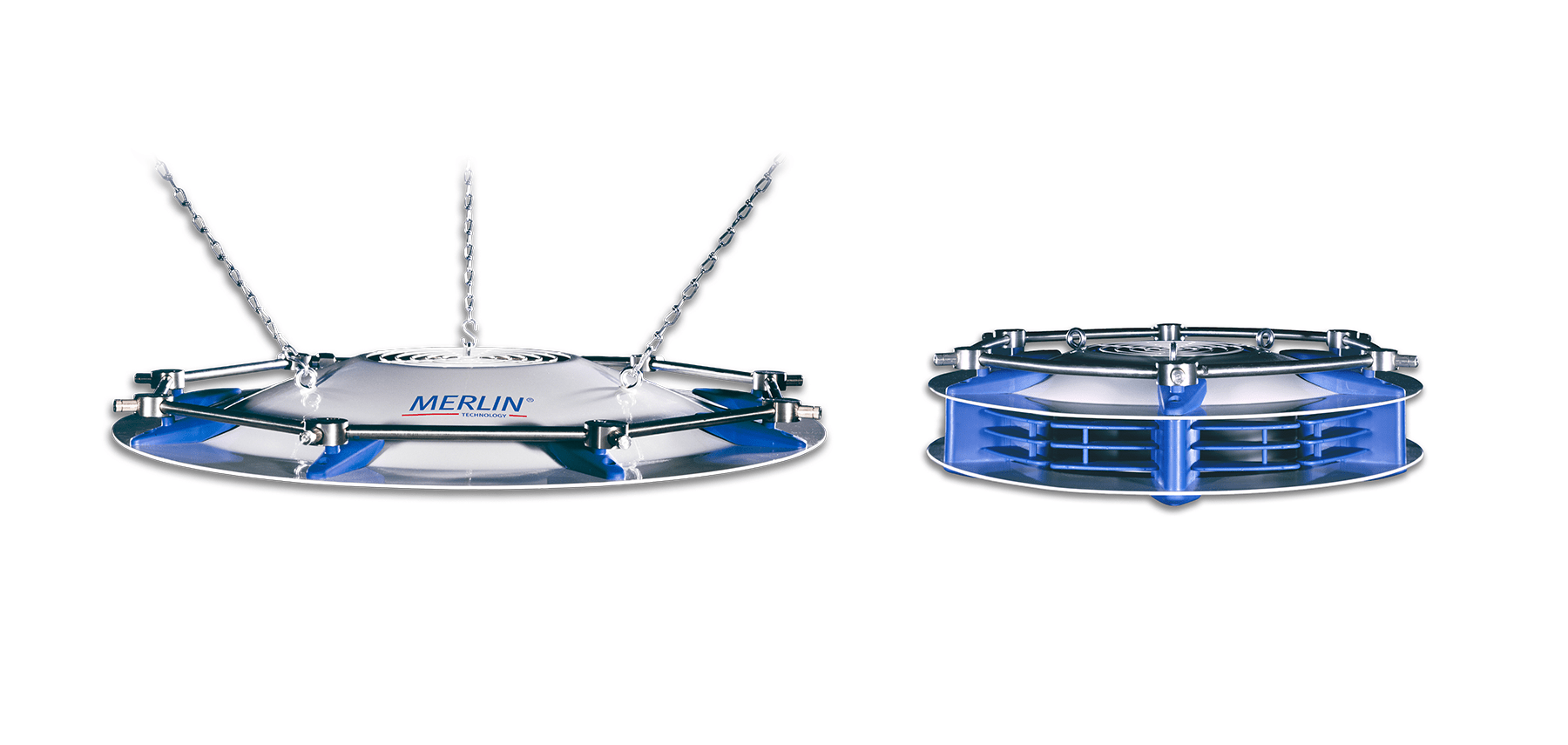

These specially designed humidification units, which have been built to have the lowest installation height possible, can be adapted and used in a very wide range of room layouts and as such ensure optimal humidification efficiency. Their design, ultra-low-energy consumption and low noise level all mean that the units are also suitable for use in exhibition and office spaces. Merlin humidification units take in warm air from the upper level of the room and create a ‘warm air cushion’. This makes fast evaporation possible while also distributing humidity evenly throughout the room.

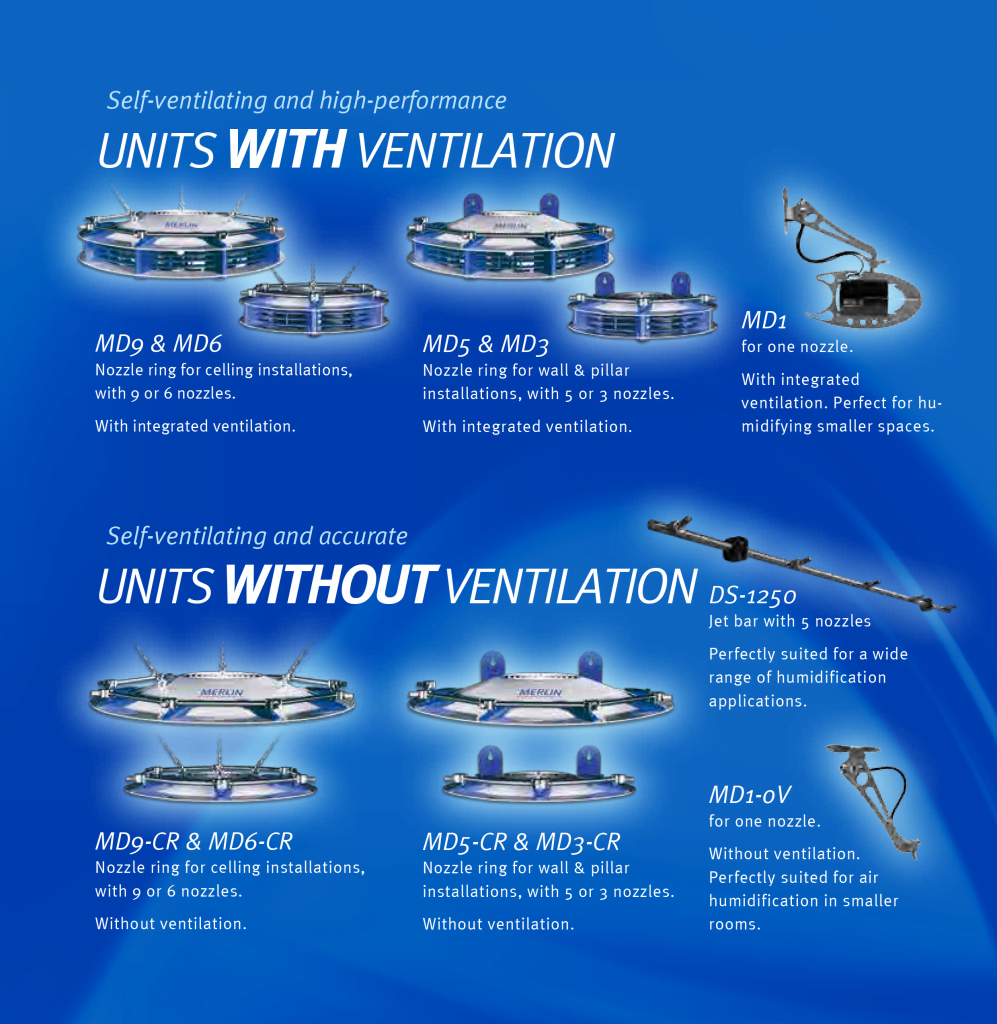

ventilation

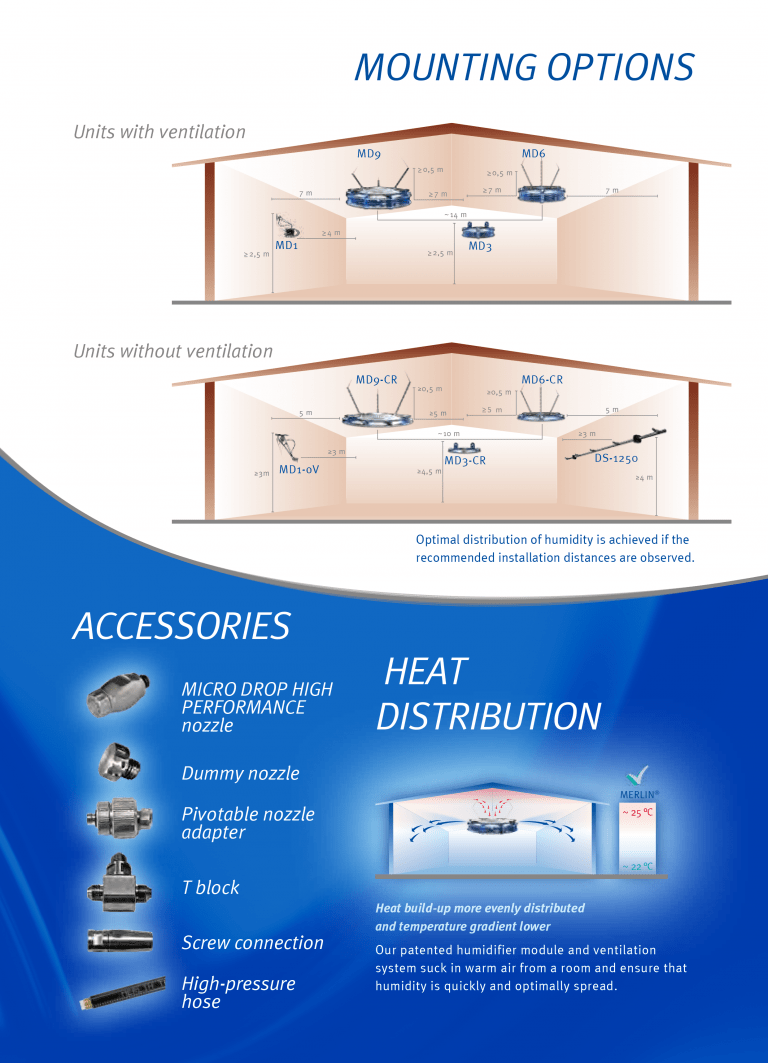

page-13-brochure

Reviews

There are no reviews yet.

Be the first to review “Humidifiers”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

Applications:

Printing & Paper
Woodworking
Automotive
Cold Storage
Textiles
Barrel and cask storage

Advantages:

Micro Drop Atomisation
Functional Design
High Standard of hygiene
Almost zero maintenance required
Adjustable design and modular construction
Low operating costs
Simple installation
Frequency controlled hydraulic pump (no oil or maintenance involved)

Technical Data:

Operating Pressure:

70 Bar

Water Connection:

¾” BSP

Water Property:

0°C dH, temp 10°C – 20°C

Supply Hose:

1 Metre

High Pressure Connection:

¼” BSP

Power Supply:

415V;50Hz; 1.5kW,2.2kW or 4kW

Power Supply Cable:

1.5 metre

Dimensions (WxDxH):

660 x 440 x 1570

Weight:

70kg



Models:

Part Number:

Capacity:

AL-EZ-HD120

50-120 l/h

AL-EZ-HD230

90-230l/h

AL-EZ-HD300

120-300l/h

AL-EZ-HD450

300-450l/h
