LF Series Nozzle

Description

DESCRIPTION

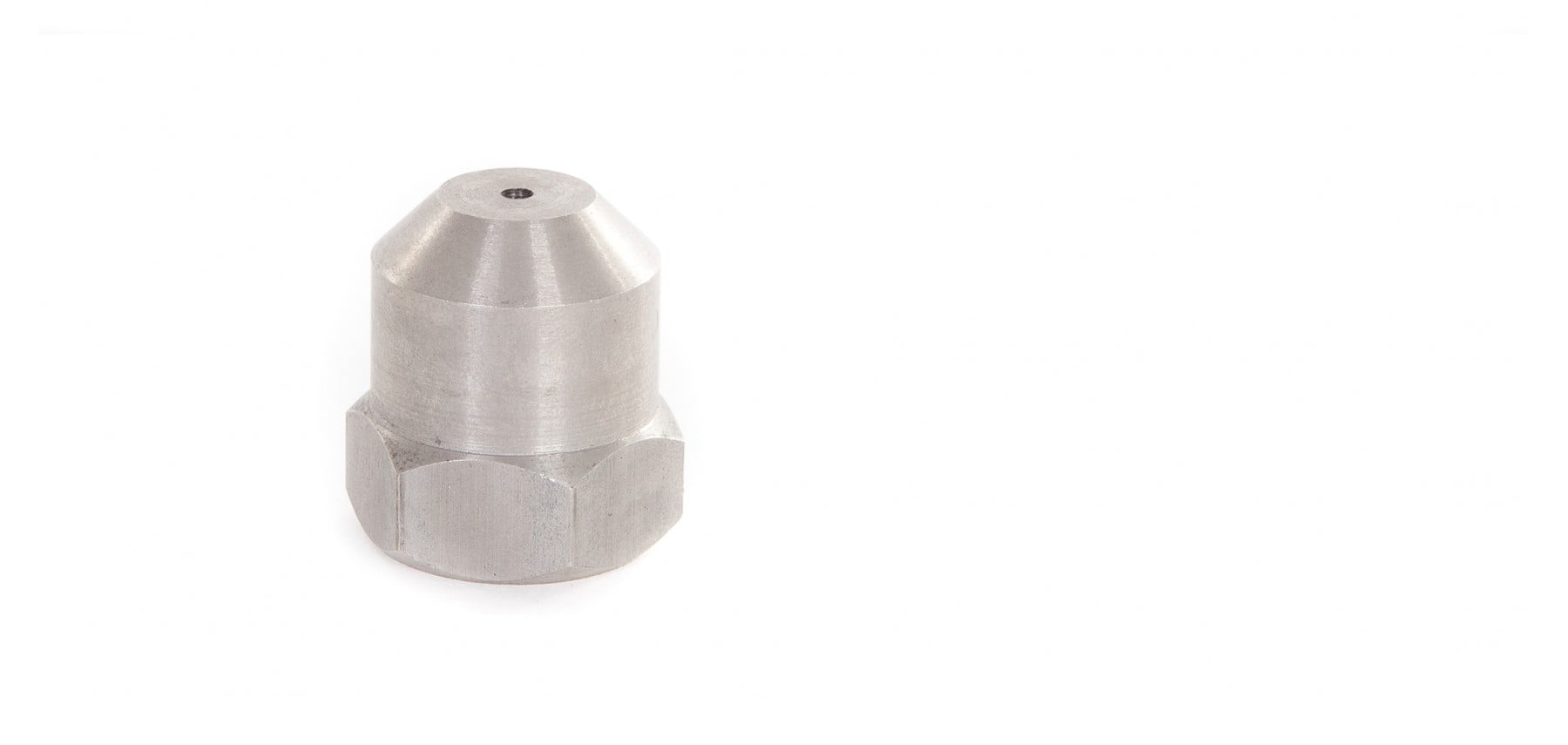

Commonly used for billet casting or edge spraying of slabs/blooms. This full cone nozzle produces an even distribution using a secure vane design. The hexagon body allows for easy installation and removal.

MATERIALS AVAILABLE

Brass
Stainless Steel

SPRAY ANGLES AVAILABLE

35 – 120 degrees

ORDERING EXAMPLE:

BRASS LF4065 FEMALE

Reviews

There are no reviews yet.

Be the first to review “LF Series Nozzle”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Continuous Casting
Secondary Cooling

FEATURES

One piece body with internal core
Full cone spray pattern
Even distribution
Male or female connections
3/8″ BSP Threaded

full cone spray pattern nozzle for steel applications

Nozzle Ref

Orifice Width (mm)

Flow in LPM @ Bar

1.0

2.8

3.0

4.0

5.0

7.0

LF15

1.0

0.9

1.5

1.6

1.8

2.0

2.4

LF20

1.6

1.2

2.0

2.1

2.4

2.7

3.2

LF25

1.8

1.5

2.5

2.6

3.0

3.3

4.0

LF30

1.9

1.8

3.0

3.1

3.6

4.0

4.7

LF35

2.0

2.1

3.5

3.6

4.2

4.7

5.5

LF38

2.2

2.3

3.8

3.9

4.5

5.1

6.0

LF40

2.3

2.4

4.0

4.1

4.8

5.3

6.3

LF45

2.4

2.7

4.5

4.7

5.4

6.0

7.1

LF50

2.6

3.0

5.0

5.2

6.0

6.7

7.9

LF55

2.7

3.3

5.5

5.7

6.6

7.3

8.7

LF60

2.9

3.6

6.0

6.2

7.2

8.0

9.5

LF70

3.0

4.2

7.0

7.2

8.4

9.4

11.1

LF75

3.5

4.5

7.5

7.8

9.0

10.0

11.9

LF80

3.6

4.8

8.0

8.3

9.6

10.7

12.6

LF85

3.8

5.1

8.5

8.8

10.2

11.4

13.4

LF90

3.9

5.4

9.0

9.3

10.8

12.0

14.2

LF120

4.0

7.2

12.0

12.4

14.3

16.0

19.0

LF137

4.3

8.2

13.7

14.2

16.4

18.3

21.7
