Metal Fan Tip

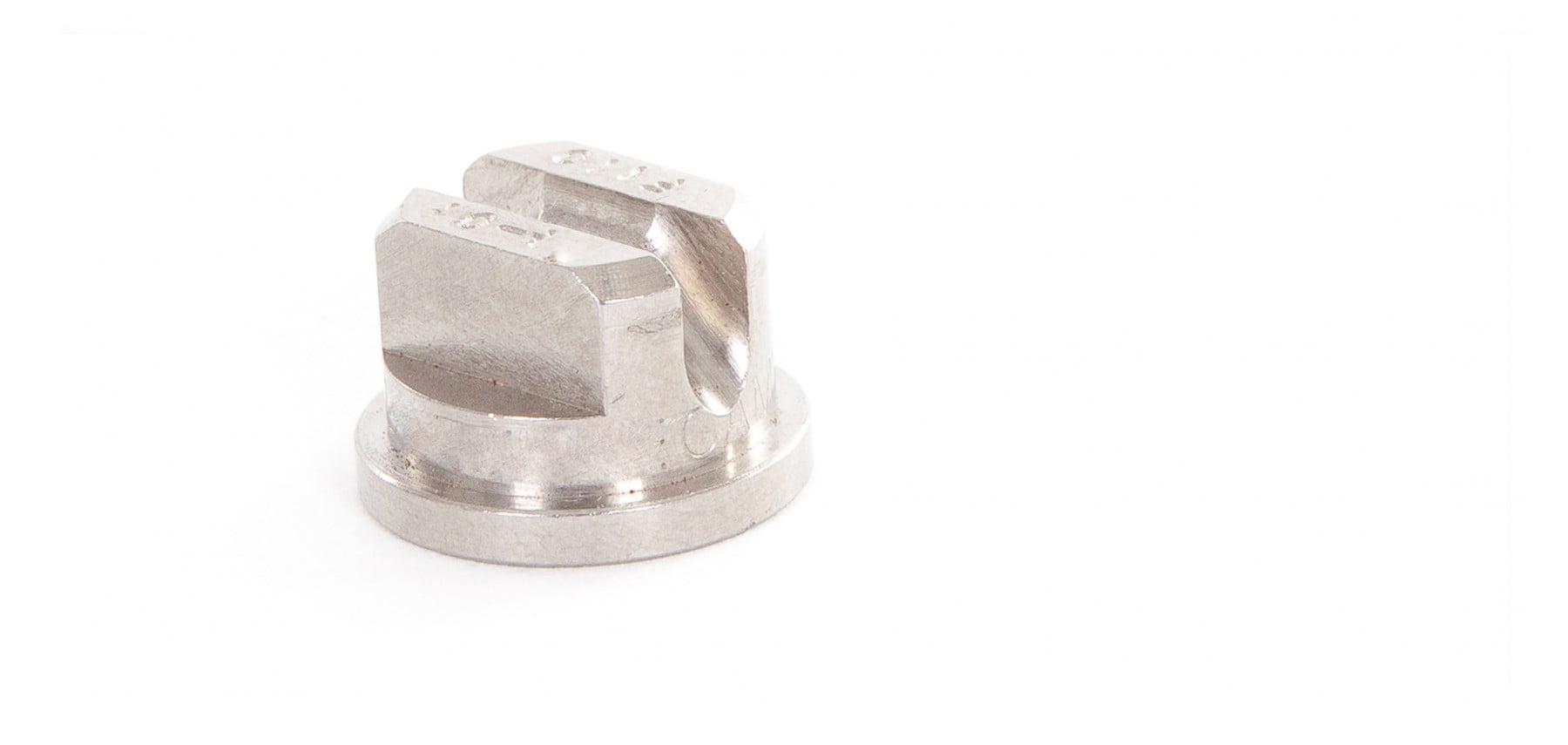

Description

DESCRIPTION

The plastic flat fan nozzle produces a flat fan spray pattern with an even and uniform distribution across the spray width. The flat fan nozzle is a one piece construction with a male threaded connection and hex body for easy installation.

MATERIALS AVAILABLE

PVDF

AVAILABLE SPRAY ANGLES

25°, 40°, 65°, 80°

ORDERING EXAMPLE

Metal Fan Tip – 10-40°

Reviews

There are no reviews yet.

Be the first to review “Metal Fan Tip”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Degreasing & Rinsing
Etching & Rinsing
Parts & Product Washing
Spray Coating
Spray Cooling

FEATURES

Three piece construction
Interchangeable spray tips
Integral strainer available
Male and female connection
Uniform distribution
Small to medium sized droplets
Recessed orifice to protect against damage
Flow rates up to 25 litre/minute

METAL FLAT FAN SPRAY PATTERN WITH EVEN DISTRIBUTION ACROSS THE SPRAY WIDTH

A (mm)

B (mm)

C (mm)

9.65

14.7

12.5

Tip

Reference

Flow (L/min) @ Pressure (bar)

0.5

1.0

2.0

3.0

4.0

5.0

7.0

10.0

20.0

30.0

65

80

110

005E

0.08

0.12

0.16

0.20

0.23

0.26

0.31

0.37

0.52

0.63

0067E

0.11

0.15

0.22

0.27

0.31

0.35

0.41

0.49

0.69

0.85

01E

0.16

0.23

0.33

0.40

0.46

0.52

0.61

0.73

1.03

1.26

015E

0.24

0.35

0.49

0.60

0.69

0.77

0.92

1.10

1.55

1.90

02E

0.33

0.46

0.65

0.80

0.92

1.03

1.22

1.46

2.07

2.53

03E

0.49

0.69

0.98

1.20

1.39

1.55

1.83

2.19

3.10

3.79

04E

0.65

0.92

1.31

1.60

1.85

2.07

2.44

2.92

4.13

5.06

05E

0.82

1.15

1.63

2.00

2.31

2.58

3.06

3.65

5.16

6.32

06E

0.98

1.39

1.96

2.40

2.77

3.10

3.67

4.38

6.20

7.59

08E

1.31

1.85

2.61

3.20

3.70

4.13

4.89

5.84

8.26

10.12

10E

1.63

2.31

3.27

4.00

4.62

5.16

6.11

7.30

10.33

12.65

15E

2.45

3.46

4.90

6.00

6.93

7.75

9.17

10.95

15.49

18.97

20E

3.27

4.62

6.53

8.00

9.24

10.33

12.22

14.61

20.66

25.30
