Metal Full Cone Tip

Description

DESCRIPTION

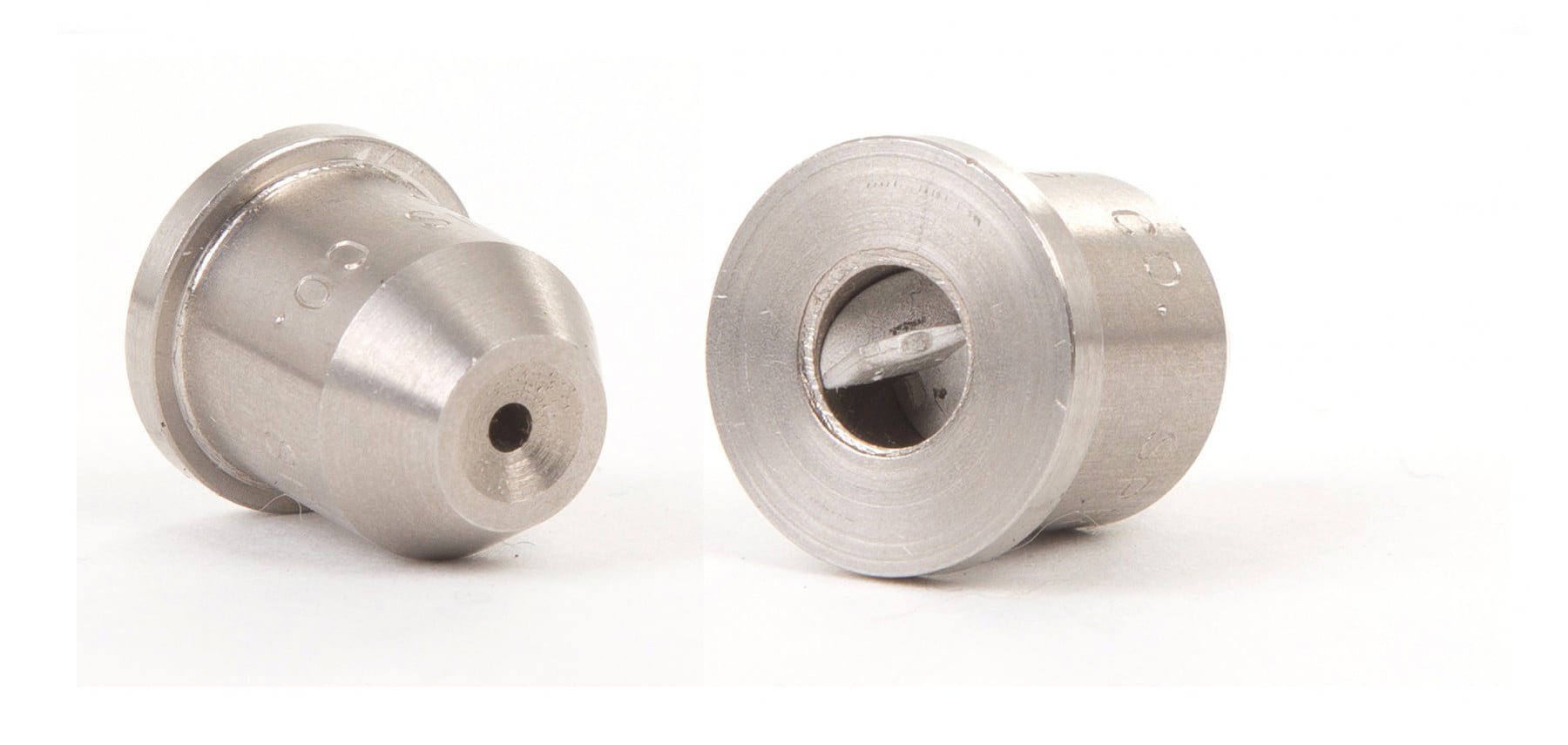

The metal full cone tip produces a full cone spray pattern with uniform distribution. A fixed internal whirl plate generates the uniform coverage. The spray tip has a flange connection and is to be used in conjuction with either threaded nozzle bodies or nozzle pipe clamp holders (details shown in accessories section).

MATERIALS AVAILABLE

Brass
Stainless Steel
Other materials available on request

SPRAY ANGLES AVAILABLE

70°, 110°

ORDERING EXAMPLE

Metal Full Cone Tip Brass 3-110°

Reviews

There are no reviews yet.

Be the first to review “Metal Full Cone Tip”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Rinsing
Cooling
Washing
Gas Scrubbing, Washing, Cooling

FEATURES

Uniform distribution over the spray width
Tips have an internal swirl vane to generate a full cone spray pattern
Tips can be assembled with nozzle bodies, strainer and retaining cap
Full cone spray pattern with round impact area

A (mm)

B (mm)

C (mm)

18.0

14.7

12.5

Tip

Reference

Flow (L/min) @ Pressure (bar)

1.0

2.0

3.0

4.0

5.0

7.0

10.0

1

0.46

0.64

0.79

0.91

1.02

1.21

1.44

2

0.91

1.29

1.58

1.82

2.04

2.41

2.88

3

1.37

1.93

2.37

2.74

3.06

3.62

4.32

3.5

1.60

2.26

2.76

3.19

3.57

4.22

5.06

5

2.28

3.22

3.95

4.56

5.10

6.03

7.21

6.5

2.96

4.19

5.13

5.93

6.63

7.84

9.37

10

4.56

6.45

7.90

9.12

10.19

12.06

14.42

12

5.47

7.74

9.48

10.94

12.23

14.47

17.30
