Orbit Wing

Description

Micro Drop in Duct Humidification

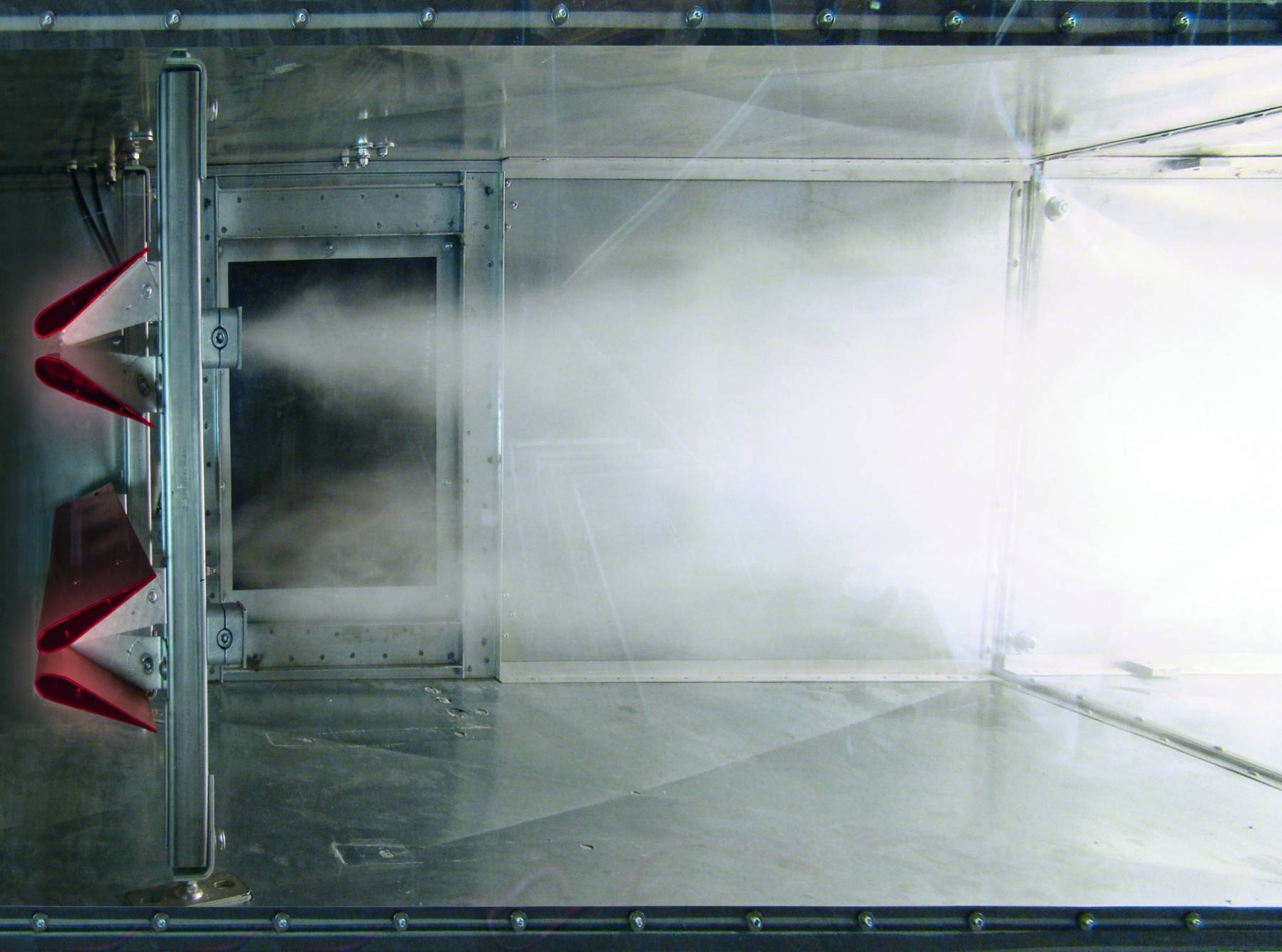

Orbit Wing is easy to integrate into any ventilation or AC system. The room air is humidified by micro drop high performance nozzles directly inside the air duct.

THE PRINCIPLE BEHIND ORBIT WING

“Revolutionary, economical and efficient”

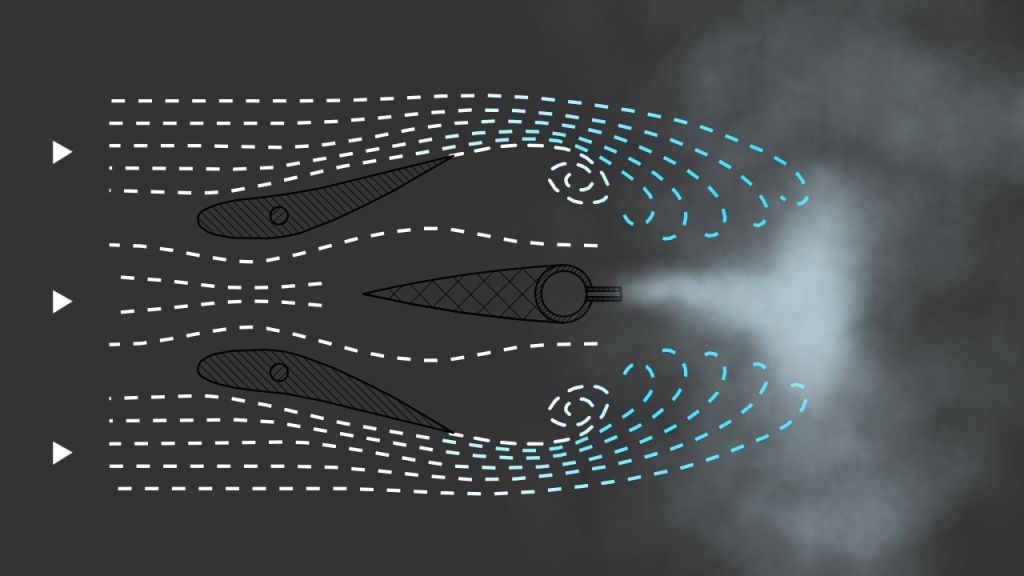

The integrated, patented Orbit Wing flaps ensure smooth turbulence at the separation edge. The droplets travel in a circle and fly further over a shorter distance. This results in a very short evaporation distance.

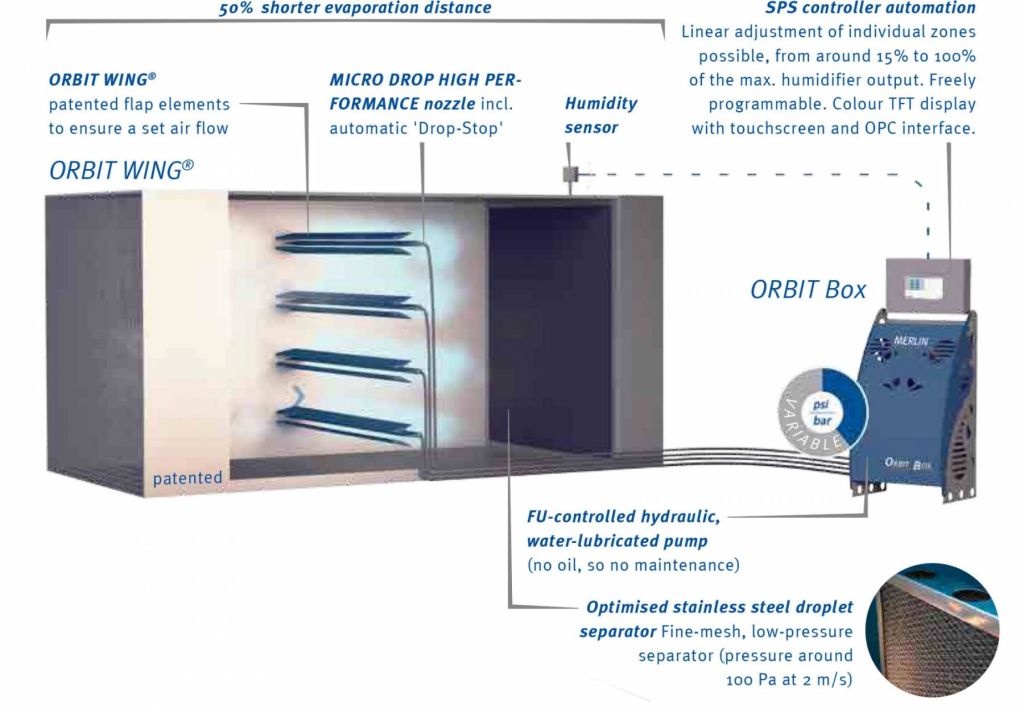

A central control unit is used to regulate the times at which the humidification process starts and stops, while humidity sensors transmit the current air humidity value.



Reviews

There are no reviews yet.

Be the first to review “Orbit Wing”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATIONS:

  • Induct humidification
  • Can be used in Air conditioning systems
  • Can be used in ventilation units
  • Offices
  • Car plants
  • Manufacturing facilities



WingsGrafisch+BG_00046



The orbit wing system offers major energy savings on traditional high cost steam units as only 2.5 to 3 watts of energy are spent to generate 1kg of humidity, meaning the efficiency is around 98% and almost free of condensation.



3 Watts

3-watts

Orbit Wing©



750 Watts

750-watts

Electric Steam Generator





high-pressure

TECHNICAL DETAILS

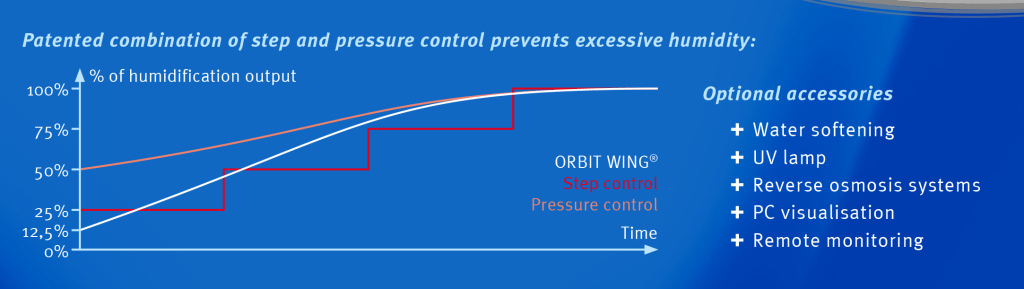

tech-details-graph



TABLE:



Volume of Air m3/h
Max. Humidity Addition 7 gr/mm3:

High-Pressure Pump Type

Humidifation Output l/h

Power kW

Voltage V/Hz

Number of Nozzles (type #2 / 4.5 l/h), pcs

Number of Nozzles (type #3 / 7.2 l/h), pcs

5.000 – 25.000

PAH-2.0

50-220

2,2

400V/50HZ

12-50

10.000 – 45.000

PAH-3.2

90-400

2,2

400V/50HZ

20-90

14.000 – 55.000

PAH-4.0

120-500

2,2

400V/50HZ

30-110

20-70

22.000 – 95.000

PAH-6.3

200-850

2,2

400V/50HZ

40-190

30-110

35.000 – 150.000

PAH-10.0

300-1,350

4,0

400V/50HZ

70-300

40-180
