Plastic Flat Fan Nozzle

Description

DESCRIPTION

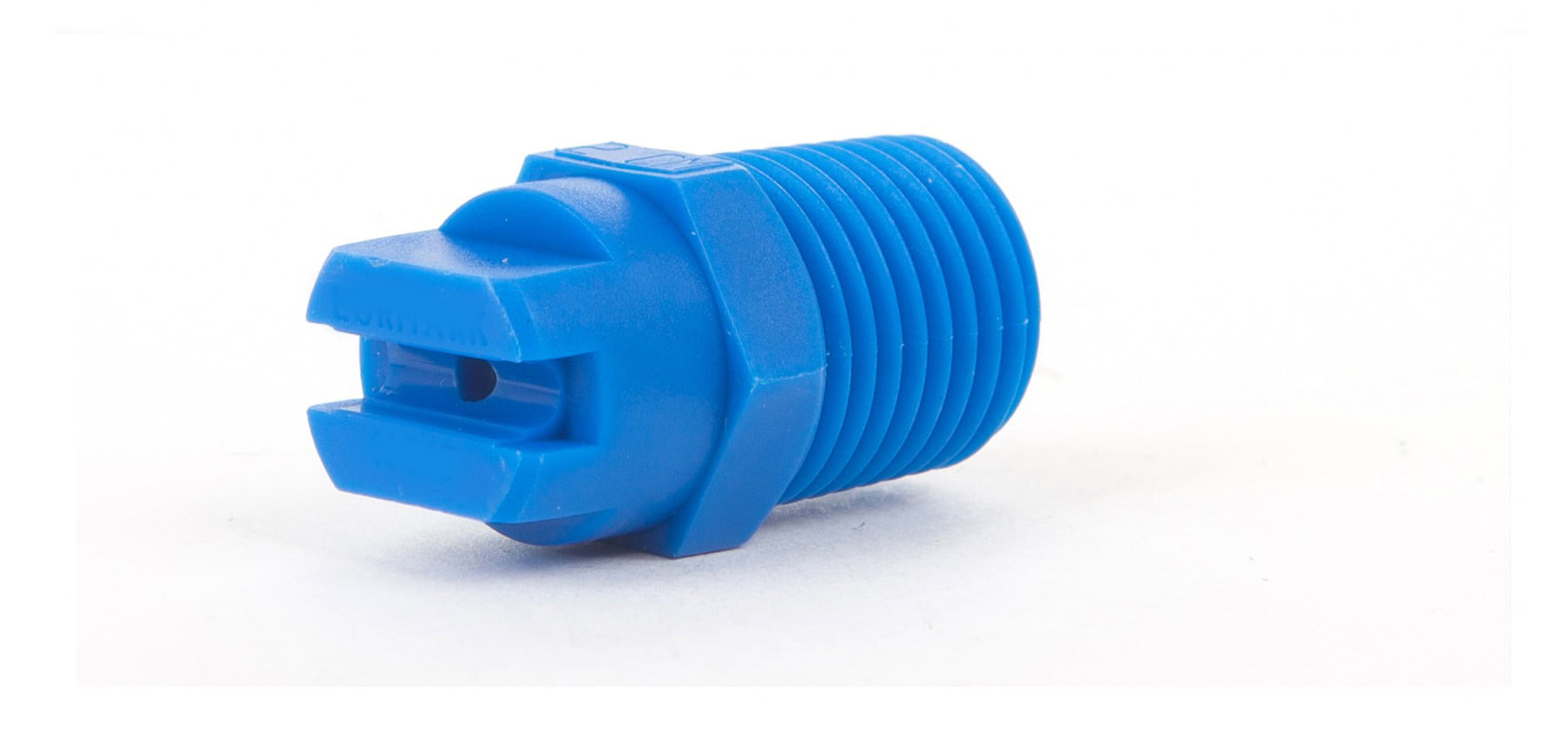

The plastic flat fan nozzle produces a flat fan spray pattern with an even and uniform distribution across the spray width. The flat fan nozzle is a one piece construction with a male threaded connection and hex body for easy installation.

MATERIALS AVAILABLE

PVDF

AVAILABLE SPRAY ANGLES

25°, 40°, 65°, 80°

ORDERING EXAMPLE

Plastic Flat Fan Nozzle – PVDF 1/4″ 10-40°

Reviews

There are no reviews yet.

Be the first to review “Plastic Flat Fan Nozzle”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Industrial Washing Machines
Product Washing
Wheel Washing
Degreasing
Circuit Board Processing
Spray Coating

FEATURES

Flat spray pattern distributes the liquid as a flat or sheet-type spray
Uniform distribution over a wide range of flow rates
Unobstructed flow passage minimises clogging
One piece male threaded design
Hexagon body for quick and easy installation

plastic flat fan produces a flat fan spray with even distribution

PIpe Size BSP

A (mm)

B (mm)

C (mm)

1/8

21.7

12.5

7.36

1/4

26.5

14.0

9.4

Nozzle Reference

Equiv. Orifice Dia (mm)

Flow (L/min) @ Pressure (bar)

Available Spray Angle

0.5

1.0

2.0

3.0

4.0

5.0

7.0

25

40

65

80

02

0.9

0.33

0.46

0.65

0.80

0.92

1.03

1.22

03

1.1

0.49

0.69

0.98

1.20

1.39

1.55

1.83

04

1.3

0.65

0.92

1.31

1.60

1.85

2.07

2.44

05

1.4

0.82

1.15

1.63

2.00

2.31

2.58

3.06

06

1.6

0.98

1.39

1.96

2.40

2.77

3.10

3.67

08

1.8

1.31

1.85

2.61

3.20

3.70

4.13

4.89

10

2.0

1.63

2.31

3.27

4.00

4.62

5.16

6.11

15

2.4

2.45

3.46

4.90

6.00

6.93

7.75

9.17

20

2.8

3.27

4.62

6.53

8.00

9.24

10.33

12.22

30

3.6

4.90

6.93

9.80

12.00

13.86

15.49

18.33

40

4.0

6.53

9.24

13.06

16.00

18.48

20.66

24.44

50

4.4

8.16

11.55

16.33

20.00

23.09

25.82

30.55
