Plastic Full Cone Nozzle

Description

DESCRIPTION

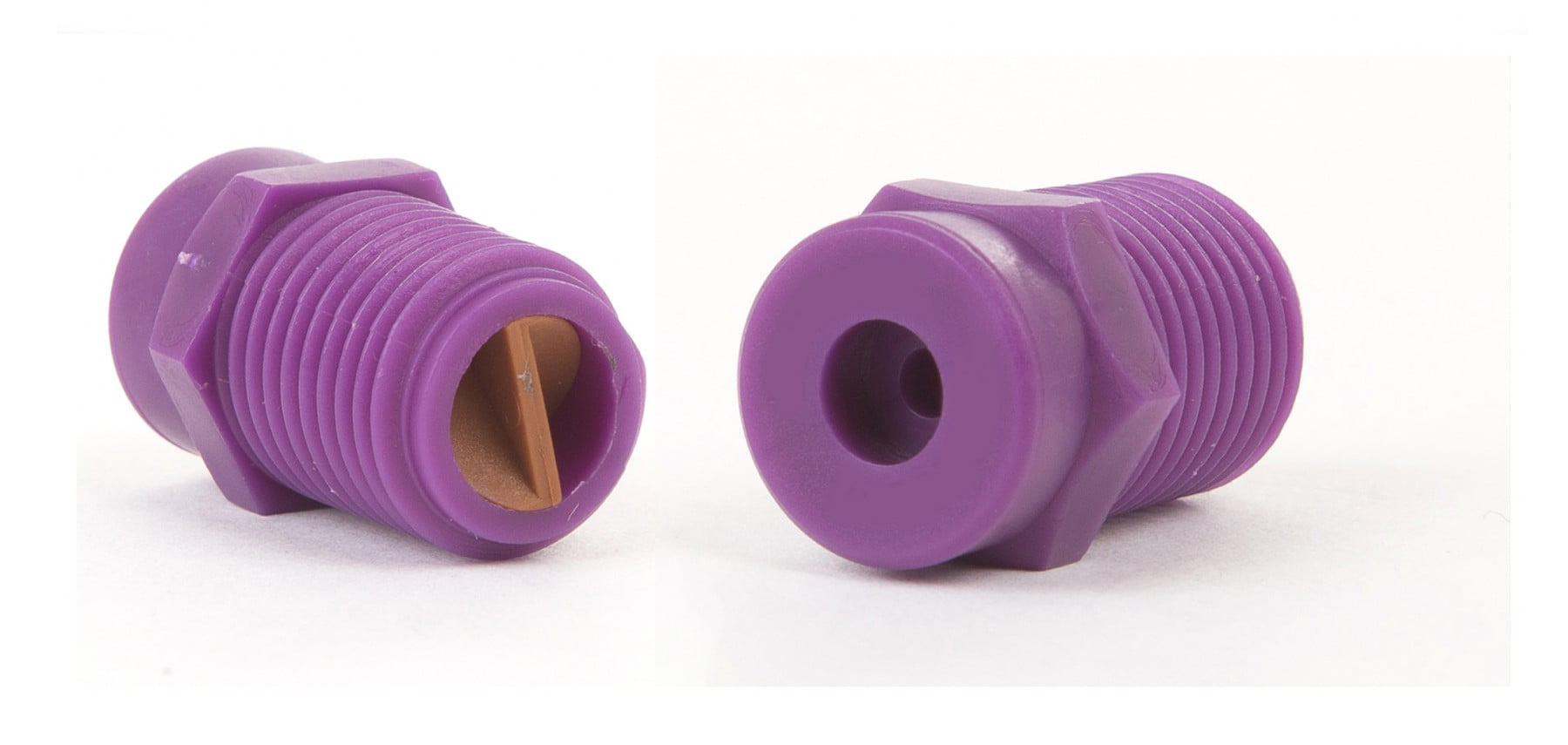

The plastic full cone nozzle produces a full cone spray pattern with uniform distribution. A fixed internal whirl plate generates the uniform coverage. The nozzle has a hex body design for easy installation.

MATERIALS AVAILABLE

PVDF

AVAILABLE SPRAY ANGLES

45°, 50°, 55°, 60°, 70°, 80°, 90°, 120°

ORDERING EXAMPLE

Plastic Full Cone Nozzle PVDF 1/8″ – 2W

Reviews

There are no reviews yet.

Be the first to review “Plastic Full Cone Nozzle”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Cooling
Rinsing
Washing
Food Processing
Gas Scrubbing
PCB Manufacturing
Deaerating

FEATURES

Full Cone Spray Patterns
Uniform distribution over a wide range of flow rates
Low impact
One piece male threaded design
Hexagon body for quick and easy design
Full cone spray pattern with round impact area

PIpe Size BSP

A (mm)

B (mm)

C (mm)

1/8

19.3

12.5

8.8

1/4

22.3

13.76

8.65



Nozzle Ref.

Thread Connection BSP

Approx Orifice Dia (mm)

FLow (L/min) @ Pressur (bar)

Available

Spray Angle

1/8

1/4

0.5

1.0

2.0

3.0

4.0

5.0

7.0

10

1

1.0

0.32

0.45

0.63

0.77

0.89

1.00

1.18

1.41

45

1.3W

1.1

0.41

0.59

0.81

0.98

1.14

1.25

1.48

1.73

90

1.5

1.2

0.47

0.67

0.95

1.16

1.34

1.50

1.77

2.11

55

2

1.4

0.63

0.89

1.26

1.54

1.78

1.99

2.36

2.82

60

2W

1.4

0.63

0.89

1.26

1.54

1.78

1.99

2.36

2.82

90

3

1.6

0.95

1.34

1.89

2.32

2.67

2.99

3.54

4.23

50

3.5

1.7

1.10

1.56

2.21

2.70

3.12

3.49

4.51

5.20

60

3.7W

1.8

1.18

1.76

2.44

2.95

3.41

3.75

4.51

5.20

120

5

2.0

1.58

2.23

3.15

3.86

4.46

4.98

5.90

7.05

80

6.5

2.4

2.05

2.90

4.10

5.02

5.80

6.48

7.67

9.16

50

10

2.8

3.15

4.46

6.30

7.72

8.92

9.97

11.79

14.10

70
