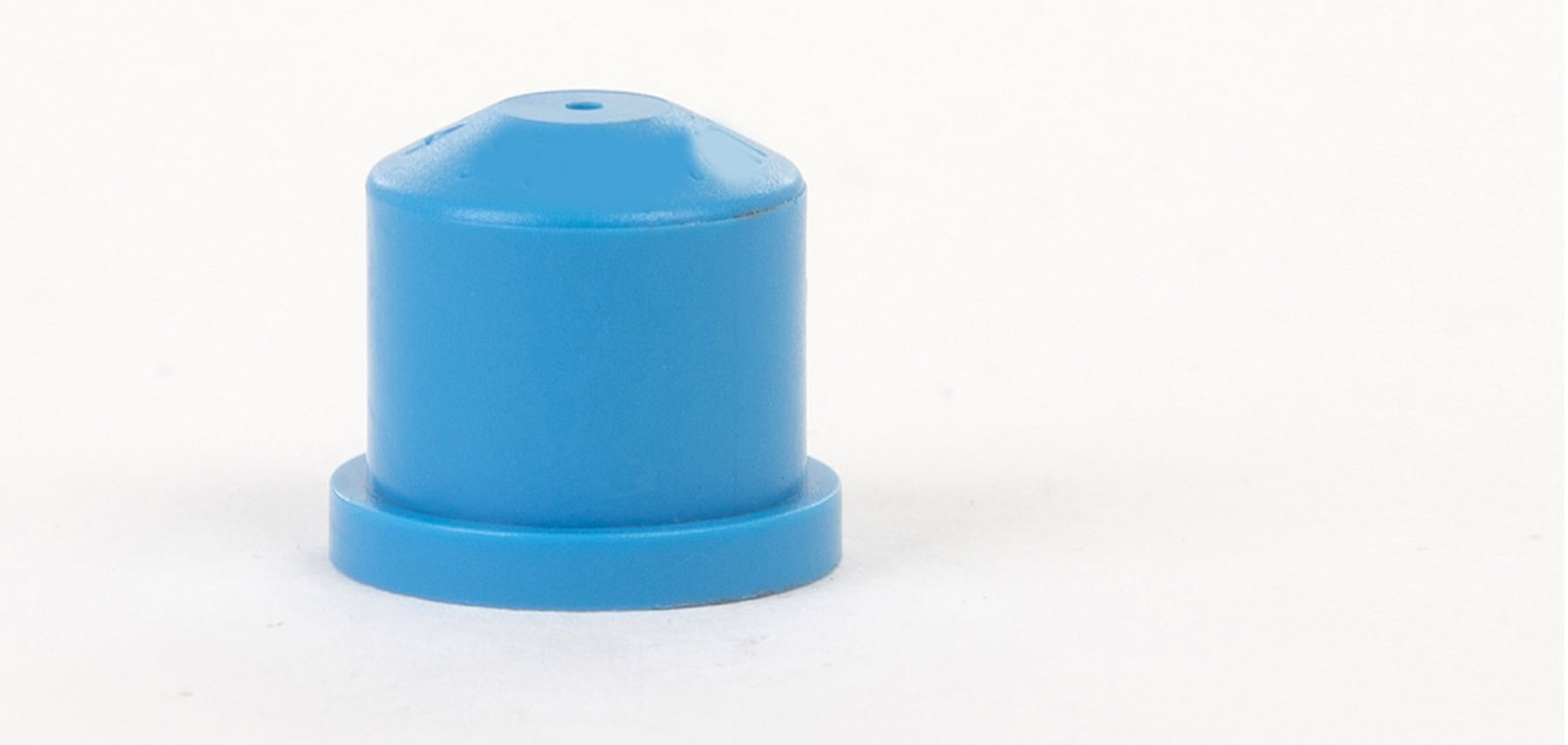

Plastic Full Cone Tip

Description

DESCRIPTION

The plastic full cone tip produces a full cone spray pattern with uniform distribution. A fixed internal whirl plate generates the uniform coverage. The spray tip has a flanged connection and is to be used in conjuction with either threaded nozzle bodies or nozzle pipe clamp holders (details shown in accessories section).

MATERIALS AVAILABLE

Polyacetal

PVDF

SPRAY ANGLES AVAILABLE

80°

ORDERING EXAMPLE

Plastic Full Cone Tip PVDF 04-80°

Reviews

There are no reviews yet.

Be the first to review “Plastic Full Cone Tip”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Rinsing
Cooling
Washing
Odour Control

FEATURES

Uniform distribution over the spray width
Tips have an internal swirl vane to generate a full cone spray pattern
Tips can be assembled with nozzle bodies, strainer and retaining cap
Full cone spray pattern with round impact area

A (mm)

B (mm)

C (mm)

12.0

14.7

12.5

Tip

Reference

Flow (L/min) @ Pressure (bar)

Spray Angle @ 3 bar

1.0

2.0

3.0

4.0

5.0

7.0

10.0

80

02

0.74

1.05

1.29

1.49

1.66

1.97

2.35

03

1.12

1.58

1.93

2.23

2.5

2.95

3.53

04

1.49

2.11

2.58

2.98

3.33

3.94

4.71

05

1.86

2.63

3.22

3.72

4.16

4.92

5.89

06

2.33

3.16

3.87

4.47

4.99

5.91

7.06
