Roll Cooling Nozzle

Description

DESCRIPTION

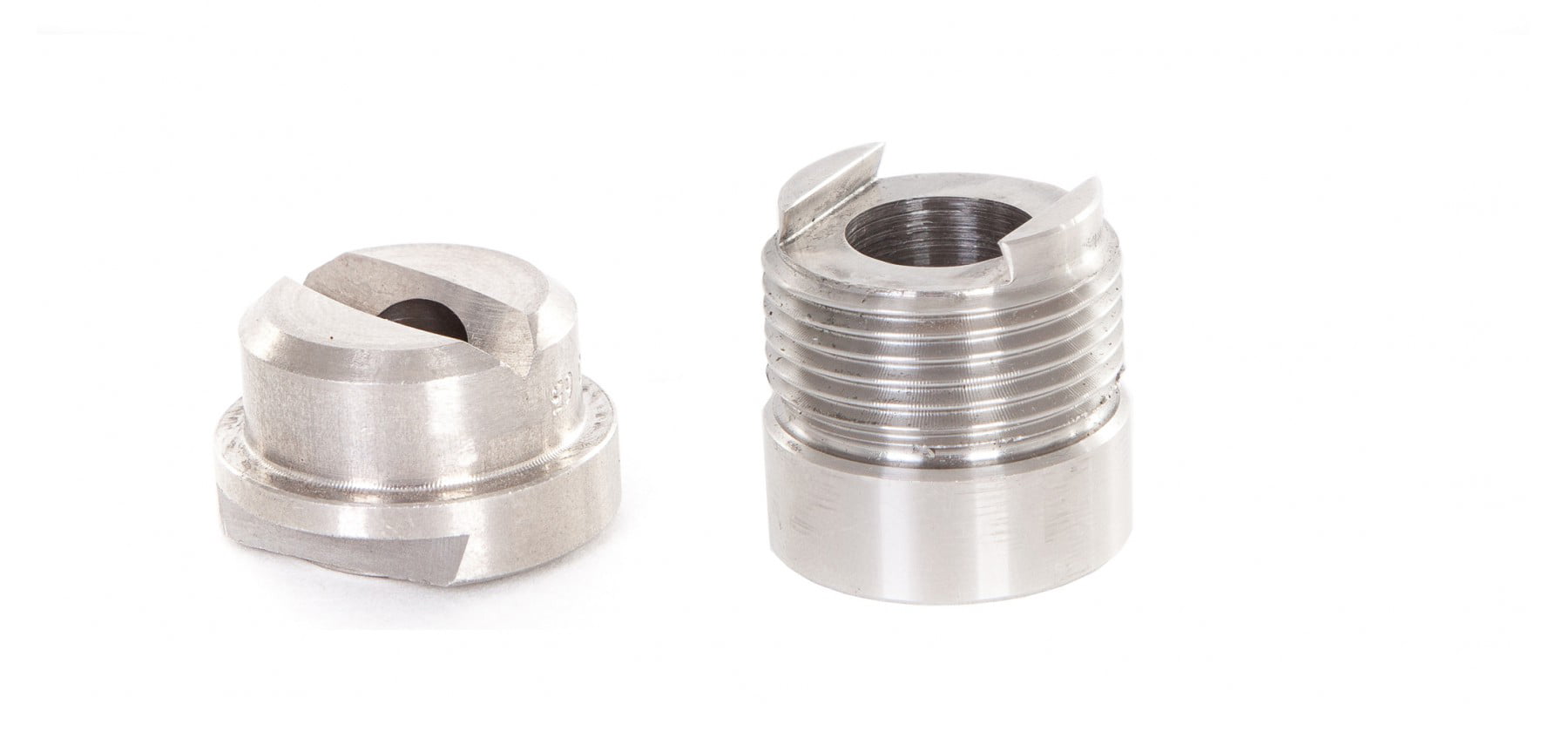

The roll cooling nozzle is a self-aligning nozzle assembly, this ensures the spray performance remains consistent after replacement or maintenance. In just a matter of seconds, nozzle tips can be changed. Simply loosen the retaining cap, replace the nozzle tip and replace the cap to secure.

The spray pattern is offset by 15 degrees from the dovetail axis to ensure trouble free performance. Nozzle bodies are welded to the spray headers and as the complete unit is Stainless Steel, this nozzle type is ideal for high temperature applications.

MATERIALS AVAILABLE

Brass
Stainless Steel

SPRAY ANGLES AVAILABLE

15° to 110°

ORDERING EXAMPLE

Roll Cooling Nozzle 10-65 Stainless Steel

Reviews

There are no reviews yet.

Be the first to review “Roll Cooling Nozzle”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Roll Cooling

FEATURES

Produces a uniform, flat spray without hard edges
Tapered edges of pattern allow overlapping for even distribution
Orifice is offset 15 degree to axis of dovetail
Dovetail connection for consistent alignment

Self aligning roll cooling nozzle

A (mm)

B (mm)

C (mm)

27

31.8

37.6

Nozzle Number

Equiv Orifice Dia. (mm)

Flow rate in litres/min at Bar.G

0.7

1.0

2.0

3.0

5

7

10

15

20

10

2.0

1.92

2.28

3.22

3.93

5.1

6.0

7.2

8.84

10.2

12.5

2.2

2.30

2.90

4.00

4.97

6.5

7.55

9.15

11.15

12.8

15

2.4

2.84

3.44

4.92

6.16

7.9

9.2

10.7

13.20

15.2

20

2.8

3.80

4.47

6.26

8.05

10.2

12.4

14.7

17.70

20.4

25

3.1

4.60

5.80

8.00

9.94

13.0

15.1

18.3

22.30

25.5

30

3.6

6.00

6.70

9.80

11.84

15.3

17.9

21.4

26.50

30.4

40

4.0

7.80

9.40

13.00

15.62

20.8

24.3

28.6

35.40

41.1

50

4.4

9.60

11.60

16.10

19.89

25.4

30.2

36.2

44.10

51.0

60

4.8

11.40

13.90

19.20

23.67

30.5

36.2

43.4

52.90

61.2

70

5.2

13.30

16.10

22.80

27.46

36.1

42.6

50.5

61.80

71.5

80

5.6

15.10

18.80

25.50

31.72

41.2

48.1

57.2

70.60

81.3

100

6.4

19.20

22.80

31.70

39.30

50.9

60.5

72.4

88.40

102

120

7.1

22.90

27.30

38.90

47.40

61.1

72.4

86.3

106

122

150

7.5

28.80

34.40

48.30

59.19

76.8

90.2

108

132

153

200

8.8

38.00

48.70

64.40

79.07

102

120

144

175

204
