Siphon Fed Narrow Round Spray

Description

DESCRIPTION

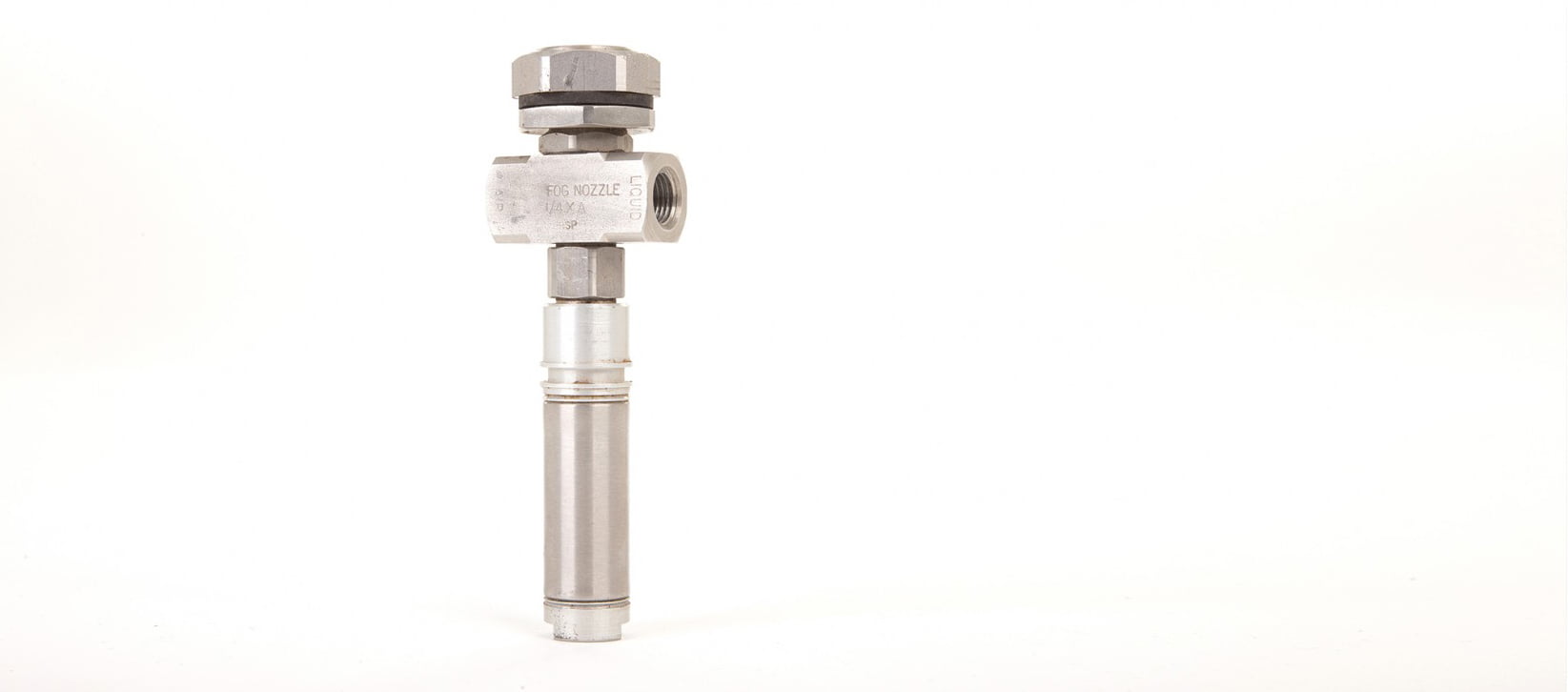

The Siphon Fed Narrow Round Spray produces a full cone spray pattern. Compressed air and liquid mixes and atomises within the spray nozzle body to create a fine mist spray with a short forward spray projection. The nozzle has a separate air and liquid connection being 1/4″ female.

MATERIALS AVAILABLE

Nickel Plated Brass
Stainless Steel

SPRAY ANGLES AVAILABLE

20°

ORDERING EXAMPLE

Siphon Fed Narrow Round Spray 1/4″ Stainless Steel 250

Reviews

There are no reviews yet.

Be the first to review “Siphon Fed Narrow Round Spray”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Humidification
Cooling

FEATURES

Lowest flow available
Very fine atomisation
Narrow Spray Angle 20 degree
Full cone pattern
Short forward projection

OPTIONAL ACCESSORIES

Manual Clean-out needle
Automatic Clean-out and shut-off valve

AIR ATOMISING SPRAY NOZZLE

Nozzle

Number

Atomizing Air

Liquid Capacity (Litres Per Hour)

Spray Dimensions at 200mm

Siphon Height

1.5 Bar Liquid

2.0 Bar Liquid

Air (Bar)

Air Capacity

Air (bar)

l/h

Nm3/h

100mm

200mm

300mm

600mm

900mm

Air

Spray Angle A

B (mm)

D (m)

050

0.7

0.66

1.5

1.3

1.1

0.9

0.7

0.5

0.7

18

280

1.8

1.5

1.02

1.8

1.8

1.5

1.3

1.2

1.1

0.6

1.5

18

280

1.9

3.0

1.68

2.1

2.1

1.7

1.5

1.4

1.3

1.1

0.8

3.0

18

300

2.3

4.0

2.16

2.2

2.2

1.8

1.6

1.5

1.4

1.2

0.9

4.0

19

360

2.6

150

0.7

0.78

2.4

2.1

1.7

1.5

1.2

0.8

0.7

18

300

2.1

1.5

1.20

2.8

2.5

2.4

2.1

1.9

1.6

0.9

1.5

18

330

2.3

3.0

1.92

3.4

3.1

2.9

2.6

2.6

2.4

1.7

1.1

3.0

18

380

2.6

4.0

2.46

3.7

3.4

3.3

3.1

2.9

2.7

2.1

1.5

4.0

19

430

3.0

200

0.7

1.38

2.5

2.3

2.0

1.6

1.4

1.1

0.7

18

300

2.4

1.5

2.16

2.9

2.8

2.5

2.2

2.0

1.7

0.9

1.5

18

330

2.7

3.0

3.48

3.4

3.3

3.2

2.9

2.8

2.5

1.9

1.2

3.0

19

380

3.4

4.0

4.44

3.7

3.6

3.5

3.4

3.3

3.0

2.5

2.0

4.0

20

430

4.0

250

0.7

1.14

4.5

4.0

3.4

2.1

1.8

1.4

0.7

21

380

3.0

1.5

1.86

5.3

4.9

4.4

3.5

2.9

2.7

1.8

1.5

21

410

3.4

3.0

3.00

6.0

5.6

5.0

4.4

4.0

3.4

2.4

0.5

3.0

21

460

4.0

4.0

3.90

5.7

5.4

5.0

4.2

3.9

3.5

2.8

0.1

4.0

22

510

4.6

400

1.5

3.48

22.0

19.9

16.3

12.3

10.5

8.3

2.8

1.5

17

460

3.7

3.0

5.28

25.0

23.0

3.8

16.7

14.2

11.5

6.4

2.8

3.0

18

510

4.3

4.0

6.66

26.0

24.0

21.0

18.4

15.7

12.9

7.9

4.5

4.0

18

530

4.9

0.8

8.82

26.0

24.0

22.0

19.7

17.0

14.6

9.8

6.1

5.6

19

580

5.5

450

2.0

8.64

27.0

22.0

16.8

2.0

20

510

6.7

3.0

11.40

30.0

26.0

21.0

3.0

20

530

7.0

4.0

14.40

43.0

40.0

31.0

28.0

23.0

11.0

4.0

21

580

7.6

5.6

16.90

44.0

42.0

39.0

31.0

28.0

24.0

16.7

8.3

5.6

22

630

8.2
