Small Material Pressure Tanks

Description

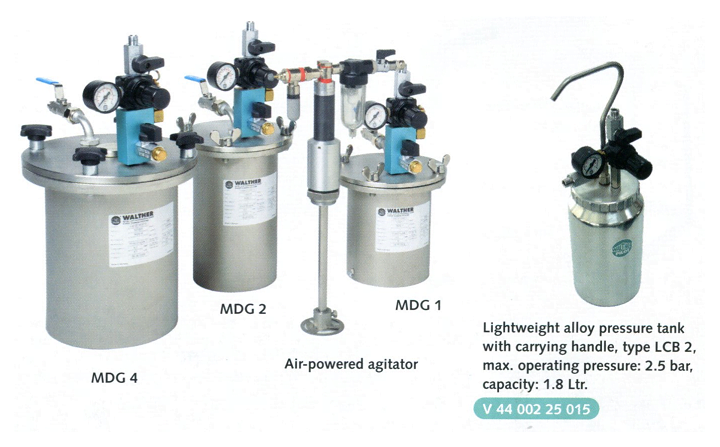

Components in a small material pressure tank

  1. Stainless steel container with lid
  2. Wing screws or star grip screws
  3. Air inlet fitting assembly with pressure regulator, pressure gauge, safety valve, and venting
  4. Pipe to material outlet and material outlet ball valve.



smallpres-bott



Reviews

There are no reviews yet.

Be the first to review “Small Material Pressure Tanks”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATIONS

FEATURES

Small Material Pressure Tanks, Stainless Steel



TYPE

MAX PRESSURE

CAPACITY APPROX

VERSION

PART NO.

MDG 1

3 Bar

1.1 Liters

Without agitator

V 40 121 30 013

6 Bar

1.1 Liters

Without agitator

V 40 121 60 013

6 Bar

1.1 Liters

With air-powered agitator (0.16 kW, 400 rpm)

V 40 121 60 213

MDG 2

3 Bar

1.8 Liters

Without agitator

V 44 021 30 013

3 Bar

1.8 Liters

With air-powered agitator (0.16 kW, 400 rpm)

V 44 021 30 213

6 Bar

1.8 Liters

Without agitator

V 44 021 60 013

6 Bar

1.8 Liters

With air-powered agitator (0.16 kW, 400 rpm)

V 44 021 60 213

MDG 3

3 Bar

2.5 Liters

Without agitator, suitable for use with 1 liter containers

V 44 131 30 013

3 Bar

2.5 Liters

With air-powered agitator (0.16 kW, 400 rpm)

V 44 131 30 213

6 Bar

2.5 Liters

Without agitator

V 44 131 60 013

6 Bar

2.5 Liters

With air-powered agitator (0.16 kW, 400 rpm)

V 44 131 60 213

MDG 4

4 Bar

3.1 Liters

Without agitator

V 40 251 40 013

4 Bar

3.1 Liters

With manual agitator

V 40 251 40 113

4 Bar

3.1 Liters

With air-powered agitator (0.16 kW, 400 rpm)

V 40 251 40 213

MDG 8

4 Bar

6.4 Liters

Without agitator

V 44 211 40 013

4 Bar

6.4 Liters

With manual agitator

V 44 211 40 113

4 Bar

6.4 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 211 40 213

4 Bar

6.4 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 211 40 313



Small Material Pressure Tanks, Galvanized



TYPE

MAX PRESSURE

CAPACITY APPROX

VERSION

PART NO.

MDG 4

4 Bar

3.1 Liters

Without agitator

V 40 251 40 012

4 Bar

3.1 Liters

With manual agitator

V 40 251 40 112

4 Bar

3.1 Liters

With air-powered agitator (0.16 kW, 400 rpm)

V 40 251 40 212

MDG 8

4 Bar

6.4 Liters

Without agitator

V 44 211 40 012

4 Bar

6.4 Liters

With manual agitator

V 44 211 40 112

4 Bar

6.4 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 211 40 212

4 Bar

6.4 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 211 40 312
