Standard Material Pressure Tank

Description

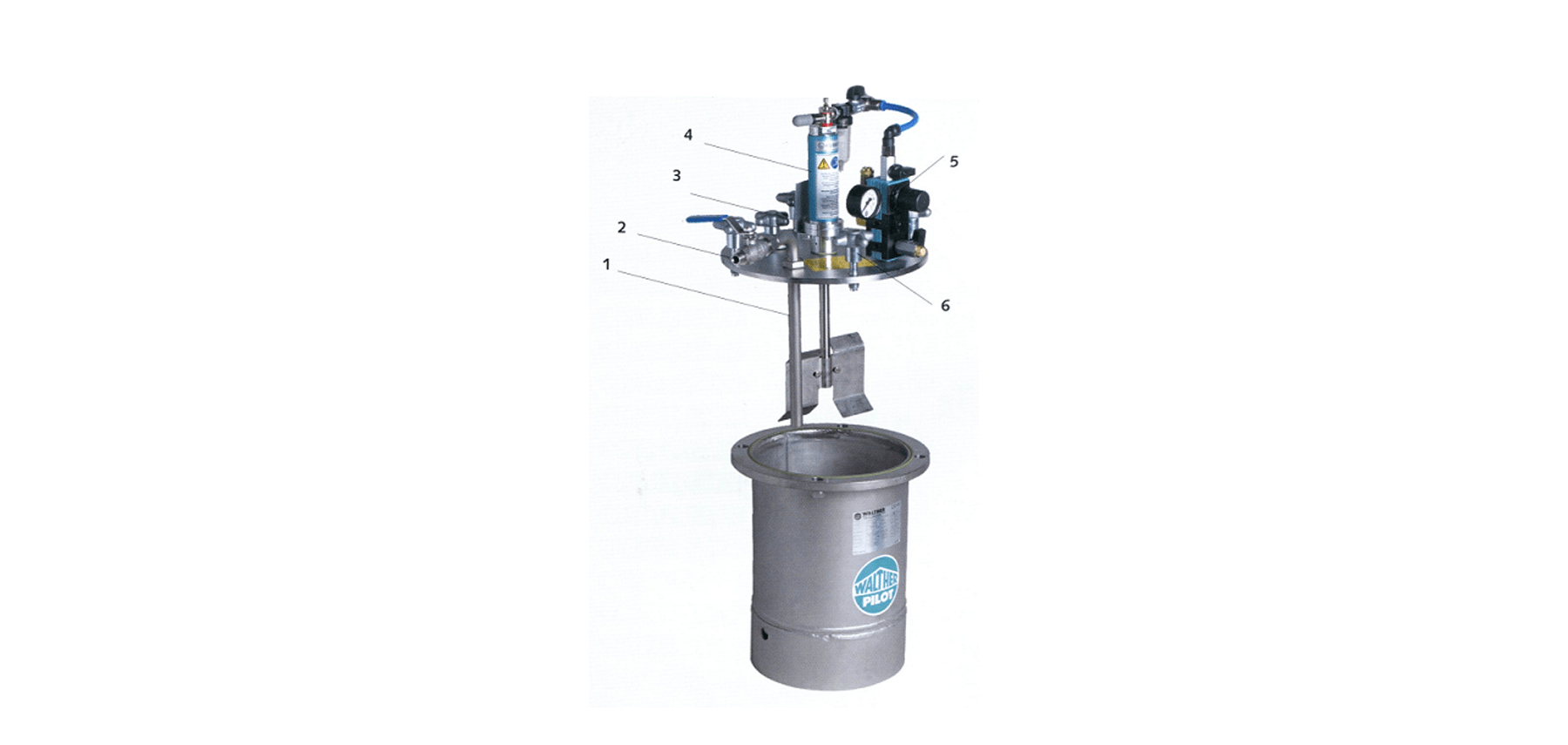

Components in a standard material pressure tank

  1. Pipe to material outlet
  2. Material outlet ball valve
  3. Material inlet (MDG 12 and above)
  4. Optional agitator
  5. Air inlet fitting assembly with pressure regulator, pressure gauge, safety valve, and venting
  6. Star grip screws



stdmaterial-bott



Reviews

There are no reviews yet.

Be the first to review “Standard Material Pressure Tank”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATIONS

FEATURES

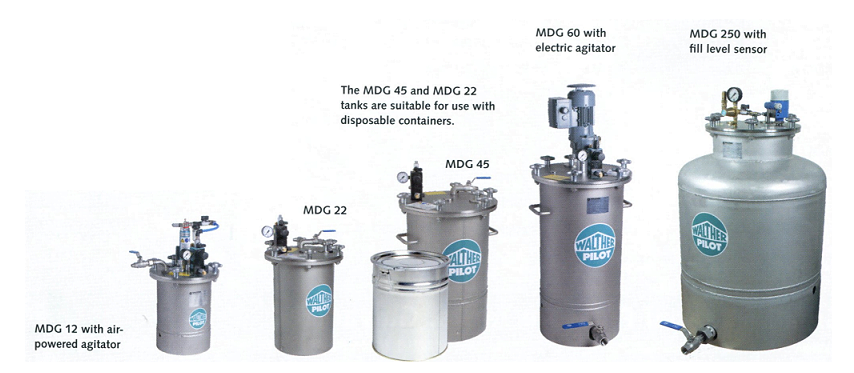

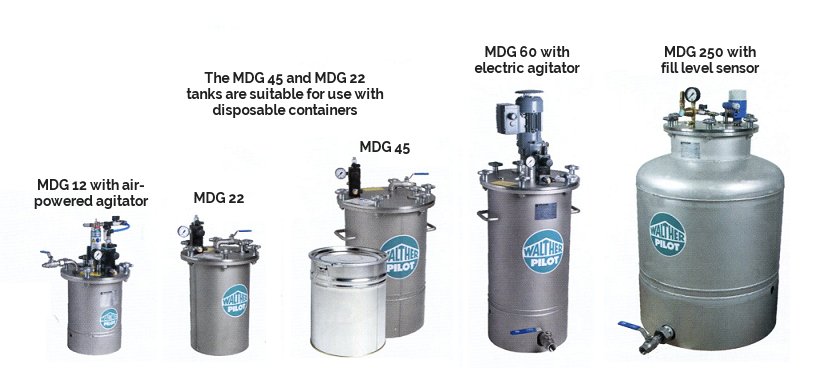

Material Pressure Tanks – Galvanized or Stainless Steel



TYPE

MAX PRESSURE

CAPACITY APPROX

VERSION

PART NO. (Galvanized)

PART NO. (Stainless Steel)

MDG 12

6 Bar

11.8 Liters

Without agitator

V 44 221 60 012

V 44 221 60 013

6 Bar

11.8 Liters

With manual agitator

V 44 221 60 112

V 44 221 60 113

6 Bar

11.8 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 221 60 212

V 44 221 60 213

6 Bar

11.8 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 221 60 312

V 44 221 60 313

MDG 22¹

6 Bar

19.5 Liters

Without agitator

V 44 321 60 012

V 44 321 60 013

6 Bar

19.5 Liters

With manual agitator

V 44 321 60 112

V 44 321 60 113

6 Bar

19.5 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 321 60 212

V 44 321 60 213

6 Bar

19.5 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 321 60 312

V 44 321 60 313

MDG 24

6 Bar

23.5 Liters

Without agitator

V 44 231 60 012

V 44 231 60 013

6 Bar

23.5 Liters

With manual agitator

V 44 231 60 112

V 44 231 60 113

6 Bar

23.5 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 231 60 212

V 44 231 60 213

6 Bar

23.5 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 231 60 312

V 44 231 60 313

MDG 45²

4 Bar

42.5 Liters

Without agitator

V 44 241 40 012

V 44 241 40 013

4 Bar

42.5 Liters

With manual agitator

V 44 241 40 112

V 44 241 40 113

4 Bar

42.5 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 241 40 212

V 44 241 40 213

4 Bar

42.5 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 241 40 312

V 44 241 40 313

MDG 45²

6 Bar

42.5 Liters

Without agitator

V 44 241 60 012

V 44 241 60 013

6 Bar

42.5 Liters

With manual agitator

V 44 241 60 112

V 44 241 60 113

6 Bar

42.5 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 241 60 212

V 44 241 60 213

6 Bar

42.5 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 241 60 312

V 44 241 60 313

MDG 60

3 Bar

58.5 Liters

Without agitator

V 44 251 30 012

V 44 251 30 013

3 Bar

58.5 Liters

With manual agitator

V 44 251 30 112

V 44 251 30 113

3 Bar

58.5 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 251 30 212

V 44 251 30 213

3 Bar

58.5 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 251 30 312

V 44 251 30 313

MDG 60

6 Bar

58.5 Liters

Without agitator

V 44 251 60 012

V 44 251 60 013

6 Bar

58.5 Liters

With manual agitator

V 44 251 60 112

V 44 251 60 113

6 Bar

58.5 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 251 60 212

V 44 251 60 213

6 Bar

58.5 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 251 60 312

V 44 251 60 313

MDG 90

2 Bar

90 Liters

Without agitator

V 44 261 20 012

V 44 261 20 013

2 Bar

90 Liters

With manual agitator

V 44 261 20 112

V 44 261 20 113

2 Bar

90 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 261 20 212

V 44 261 20 213

2 Bar

90 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 261 20 312

V 44 261 20 313

MDG 90

6 Bar

90 Liters

Without agitator

V 44 261 60 012

V 44 261 60 013

6 Bar

90 Liters

With manual agitator

V 44 261 60 112

V 44 261 60 113

6 Bar

90 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 261 60 212

V 44 261 60 213

6 Bar

90 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 261 60 312

V 44 261 60 313

MDG 120

1.5 Bar

120 Liters

Without agitator

V 44 271 15 012

V 44 271 15 013

1.5 Bar

120 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 271 15 212

V 44 271 15 213

1.5 Bar

120 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 271 15 312

V 44 271 15 313

MDG 120

6 Bar

120 Liters

Without agitator

V 44 271 60 012

V 44 271 60 013

6 Bar

120 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 271 60 212

V 44 271 60 213

6 Bar

120 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 271 60 312

V 44 271 60 313

MDG 250

6 Bar

248 Liters

Without agitator

V 44 281 60 012

V 44 281 60 013

6 Bar

248 Liters

With air-powered agitator (0.36 kW, 200 rpm)

V 44 281 60 212

V 44 281 60 213

6 Bar

248 Liters

With electric agitator (0.12 kW, 60 rpm)

V 44 281 60 312

V 44 281 60 313



¹ For use with containers 10/15 liters – please check container sizes!
² For use with 30-liter containers
