Tanks and Vessels up to 20 Mtr

Description

DESCRIPTION

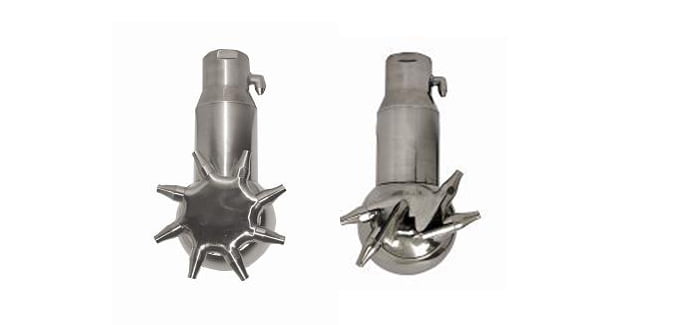

For cleaning large tanks and vessels we supply a range of gear driven tank cleaning heads which combine high performance cleaning efficiency with extended operating life and reduced life cycle costs.

This range of nozzles are ideal for cleaning tanks where the product is difficult to clean, and where high impact cleaning is needed. Its limited moving parts ensure extended operating life and reduced down time.

Nozzles are available in the following versions:

  • 2, 4 or 8 Nozzles
  • Variable Cycle Times
  • Male or Female Connection
  • 360° Wash Patterns
  • Bespoke one off designs

Should you wish to discuss your requirements or would like to arrange a site visit, please contact our office to speak to one of our sales application engineers.

Reviews

There are no reviews yet.

Be the first to review “Tanks and Vessels up to 20 Mtr”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

FEATURES

Operating consumption of water chemicals and time
Limited minimum parts
Self cleaning and lubricating
High impact jets, orbital wash pattern



ADVANTAGES

Reduced operating costs Limited minimum parts
Reduced lifecycle costs Self cleaning and lubricating
No process contamination
High efficiency cleaning process

ROTATING SPRAY HEADS FOR TANKS AND VESSELS UPTO 20 METRES

Supply Pressure 4 x 5 mm 2 x 6 mm 2 x 7 mm 4 x 8 mm 2 x 10 mm 2 x 12.5 mm
Flow m³/hr Jet Length Flow m³/hr Jet Length Flow m³/hr Jet Length Flow m³/hr Jet Length Flow m³/hr Jet Length Flow m³/hr Jet Length
5 9.4 4.9 6.3 6.5 8.1 7.8 20.0 9.0 17.4 13.0 26.4 13.0
6 10.4 5.5 7.1 7.1 9.2 8.5 22.0 9.9 19.2 14.5 28.8 15.0
7 11.1 6.4 7.8 8.0 10.0 9.5 23.6 10.6 21.0 16.0 31.2 17.0
8 11.7 7.3 8.3 9.2 10.8 10.4 25.0 11.2 22.0 17.5 33.0 18.5
9 12.1 8.5 8.8 10.2 11.5 11.5 26.4 12.2 23.4 19.0 34.8 20.0
10 9.0 9.0 9.2 11.5 12.0 12.3 27.5 13.0 24.2 20.0 35.5 21.0
