022H Ultrasonic Spray Nozzle

Finest Atomisation With A Wide Spray Pattern Of Ultra-Fine Spray Droplets

022H Ultrasonic Spray Nozzle

Description....

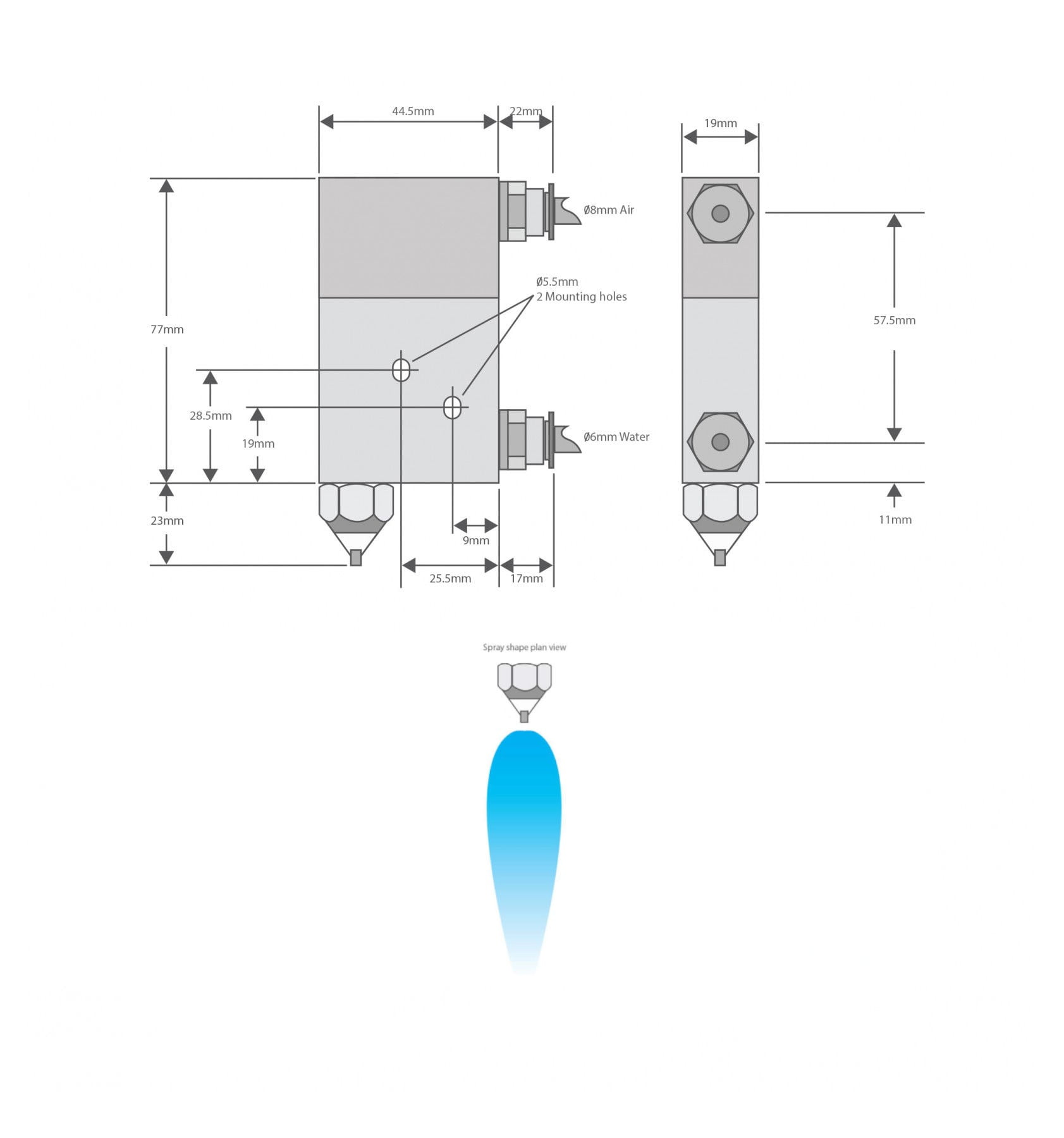

Compressed air and liquid mixes within the resonator cap external to the nozzle and creates a wide spray pattern of ultra-fine spray droplets nominally 1-5 micron. The nozzle assembly offers both non-drip and self-cleaning functions to this nozzle range. The nozzle has a separate air and liquid connection being 1/8″ female.

MATERIALS AVAILABLE

Stainless Steel

SPRAY ANGLES AVAILABLE

Straight & Fan

ORDERING EXAMPLE

022H Ultrasonic Spray Assembly

Features
  • Consistent atomisation
  • Low water consumption
  • 2 micron mean droplet size
  • Self-cleaning
  • Non-drip
  • Low running cost
  • Straight Spray

ultrasonic-fogging-nozzle-022h

Case Study

Pharmaceutical CIP

"Shower Gel & cosmetic creams manufacturer improves process cleanliness & lost production through less downtime with automated clean in place system."
