Flat Fan Air Nozzle

Multi-channel flat fan nozzles with significantly reduced noise levels

Flat Fan Air Nozzle

Description....

The flat fan air nozzles produce a flat fan shaped air pattern, replacing open ended pipe while offering major advantages in efficiency & performance.

Compressed air is required for blowing off, drying, cooling, conveying and many more applications.

By using a dedicated air nozzle rather than relying on open ended pipe, it means you not only greatly reduce and control the amount of expensive compressed air used, but noise levels are reduced significantly. By channelling the air through multi-channel air nozzles you also increase the blowing power.

This performance is based on partitioning the air inflow into single air jets. These separate orifices are arranged to ensure optimum flow conditions, provide a uniform, straight and powerful overall air jet.

Materials Available

PVDF, Aluminium

Ordering Example

Plastic Flat Fan Air Nozzle – 1/4″

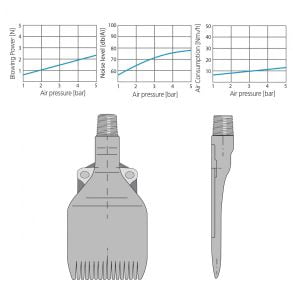

flat-fan-air-page-1

Applications

Blowing off/Out
Cleaning
Drying
Cooling
Conveying with air

Features

1/4″ BSP Male Connection Reduction of noise levels of up to 12 dB
Low service air pressure with the same blowing power
Low air consumption
Low operating costs
High blowing power
