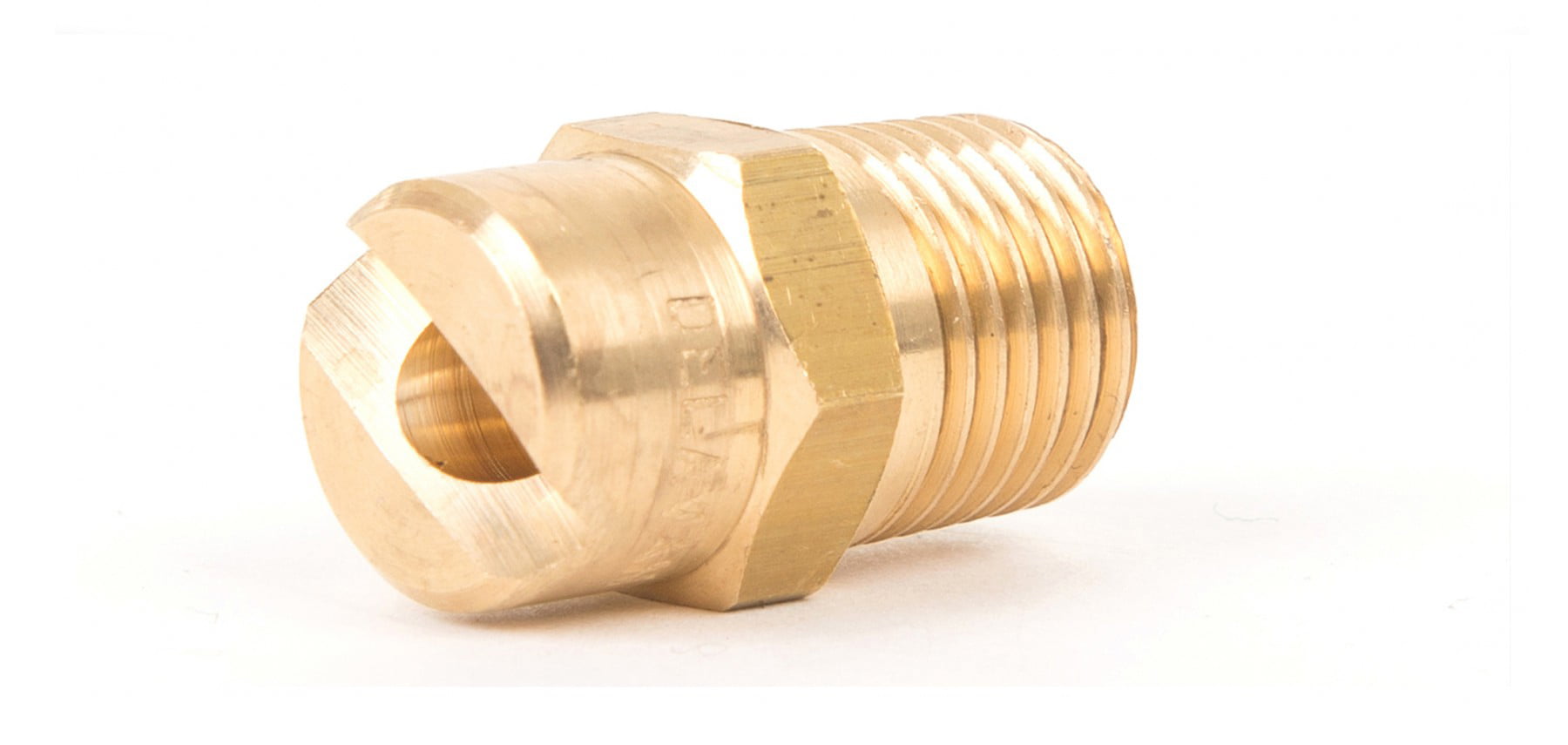

The metal flat fan nozzle produces a flat fan spray pattern with an even and uniform distribution across the spray width. The flat fan nozzle is a one piece construction with a male threaded connection and hex body for easy installation.
Brass
Stainless Steel
Other materials available on request
0°, 15°, 25°,40°, 65°, 80°, 110°
Metal Flat Fan Nozzle – Stainless Steel 1/4″ 20-65°
Industrial Washing Machines
Product Washing
Wheel Washing
Degreasing
Circuit Board Processing
Spray Coating
Flat spray pattern distributes the liquid as a flat or sheet-type spray
Uniform distribution over a wide range of flow rates
Unobstructed flow passage minimises clogging
One piece male threaded design
Hexagon body for quick and easy installation
|
Nozzle Reference |
Thread Connection BSP |
FLow (L/min) @ Pressur (bar) |
Available Spray Angle |
||||||||||||||
|
1/8“ |
1/4“ |
3/8“ |
1/2“ |
3/4“ |
1″ |
0.5 |
1.0 |
2.0 |
3.0 |
4.0 |
5.0 |
7.0 |
10 |
20 |
30 |
||
|
01 |
✔ |
✔ |
0.16 |
0.23 |
0.33 |
0.40 |
0.46 |
0.52 |
0.61 |
0.73 |
1.03 |
1.26 |
* |
||||
|
015 |
✔ |
✔ |
0.24 |
0.35 |
0.49 |
0.60 |
0.69 |
0.77 |
0.92 |
1.10 |
1.55 |
1.90 |
* |
||||
|
02 |
✔ |
✔ |
0.33 |
0.46 |
0.65 |
0.80 |
0.92 |
1.03 |
1.22 |
1.46 |
2.07 |
2.53 |
* |
||||
|
03 |
✔ |
✔ |
0.49 |
0.69 |
0.98 |
1.20 |
1.39 |
1.55 |
1.83 |
2.19 |
3.10 |
3.79 |
* |
||||
|
04 |
✔ |
✔ |
0.65 |
0.92 |
1.31 |
1.60 |
1.85 |
2.07 |
2.44 |
2.92 |
4.13 |
5.06 |
* |
||||
|
045 |
✔ |
✔ |
0.73 |
1.04 |
1.47 |
1.80 |
2.08 |
2.32 |
2.75 |
3.29 |
4.65 |
5.69 |
* |
||||
|
05 |
✔ |
✔ |
0.82 |
1.15 |
1.63 |
2.00 |
2.31 |
2.58 |
3.06 |
3.65 |
5.16 |
6.32 |
* |
||||
|
055 |
✔ |
✔ |
0.90 |
1.27 |
1.80 |
2.20 |
2.54 |
2.84 |
3.36 |
4.02 |
2.68 |
6.98 |
* |
||||
|
06 |
✔ |
✔ |
0.98 |
1.39 |
1.96 |
2.40 |
2.77 |
3.10 |
3.67 |
4.38 |
6.20 |
7.59 |
* |
||||
|
065 |
✔ |
✔ |
1.06 |
1.50 |
2.12 |
2.60 |
3.00 |
3.36 |
3.97 |
4.75 |
6.71 |
8.22 |
* |
||||
|
07 |
✔ |
✔ |
1.14 |
1.62 |
2.29 |
2.80 |
3.23 |
3.61 |
4.28 |
5.11 |
7.23 |
8.85 |
* |
||||
|
08 |
✔ |
✔ |
1.31 |
1.85 |
2.61 |
3.20 |
3.70 |
4.13 |
4.89 |
5.84 |
8.26 |
10.12 |
* |
||||
|
09 |
✔ |
✔ |
1.47 |
2.08 |
2.94 |
3.60 |
4.16 |
4.65 |
5.50 |
6.57 |
9.30 |
11.38 |
* |
||||
|
10 |
✔ |
✔ |
1.63 |
2.31 |
3.27 |
4.00 |
4.62 |
5.16 |
6.11 |
7.30 |
10.33 |
12.65 |
* |
||||
|
15 |
✔ |
✔ |
2.45 |
3.46 |
4.90 |
6.00 |
6.93 |
7.75 |
9.17 |
10.95 |
15.49 |
18.97 |
* |
||||
|
20 |
✔ |
✔ |
3.27 |
4.62 |
6.53 |
8.00 |
9.24 |
10.33 |
12.22 |
14.61 |
20.66 |
25.30 |
* |
||||
|
30 |
✔ |
4.90 |
6.93 |
9.80 |
12.00 |
13.86 |
15.49 |
18.33 |
21.91 |
30.98 |
37.95 |
* |
|||||
|
40 |
✔ |
✔ |
6.53 |
9.24 |
13.06 |
16.00 |
18.48 |
20.66 |
24.44 |
29.21 |
41.31 |
50.60 |
* |
||||
|
50 |
✔ |
✔ |
8.16 |
11.55 |
16.33 |
20.00 |
23.09 |
25.82 |
30.55 |
36.51 |
51.64 |
63.25 |
* |
||||
|
60 |
✔ |
✔ |
9.80 |
13.86 |
19.60 |
24.00 |
27.71 |
30.98 |
36.66 |
43.82 |
61.97 |
75.89 |
* |
||||
|
70 |
✔ |
✔ |
11.43 |
16.17 |
22.86 |
28.00 |
32.33 |
36.15 |
42.77 |
51.12 |
72.30 |
88.54 |
* |
||||
|
80 |
✔ |
✔ |
13.06 |
18.48 |
26.13 |
32.00 |
36.95 |
41.31 |
48.88 |
58.42 |
82.62 |
101.19 |
* |
||||
|
100 |
✔ |
✔ |
✔ |
16.33 |
23.09 |
32.66 |
40.00 |
46.19 |
51.64 |
61.10 |
73.03 |
103.28 |
126.49 |
* |
|||
|
150 |
✔ |
✔ |
24.49 |
34.64 |
48.99 |
60.00 |
69.28 |
77.46 |
91.65 |
109.54 |
154.92 |
189.74 |
* |
||||
|
200 |
✔ |
✔ |
32.66 |
46.19 |
65.32 |
80.00 |
92.38 |
103.28 |
122.20 |
146.06 |
206.56 |
252.98 |
* |
||||
|
250 |
✔ |
40.82 |
57.74 |
81.65 |
100.00 |
115.47 |
129.10 |
152.75 |
182.57 |
258.20 |
316.23 |
* |
|||||
|
300 |
✔ |
✔ |
48.99 |
69.28 |
97.98 |
120.00 |
138.56 |
154.92 |
183.30 |
219.09 |
309.84 |
379.47 |
* |
||||
|
400 |
✔ |
✔ |
65.32 |
92.38 |
130.64 |
160.00 |
184.75 |
206.56 |
244.40 |
292.12 |
413.12 |
505.96 |
* |
||||
|
500 |
✔ |
81.65 |
115.47 |
163.30 |
200.00 |
230.94 |
258.20 |
305.51 |
365.15 |
516.40 |
632.46 |
* |
|||||
|
600 |
✔ |
97.98 |
138.56 |
195.96 |
240.00 |
277.13 |
309.84 |
366.61 |
438.18 |
619.68 |
758.95 |
* |
|||||
