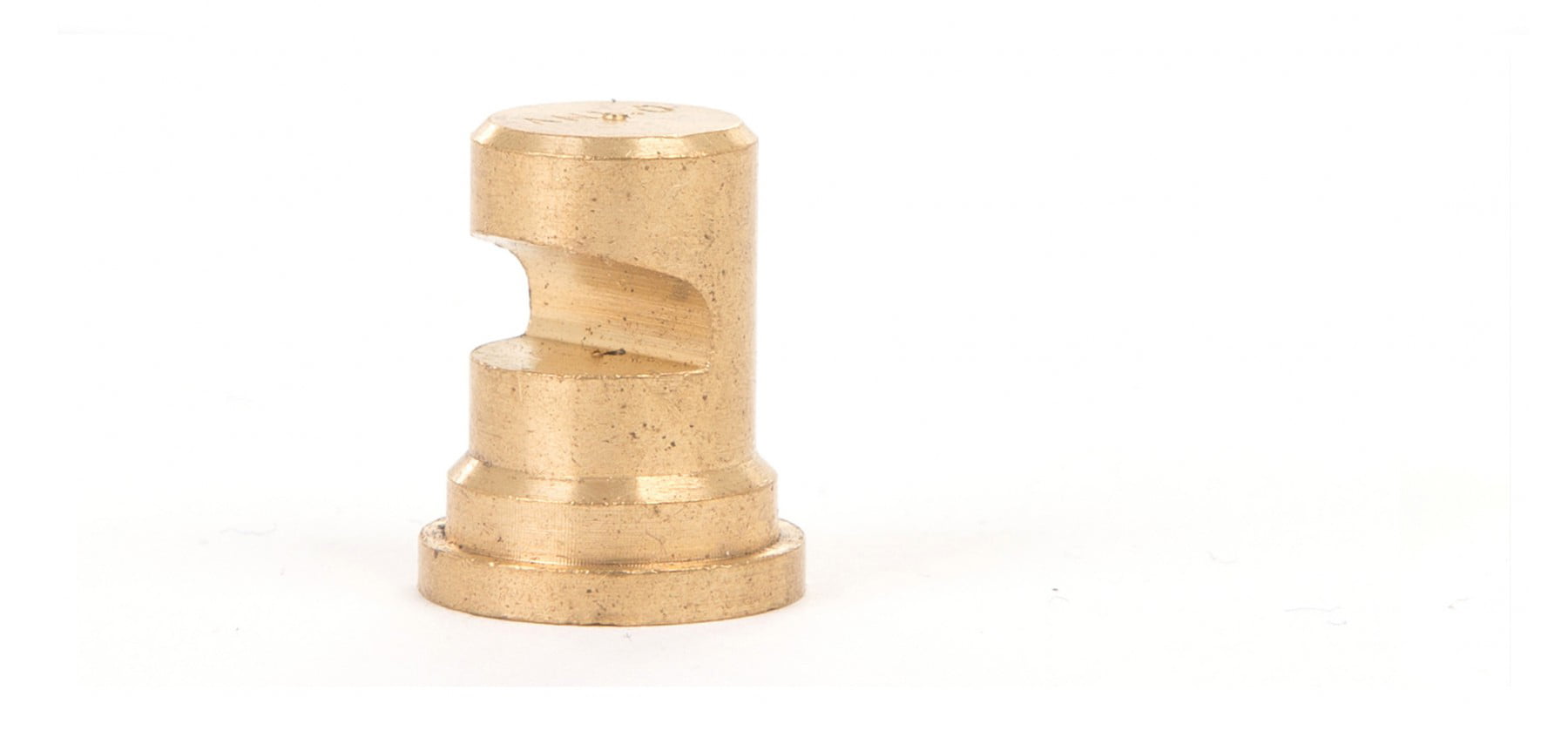

Metal Deflected Tip

Description

DESCRIPTION

The metal deflected nozzle tip produces a wide flat fan spray pattern with uniform distribution, the spray is deflected 75° from inlet of orifice. The spray tip is a one piece construction, a three part assembly completes the nozzle assembly, comprising: nozzle body, retaining cap and spray tip.

MATERIALS AVAILABLE

Brass
Stainless Steel
Other materials available

AVAILABLE SPRAY ANGLES

110°, 115°, 125°, 145°

ORDERING EXAMPLE

Metal Deflected Tip Stainless Steel 20-145°

01642 057075

ENQUIRE NOW

APPLICATION

Cooling
Film Washing
Fire Suppression
Foam Control
Spraying Eliminator Plates
Water Curtain

FEATURES

Precision engineered for quality control of flow, deflection and spray angle
Wide-angle flat fan spray pattern with uniform distribution
Spray deflected 75° from nozzle inlet
Tips are one piece construction
Tips can be assembled with nozzle bodies, strainer and retaining cap
Unobstructed flow passage minimises clogging

wide flat fan spray pattern with a uniform distribution

A (mm)

B (mm)

C (mm)

18.0

12.5

14.7







Tip

Reference

Flow (L/min) @ Pressure (bar)

Available Spray Angle

0.5

1.0

1.5

2.0

2.5

3.0

4.0

110

115

125

145

0.50

0.16

0.23

0.28

0.32

0.36

0.39

0.46

0.75

0.24

0.34

0.42

0.48

0.54

0.59

0.68

1.0

0.32

0.46

0.56

0.64

0.72

0.79

0.91

1.5

0.48

0.68

0.84

0.97

1.08

1.18

1.37

2.0

0.64

0.91

1.12

1.29

1.44

1.58

1.82

2.5

0.81

1.14

1.40

1.61

1.80

1.97

2.28

3.0

0.97

1.37

1.68

1.93

2.16

2.37

2.74

4.0

1.29

1.82

2.23

2.58

2.88

3.16

3.65

5.0

1.61

2.28

2.79

3.22

3.60

3.95

4.56

7.5

2.42

3.42

4.19

4.84

5.41

5.92

6.84

10

3.22

4.56

5.58

6.45

7.21

7.90

9.12

15

4.84

6.84

8.38

9.67

10.81

11.84

13.68

20

6.45

9.12

11.17

12.89

14.42

15.79

18.24
