The metal full cone nozzle produces a full cone spray pattern with uniform distribution. A fixed internal whirl plate generates the uniform coverage. The nozzle has a hex body design for easy installation. Male and Female threaded connections available.
Brass
Stainless Steel
Other materials available on request
30°, 50°, 60°, 70°, 90°, 110°

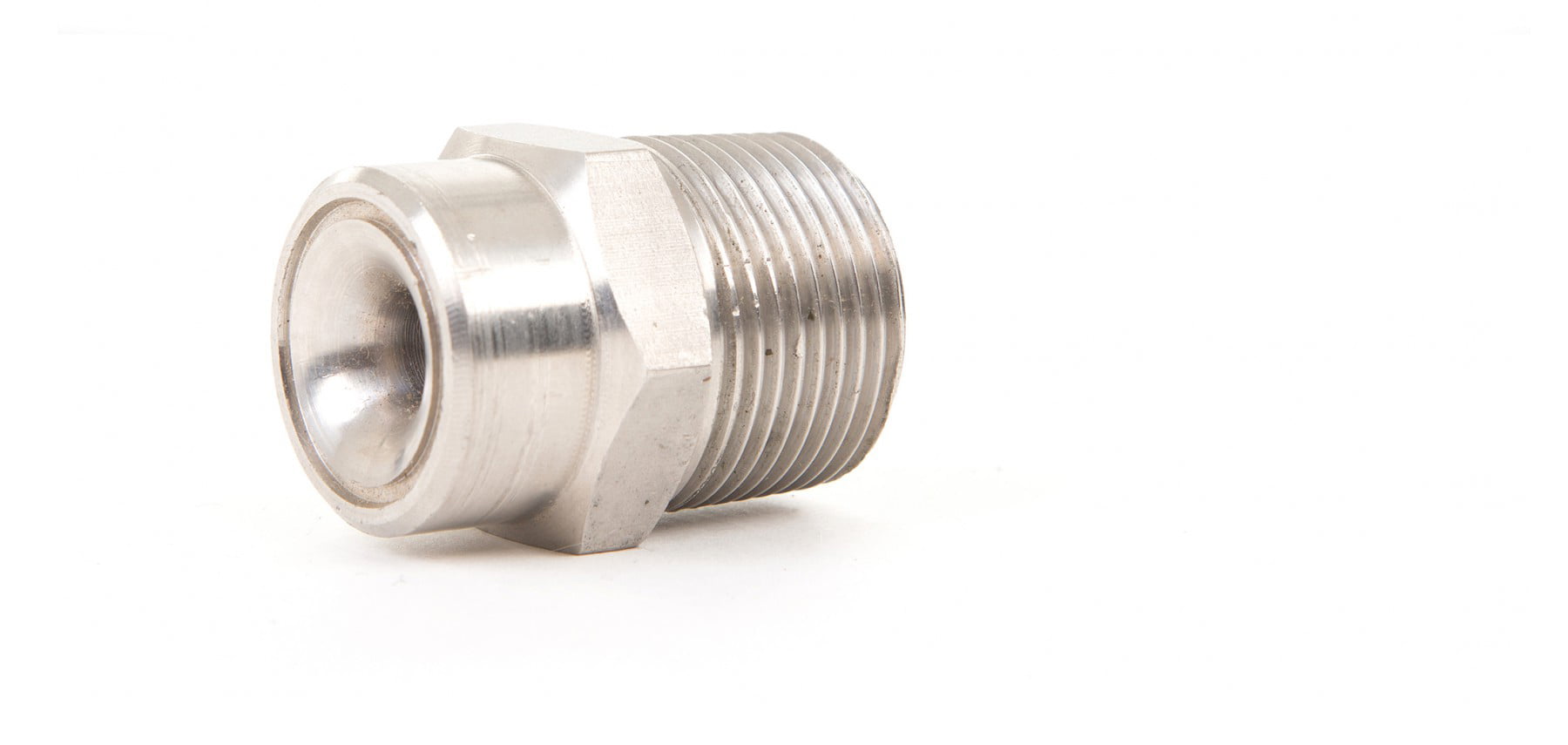

Metal Full Cone Nozzle Stainless Steel 1″ 47-70°
Cooling
Rinsing
Washing
Food Processing
Fire Suppression
Gas Scrubbing, Washing and Cooling
Precision engineered for quality control of flow and spray distribution
Uniform distribution over a wide range of flow rates and pressures
One piece nozzle body with internal swirl vane
Hexagon body for quick and easy installation
Wide range of spray angles
Full cone spray pattern with round impact area
|
Nozzle Ref |
Thread Connection BSP |
Approx Orifice Dia (mm) |
FLow (L/min) @ Pressur (bar) |
|||||||||||||||
|
1/8“ |
1/4“ |
3/8“ |
1/2“ |
3/4“ |
1″ |
1 1/4“ |
1 1/2“ |
2″ |
0.5 |
1.0 |
2.0 |
3.0 |
4.0 |
5.0 |
7.0 |
10.0 |
||
|
0.8 |
✔ |
1.0 |
0.33 |
0.46 |
0.65 |
0.80 |
0.92 |
1.03 |
1.22 |
1.46 |
||||||||
|
1.2 |
✔ |
1.2 |
0.49 |
0.69 |
0.98 |
1.20 |
1.39 |
1.55 |
1.83 |
2.19 |
||||||||
|
1.6 |
✔ |
1.4 |
0.65 |
0.92 |
1.31 |
1.60 |
1.85 |
2.07 |
2.44 |
2.92 |
||||||||
|
2.4 |
✔ |
1.6 |
0.98 |
1.39 |
1.96 |
2.40 |
2.77 |
3.10 |
3.67 |
4.38 |
||||||||
|
3.2 |
✔ |
1.8 |
1.31 |
1.85 |
2.61 |
3.20 |
3.70 |
4.13 |
4.89 |
5.84 |
||||||||
|
4.0 |
✔ |
✔ |
2.0 |
1.63 |
2.31 |
3.27 |
4.00 |
4.62 |
5.16 |
6.11 |
7.30 |
|||||||
|
5.1 |
✔ |
2.4 |
2.08 |
2.94 |
4.16 |
5.10 |
5.89 |
6.58 |
7.79 |
9.31 |
||||||||
|
6.3 |
✔ |
✔ |
2.6 |
2.57 |
3.64 |
5.14 |
6.30 |
7.27 |
8.13 |
9.62 |
11.50 |
|||||||
|
7.5 |
✔ |
✔ |
2.8 |
3.06 |
4.33 |
6.12 |
7.50 |
8.66 |
9.68 |
11.46 |
13.69 |
|||||||
|
9.5 |
✔ |
3.2 |
3.88 |
5.48 |
7.76 |
9.50 |
10.97 |
12.26 |
14.51 |
17.34 |
||||||||
|
12.0 |
✔ |
✔ |
3.6 |
4.90 |
6.93 |
9.80 |
12.00 |
13.86 |
15.49 |
18.33 |
21.91 |
|||||||
|
17.0 |
✔ |
✔ |
4.0 |
6.94 |
9.81 |
13.88 |
17.00 |
19.63 |
21.95 |
25.97 |
31.04 |
|||||||
|
19.0 |
✔ |
4.8 |
7.76 |
10.97 |
15.51 |
19.00 |
21.94 |
24.53 |
29.02 |
34.69 |
||||||||
|
24.0 |
✔ |
✔ |
5.5 |
9.80 |
13.86 |
19.60 |
24.00 |
27.71 |
30.98 |
36.66 |
43.82 |
|||||||
|
30.0 |
✔ |
✔ |
6.4 |
12.25 |
17.32 |
24.49 |
30.00 |
34.64 |
38.73 |
45.83 |
54.77 |
|||||||
|
37.0 |
✔ |
✔ |
7.0 |
15.11 |
21.36 |
30.21 |
37.00 |
42.72 |
47.77 |
56.52 |
67.55 |
|||||||
|
47.0 |
✔ |
✔ |
7.9 |
19.19 |
27.14 |
38.38 |
47.00 |
54.27 |
60.68 |
71.79 |
85.81 |
|||||||
|
61.0 |
✔ |
8.7 |
24.90 |
35.22 |
49.81 |
61.00 |
70.44 |
78.75 |
93.18 |
111.37 |
||||||||
|
71.0 |
✔ |
9.5 |
28.99 |
40.99 |
57.97 |
71.00 |
81.98 |
91.66 |
108.45 |
129.63 |
||||||||
|
91.0 |
✔ |
12.3 |
37.15 |
52.54 |
74.30 |
91.00 |
105.08 |
117.48 |
139.00 |
166.14 |
||||||||
|
118.0 |
✔ |
12.5 |
48.17 |
68.13 |
96.35 |
118.00 |
136.25 |
152.34 |
180.25 |
215.44 |
||||||||
|
147.0 |
✔ |
13.0 |
60.01 |
84.87 |
120.02 |
147.00 |
169.74 |
189.78 |
224.55 |
268.38 |
||||||||
|
188.0 |
✔ |
14.5 |
76.75 |
108.54 |
153.50 |
188.00 |
217.08 |
242.71 |
287.17 |
343.24 |
||||||||
|
235.0 |
✔ |
16.5 |
95.94 |
135.68 |
191.88 |
235.00 |
271.35 |
303.38 |
358.97 |
429.05 |
||||||||
|
294.0 |
✔ |
18.5 |
120.02 |
169.74 |
240.05 |
294.00 |
339.48 |
379.55 |
449.09 |
536.77 |
||||||||
|
370.0 |
✔ |
20.7 |
151.05 |
213.62 |
302.10 |
370.00 |
427.24 |
477.67 |
565.18 |
675.52 |
||||||||
