Metal Hollow Cone Nozzle

Description

DESCRIPTION

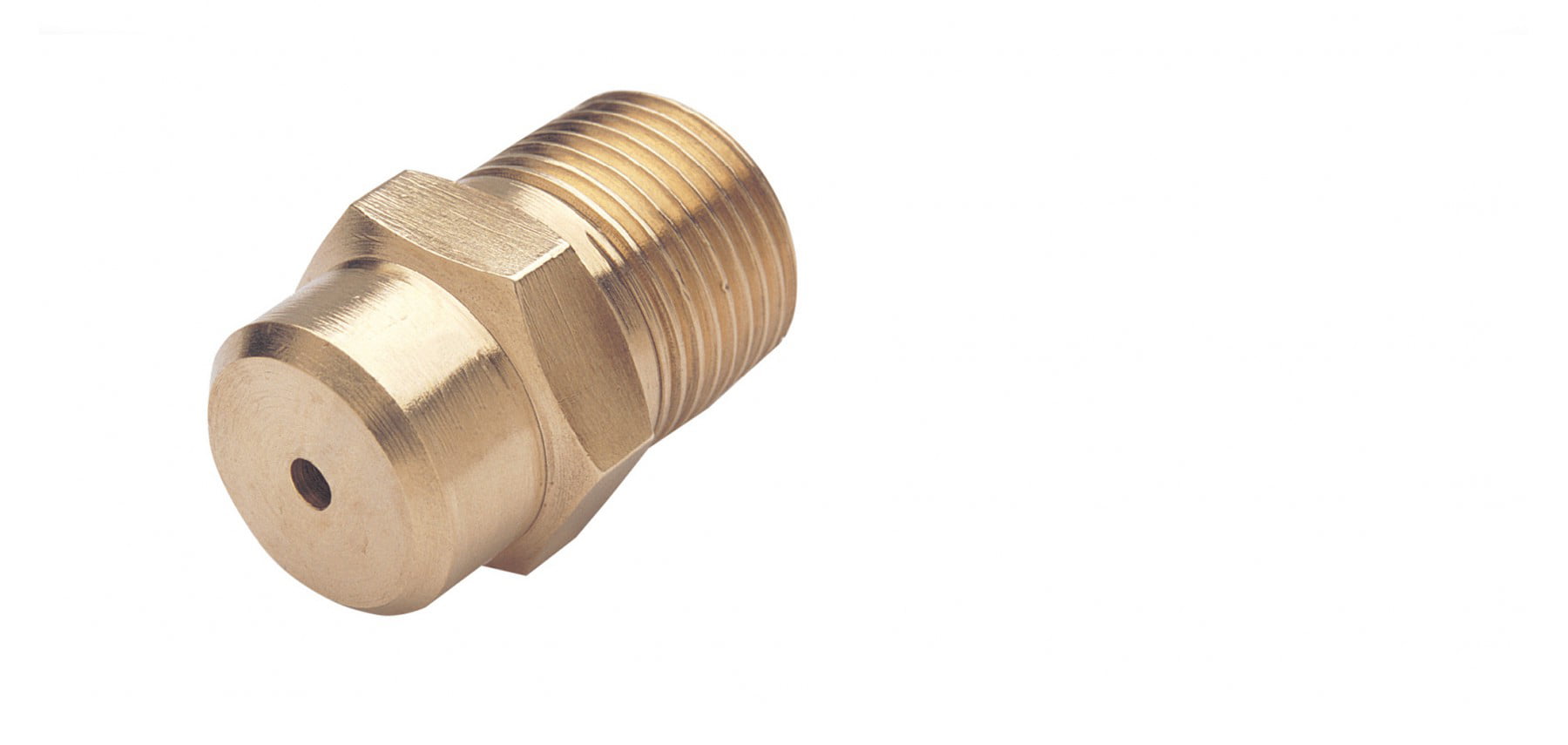

The metal hollow cone nozzle produces a hollow cone spray pattern with uniform distribution. A fixed internal swirl vane generates the uniform coverage. The nozzle has a hex body design for easy installation. Male and female threaded connections available.

MATERIALS AVAILABLE

Brass
Stainless Steel
Other materials available on request

SPRAY ANGLES AVAILABLE

80°

ORDERING EXAMPLE

Metal Hollow Cone Nozzle Brass 1/8″ 3-80°

Reviews

There are no reviews yet.

Be the first to review “Metal Hollow Cone Nozzle”

Your email address will not be published. Required fields are marked *

01642 057075

ENQUIRE NOW

APPLICATION

Humidification
Evaporative Cooling
Chemical Processing
Disinfection applications

FEATURES

Precision engineered for quality control of flow and spray distribution
Uniform distribution of spray droplets
Low impact with fine droplets
One piece nozzle body with internal swirl vane
Hexagon body for quick and easy installation

Related products

HOLLOW CONE SPRAY WITH FINE ATOMISATION

Pipe Size BSP

Male (mm)

Female (mm)

A

B

C

D

E

F

1/8″

19.5

11.0

10.0

28.0

16.0

12.0

1/4″

25.4

15.0

12.7

28.0

18.0

12.0

3/8″

28.5

18.0

14.3

39.0

21.0

19.0

1/2″

35.0

24.0

17.5

50.0

25.0

25.0

3/4″

38.0

27.0

19.0

63.0

30.0

35.0

1″

51.0

36.0

25.5

81.0

37.5

44.0

Nozzle Ref

Thread Connection

Approx Orifice Dia (mm)

Flow (L/Min @ Bar)

3 Bar Angle

1/8″

1/4″

3/8″

1/2″

3/4″

1″

0.5

1

2

3

4

5

7

10

1

✔

✔

1.6

0.37

0.52

0.73

0.90

1.04

1.16

1.37

1.64

80

2

✔

✔

2.0

0.49

0.69

0.97

1.19

1.37

1.54

1.82

2.17

80

3

✔

✔

2.4

0.56

0.79

1.12

1.37

1.58

1.77

2.09

2.00

80

4

✔

2.4

0.73

1.04

1.47

1.80

2.08

2.32

2.75

3.29

80

5

✔

2.8

0.87

1.23

1.74

2.13

2.46

2.75

3.25

3.89

80

6

✔

3.2

1.05

1.48

2.09

2.56

2.96

3.30

3.91

4.67

80

7

✔

3.6

1.18

1.67

2.36

2.89

3.34

3.73

4.41

5.28

80

8

✔

3.6

1.49

2.11

2.89

3.65

4.21

4.71

5.58

6.66

80

9

✔

4.0

1.74

2.47

3.49

4.27

4.93

5.51

6.52

7.80

80

11

✔

4.8

2.13

3.01

4.26

5.22

6.03

6.74

7.97

9.53

80

13

✔

5.5

2.51

3.56

5.03

6.16

7.11

7.95

9.41

11.25

80

18

✔

4.8

3.29

4.65

6.58

8.06

9.31

10.41

12.31

14.72

80

20

✔

5.5

4.03

5.69

8.05

9.86

11.39

12.73

15.06

18.00

80

26

✔

6.4

4.78

6.75

9.55

11.70

13.51

15.10

17.87

21.36

80

33

✔

8.0

6.04

8.54

12.08

14.80

17.09

19.11

22.61

27.02

80

39

✔

6.0

7.76

10.97

15.51

19.00

21.94

24.53

29.02

34.69

80

53

✔

7.0

9.68

13.68

19.35

23.70

27.37

30.60

36.20

43.27

80

60

✔

8.0

11.43

16.17

22.86

28.00

32.33

36.15

42.77

51.12

80

75

✔

9.5

13.92

19.69

27.84

34.10

39.38

44.02

52.09

62.26

80

102

✔

12.0

19.15

27.08

38.29

46.90

54.16

60.55

71.64

85.63

80
