Metal Tangential Hollow Cone Nozzle

Description

DESCRIPTION

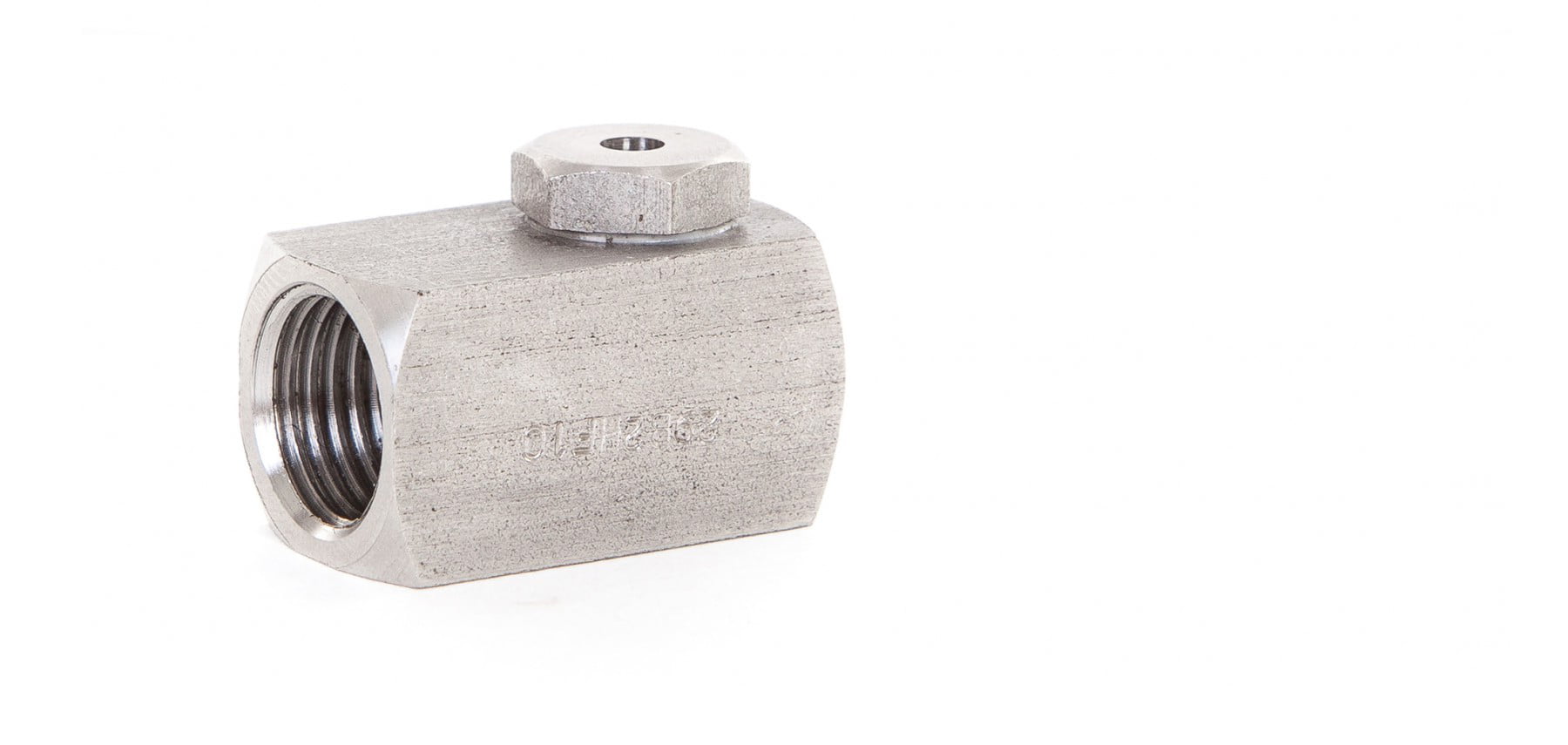

The metal hollow cone tangential nozzle produces a hollow cone spray pattern with a ring shaped impact that sprays at 90 degrees to the inlet, so this gives a right angled spray. The nozzle is a two piece design with no internal parts hence this nozzle has no tendency to block or clog. The internal nozzle chamber is designed with a evenly tapered bottom to prevent erosion from liquids. The nozzle has a square body for easy installation. Male and female threaded connections available.

MATERIALS AVAILABLE

Brass
Stainless steel
Other materials available on request

SPRAY ANGLES AVAILABLE

70° and 110°

ORDERING EXAMPLE

Metal Hollow Cone Tangential Nozzle Brass 1/4 10°-70°

Reviews

There are no reviews yet.

Be the first to review “Metal Tangential Hollow Cone Nozzle”

Your email address will not be published. Required fields are marked *

01642 057075

ENQUIRE NOW

APPLICATION

Air Washers
Aeration
Brine Spraying
Cooling Towers
Evaporative Cooling in spray ponds and cooling towers
Product Degreasing

FEATURES

Hollow cone spray pattern right angled spray
Uniformed spray distribution
Atomisation is finer at higher pressures
Large unobstructed flow passages minimise clogging
Small to medium sized droplets

Related products

HOLLOW CONE SPRAY NOZZLE WITH NO INTERNAL SWIRL VANE

PIpe Size BSP

Male (mm)

Female (mm)

A

B

C

D

E

F

G

H

1/8″

27.0

16.0

19.0

22.5

27.0

16.0

19.0

22.5

1/4″

28.0

16.0

19.0

20.0

28.0

16.0

19.0

20.0

3/8″

35.0

20.0

25.0

25.0

35.0

20.0

25.0

25.0

1/2″

45.0

25.0

31.0

32.0

45.0

25.0

31.0

32.0

3/4″

50.0

30.0

38.0

35.0

50.0

30.0

38.0

35.0

1″

69.0

40.0

48.0

50.0

69.0

50.0

48.0

50.0

Nozzle Reference

Thread Connection

Approx Orifice Dia (mm)

Flow (L/Min @ Bar)

1/8″

1/4″

3/8″

1/2″

3/4″

1″

0.5

1

2

3

4

5

7

10

2

✔

✔

1.7

0.33

0.46

0.65

0.80

0.92

1.03

1.22

1.46

4

✔

✔

2.5

0.65

0.92

1.31

1.60

1.85

2.07

2.44

2.92

6

✔

✔

2.5

0.98

1.39

1.96

2.40

2.77

3.10

3.67

4.38

10

✔

✔

3.4

1.63

2.31

3.27

4.00

4.62

5.16

6.11

7.30

15

✔

✔

✔

5.6

2.45

3.46

4.90

6.00

6.93

7.75

9.17

10.95

20

✔

6.4

3.27

4.62

6.53

8.00

9.24

10.33

12.22

14.61

25

✔

6.9

4.08

5.77

8.16

10.00

11.55

12.91

15.28

18.26

30

✔

✔

7.5

4.90

6.93

9.80

12.00

13.86

15.49

18.33

21.91

40

✔

✔

7.5

6.53

9.24

13.06

16.00

18.48

20.66

24.44

29.21

50

✔

7.5

8.16

11.55

16.33

20.00

23.09

25.82

30.55

36.51

80

✔

9.9

13.06

18.48

26.13

32.00

36.95

41.31

48.88

58.42

100

✔

✔

11.1

16.33

23.09

32.66

40.00

46.19

51.64

61.10

73.03

150

✔

✔

14.3

24.49

34.64

48.99

60.00

69.28

77.46

91.65

109.54

200

✔

✔

18.0

32.66

46.19

65.32

80.00

92.38

103.28

122.20

146.06

250

✔

19.5

40.82

57.74

81.65

100.00

115.47

129.10

152.75

182.57

300

✔

21.1

48.99

69.28

97.98

120.00

138.56

154.92

183.30

219.09

350

✔

24.0

57.15

80.23

114.31

140.00

161.66

180.74

213.85

255.60
