Odour Control Atomiser Heads

Wall Or Floor Mounted Odour Control Atomiser Heads

Odour Control Atomiser Heads

Description....

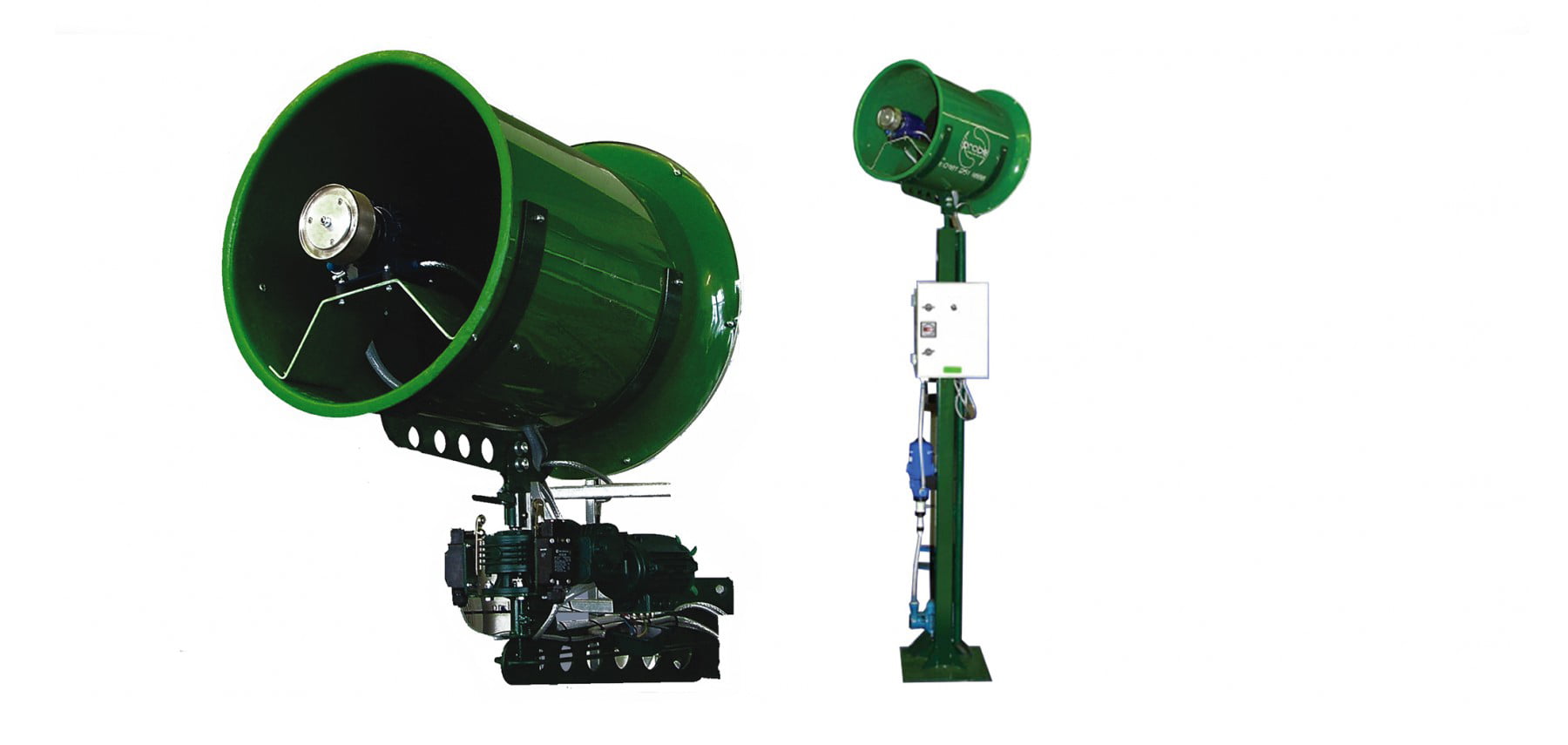

WALL MOUNTED

This unit is secured to walls using either rawl bolts or clamps, the static wall mounted atomiser gives a linear spray of between 20 and 25 metres with a 10 degree diameter. This unit can also be fitted with an optional extra oscillating kit, which increases the spray coverage to 180°.

FLOOR MOUNTED

The floor mounted unit stands 2.5 metres high and is secured to either a concrete base or similar fixed level surface using rawl bolts or clamps, the floor mounted atomiser gives a linear spray of between 20 – 25 metres with a 10 degree diameter. This unit can also be fitted with an optional extra oscillating kit, which increases the spray coverage to 180 degree.

MAIN USES

The wall mounted atomiser can be located internally or externally, when used in conjunction with Airopure odour control agent this equipment becomes most effective.

Applications

Waste transfer stations
Material recovery facilities
Composting plants
Sewage treatment works
Foundries
Any industry producing odour

Features

Never blocks
Uses less water than nozzle based systems
Little or no maintenance
Greater coverage
Quickly installed
Uniformed droplets
Flow rate from 30 – 180 litres per hour (adjustable)

Case Study

Mould Release Spray System

"The site manufactures moulded PU products for the offshore industry. Engineered mouldings are produced for buoyancy, bend protection, thermal insulation and marine fenders, etc."
