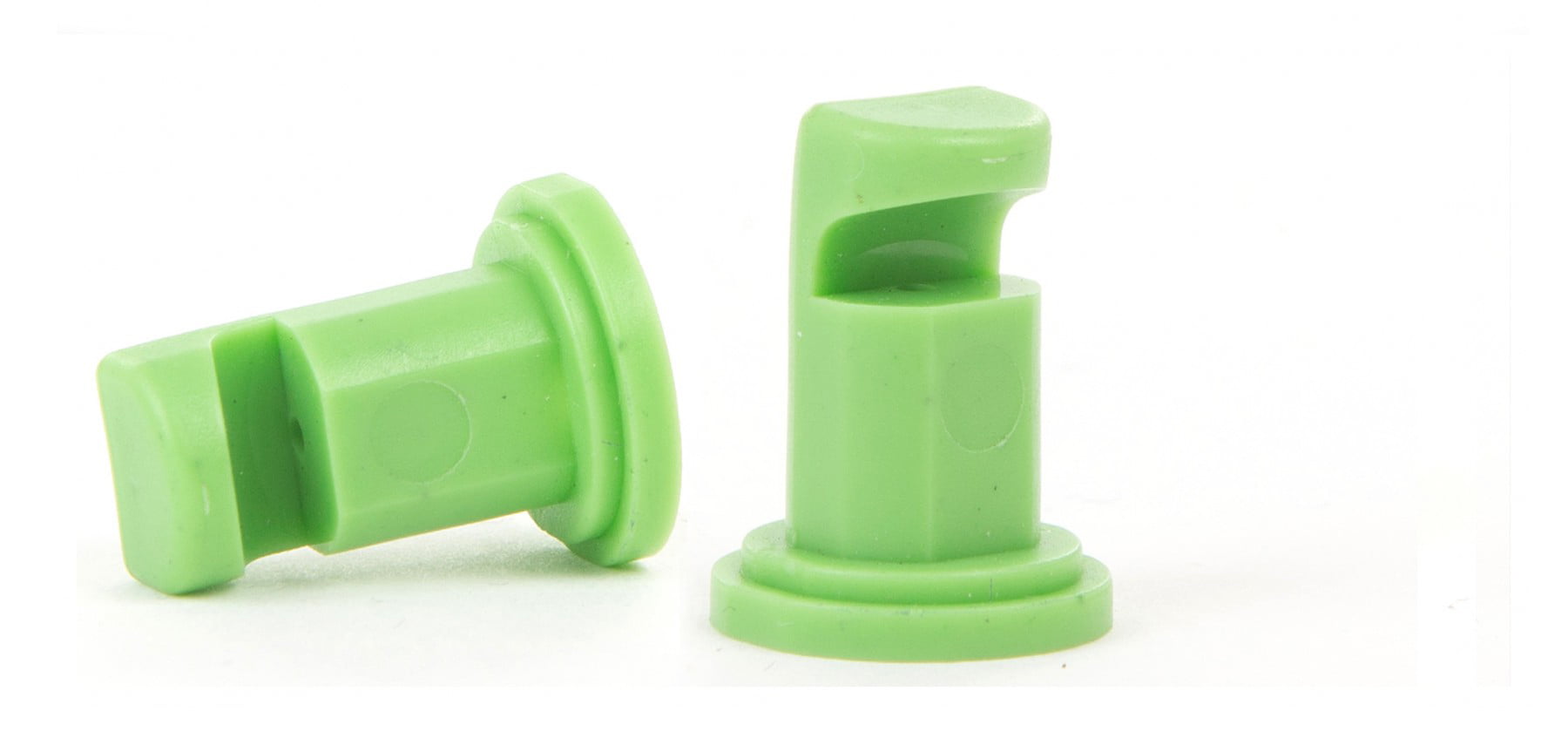

The plastic deflected nozzle tip produces a wide flat fan spray pattern with uniform distribution, the spray is deflected 75° from inlet of orifice. The spray tip is a one piece construction, a three part assembly completes the nozzle assembly, comprising: nozzle body, retaining cap and spray tip.
Polyacetal
PVDF
80°, 95°, 105°, 110°, 120°, 145°
Plastic Deflected Tip – PVDF 3-110°
Cooling Conveyor Belts
Film Washing
Water Curtain
Wide -angle flat spray pattern with uniform distribution
Spray deflected 75° from nozzle inlet
Tips are one piece construction
Tips can be assembled with nozzle bodies, strainer and retaining cap
Unobstructed flow passage minimises clogging
|
Tip Reference |
Flow (L/min) @ Pressure (bar) |
Available Spray Angle |
|||||||||||
|
0.5 |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
4.0 |
80 |
95 |
105 |
110 |
120 |
145 |
|
|
0.50 |
0.16 |
0.23 |
0.28 |
0.32 |
0.36 |
0.39 |
0.46 |
✔ |
|||||
|
0.75 |
0.24 |
0.34 |
0.42 |
0.48 |
0.54 |
0.59 |
0.68 |
✔ |
|||||
|
1.0 |
0.32 |
0.46 |
0.56 |
0.64 |
0.72 |
0.79 |
0.91 |
✔ |
|||||
|
1.5 |
0.48 |
0.68 |
0.84 |
0.97 |
1.08 |
1.18 |
1.37 |
✔ |
|||||
|
2.0 |
0.64 |
0.91 |
1.12 |
1.29 |
1.44 |
1.58 |
1.82 |
✔ |
|||||
|
2.5 |
0.81 |
1.14 |
1.40 |
1.61 |
1.80 |
1.97 |
2.28 |
✔ |
|||||
|
3.0 |
0.97 |
1.37 |
1.68 |
1.93 |
2.16 |
2.37 |
2.74 |
✔ |
|||||
|
4.0 |
1.29 |
1.82 |
2.23 |
2.58 |
2.88 |
3.16 |
3.65 |
✔ |
|||||
|
5.0 |
1.61 |
2.28 |
2.79 |
3.22 |
3.60 |
3.95 |
4.56 |
✔ |
|||||
|
7.5 |
2.42 |
3.42 |
4.19 |
4.84 |
5.41 |
5.92 |
6.84 |
✔ |
|||||
|
10 |
3.22 |
4.56 |
5.58 |
6.45 |
7.21 |
7.90 |
9.12 |
✔ |
|||||
|
15 |
4.84 |
6.84 |
8.38 |
9.67 |
10.81 |
11.84 |
13.68 |
✔ |
|||||
|
20 |
6.45 |
9.12 |
11.17 |
12.89 |
14.42 |
15.79 |
18.24 |
✔ |
|||||
