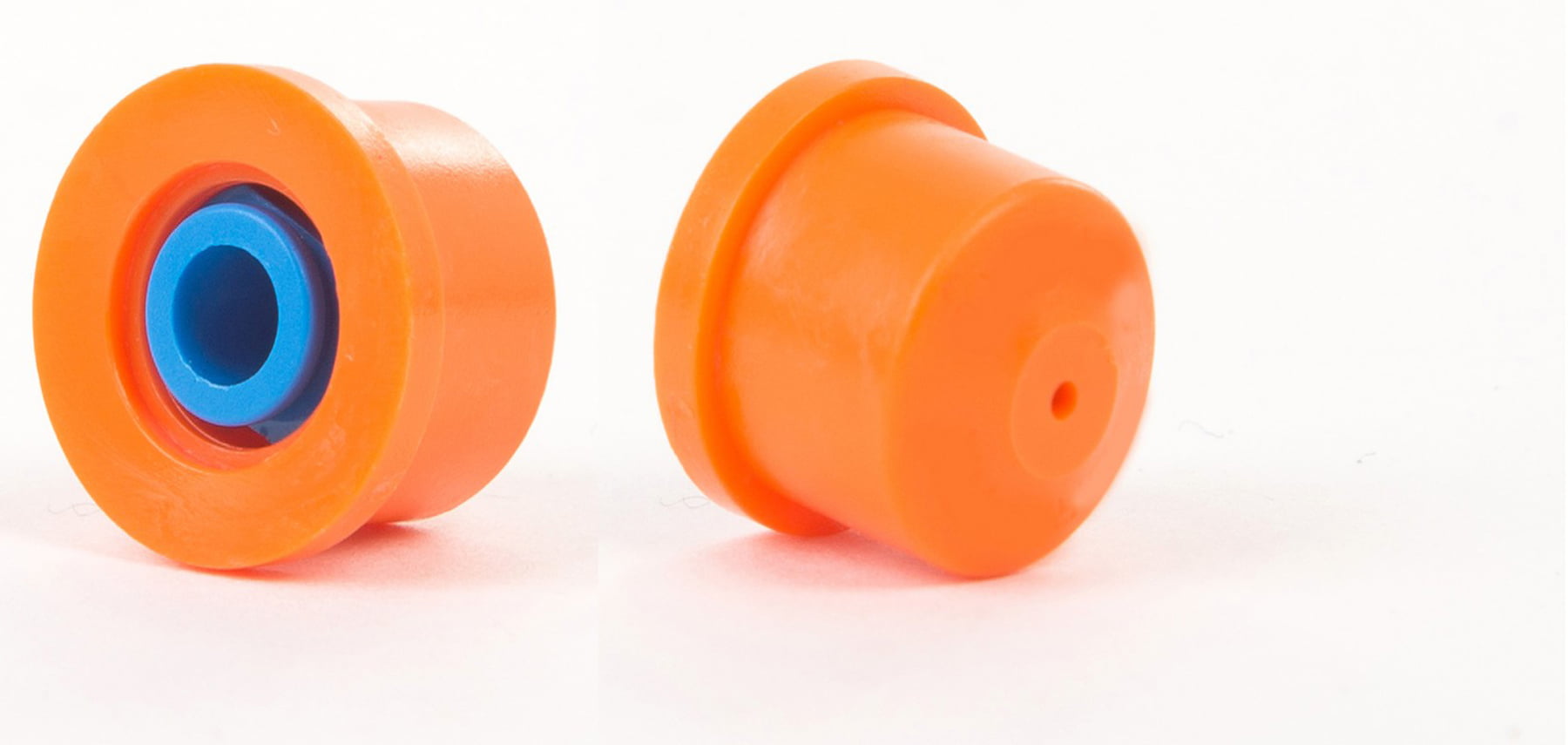

Plastic Hollow Cone tip produces a hollow cone spray pattern with a ring-shaped impact area. The fixed internal whirl vane generates the spray pattern and uniform coverage. The spray tip has a flanged connection and is to be used with either threaded nozzle bodies or nozzle clamp holders.
(details shown in accessories section).
Polyacetal
PVDF
80°
Plastic Hollow Cone Tip PVDF 02°-80°
Evaporative Cooling
Humidification
Insecticide Spraying
Weed Control
Uniform distribution over the spray width
Tips have an internal swirl vane to generate a hollow cone spray pattern
Tips can be assembled with nozzle bodies, strainer and retaining cap
Hollow cone spray pattern with round impact area
Finely atomised spray
|
Tip Reference |
Approx Orifice Dia (mm) |
Flow-Litres/hour @ Pressure Bar |
3 Bar Angle |
|||||||
|
0.5 |
1 |
2 |
3 |
4 |
5 |
7 |
10 |
|||
|
0280 |
0.7 |
3.22 |
4.56 |
6.44 |
7.89 |
9.11 |
10.19 |
12.06 |
14.41 |
80 |
|
0380 |
0.9 |
4.83 |
6.84 |
9.67 |
11.84 |
13.67 |
15.29 |
18.09 |
21.62 |
80 |
|
0480 |
1.0 |
6.44 |
9.11 |
12.89 |
15.79 |
18.23 |
20.38 |
24.11 |
28.82 |
80 |
|
0680 |
1.2 |
9.67 |
13.67 |
19.33 |
23.68 |
27.34 |
30.57 |
36.17 |
43.23 |
80 |
|
0880 |
1.4 |
12.89 |
18.23 |
25.78 |
31.57 |
36.46 |
40.76 |
48.23 |
57.64 |
80 |
|
1080 |
1.5 |
16.11 |
22.79 |
32.22 |
39.47 |
45.57 |
50.95 |
60.29 |
72.05 |
80 |
|
1280 |
1.7 |
19.33 |
27.34 |
39.67 |
47.36 |
54.69 |
61.14 |
72.34 |
86.47 |
80 |
