Plastic Rotating Spray Head

Description

DESCRIPTION

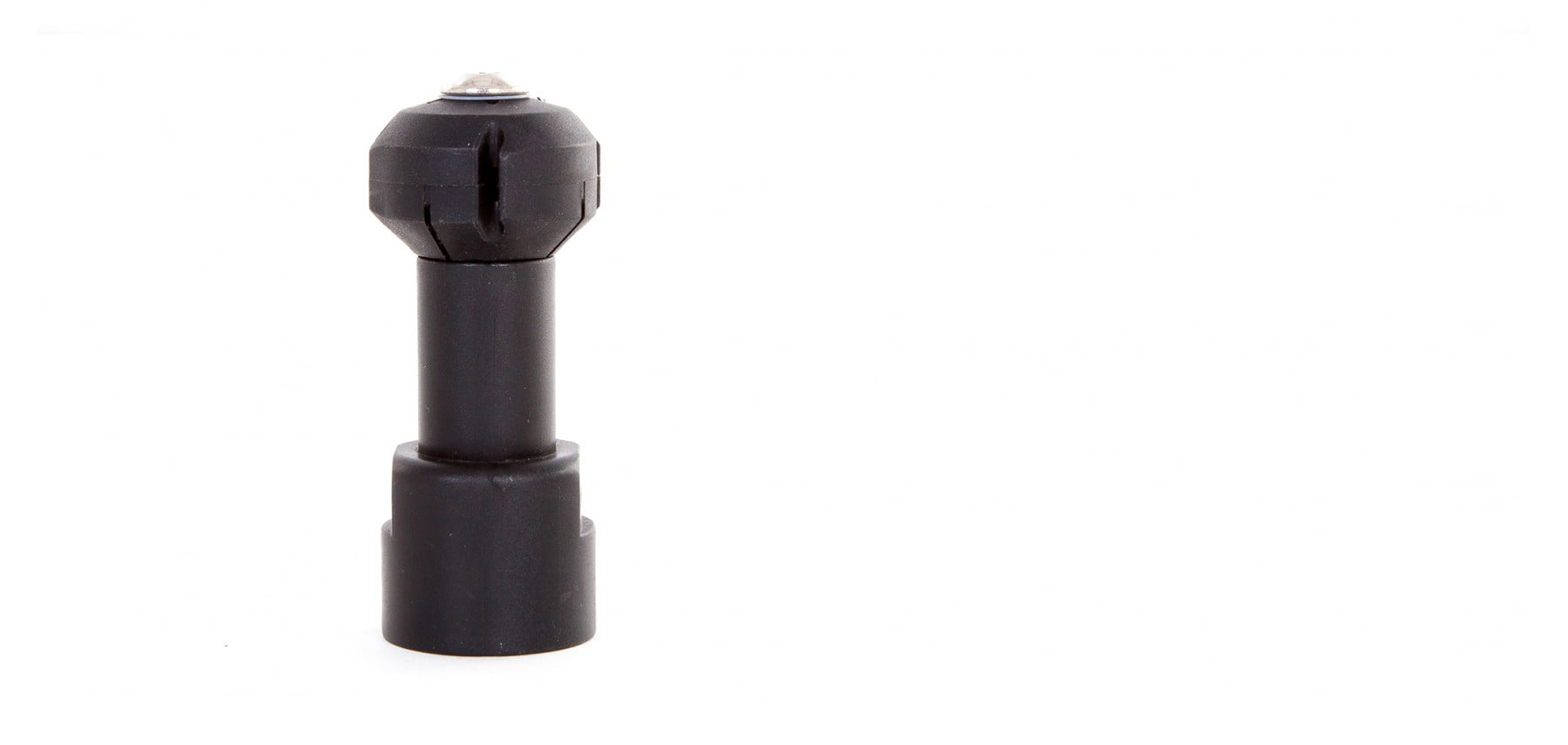

Our plastic rotating spray heads are designed for better and faster cleaning of small containers, beer kegs and tanks of sizes up to 1 metre diameter. They are manufactured from PVDF for enhanced performance and durability. There are two versions of this nozzle available, the 360 degree plastic tank cleaning head and the 180 degree plastic container cleaning nozzle. Both these nozzles have 1/2″ BSP female threaded connection and are compact in size meaning that they can fit inside small openings in vessels where required.

ORDERING EXAMPLE
Plastic 360° Rotary Spray Head Low Flow

01642 057075

ENQUIRE NOW

APPLICATION

For small tanks, beer kegs and containers up to 1 metre diameter

FEATURES

1/2″ BSP Female Thread
Optimum cleaning pressure 2 to 5 bar
Compact size
PVDF material
Multiple rotating fan jets

plastic spray head for small containers, beer kegs and tanks

Nozzle Reference

Spray Angle

Thread

Connection

Flowrate in Lpm at Bar

BSP FEM

1

2

3

4

5

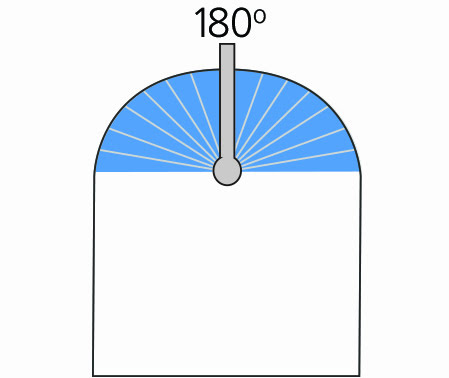

180° BACKWARD SPRAY HEAD

1/2″ BSP

9

13

16

18

20

180° FORWARD SPRAY HEAD

1/2″ BSP

9

13

16

18

20

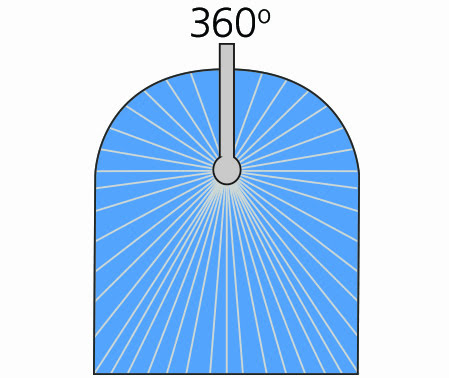

360° SPRAY HEAD LOW FLOW



1/2″ BSP

14

20

24

28

31

360° SPRAY HEAD HIGH FLOW

1/2″ BSP

28

38

46

54

60
