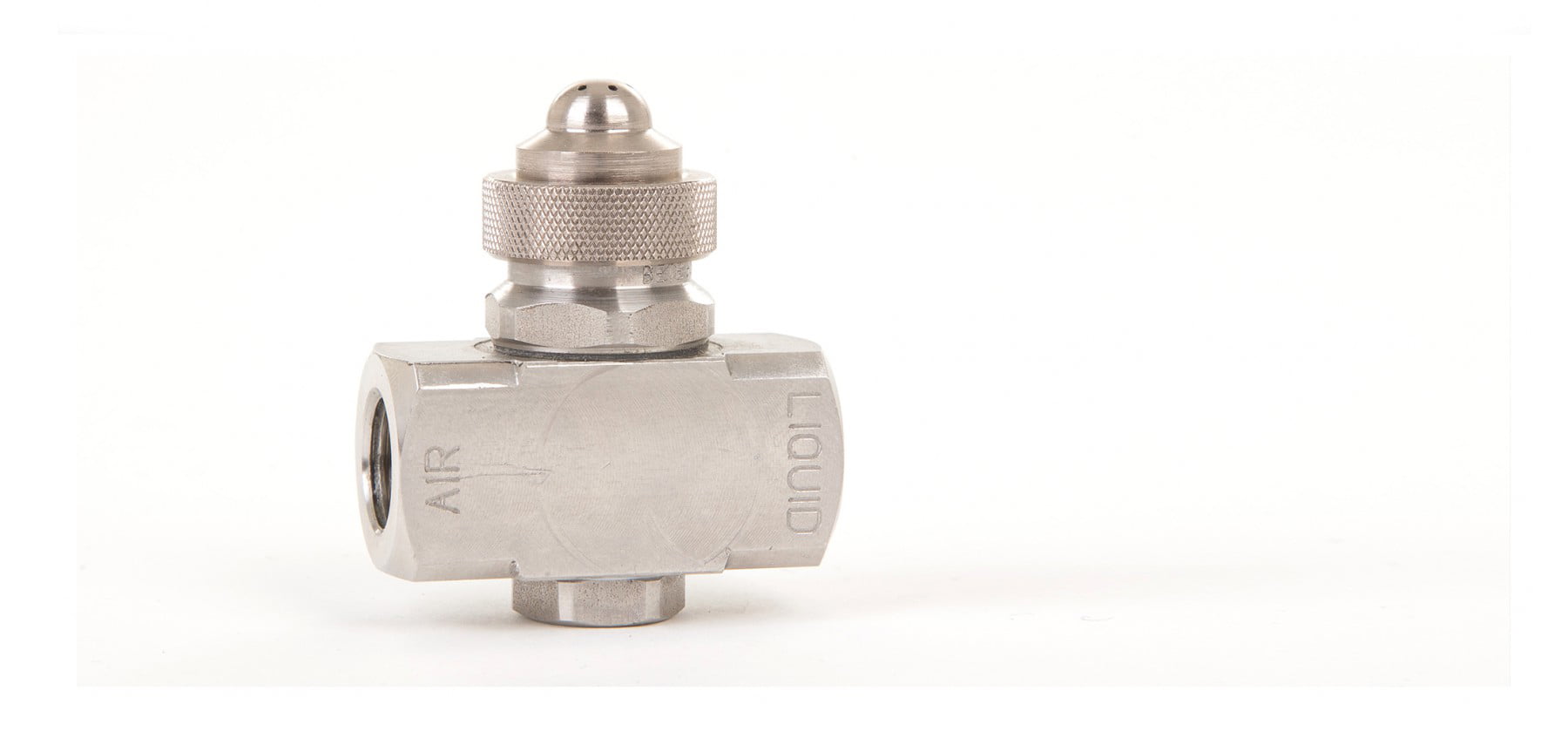

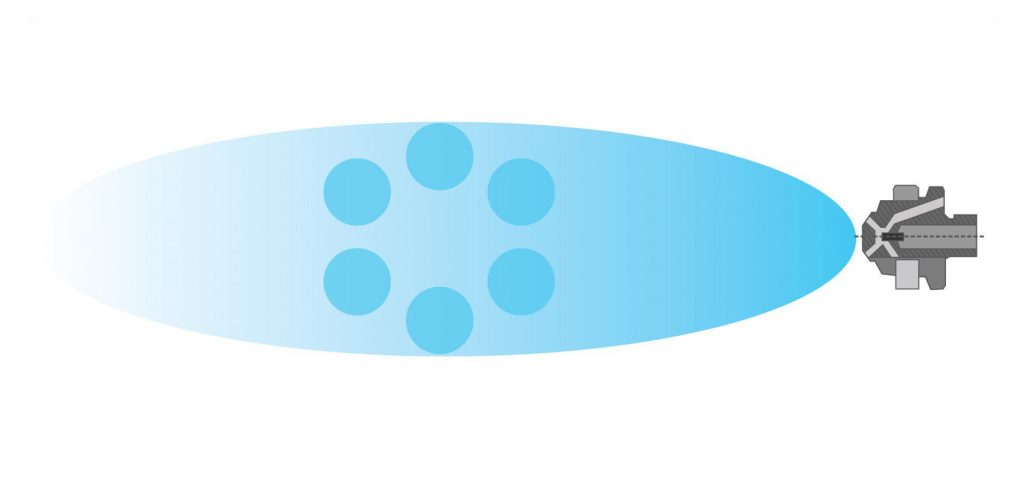

The Pressure Fed Wide Round Spray produces a hollow cone spray pattern. Compressed air and liquid mixes and atomises within the spray nozzle body to create a fine mist spray with moderate forward spray projection. The nozzle has a separate air and liquid connection being 1/4″ female.
Nickel Plated Brass, Stainless Steel
70°
Manual Clean-out needle, Automatic Clean-out and shut-off valve
|
Nozzle Number |
0.7 Bar Liquid |
1.5 Bar Liquid |
2.0 Bar Liquid |
3.0 Bar Liquid |
4.0 Bar Liquid |
||||||||||
|
Air (bar) |
l/h |
Nm3/h |
Air (bar) |
l/h |
Nm3/h |
Air (bar) |
l/h |
Nm3/h |
Air (bar) |
l/h |
Nm3/h |
Air (bar) |
l/h |
Nm3/h |
|
|
050 |
0.6 |
5.3 |
0.60 |
1.1 |
8.1 |
0.79 |
1.5 |
8.1 |
0.92 |
2.4 |
8.9 |
1.24 |
3.1 |
10.5 |
1.44 |
|
0.7 |
4.3 |
0.72 |
1.3 |
7.0 |
0.88 |
1.8 |
6.6 |
1.09 |
2.7 |
8.1 |
1.40 |
3.4 |
9.7 |
1.68 |
|
|
0.9 |
3.0 |
0.84 |
1.4 |
6.4 |
0.94 |
2.1 |
4.9 |
1.32 |
3.0 |
6.4 |
1.66 |
3.9 |
7.8 |
2.16 |
|
|
1.0 |
1.7 |
1.02 |
1.5 |
5.5 |
1.01 |
2.4 |
3.2 |
1.66 |
3.2 |
4.9 |
1.92 |
4.2 |
6.1 |
2.52 |
|
|
1.7 |
4.5 |
1.16 |
3.4 |
4.2 |
2.13 |
4.6 |
4.4 |
2.82 |
|||||||
|
1.8 |
3.5 |
1.30 |
3.5 |
3.4 |
2.33 |
4.9 |
2.8 |
3.24 |
|||||||
|
100 |
0.9 |
7.0 |
3.00 |
1.7 |
13.2 |
4.08 |
2.0 |
18.5 |
4.06 |
2.8 |
25.0 |
5.04 |
3.7 |
31.0 |
5.76 |
|
1.0 |
2.1 |
3.72 |
1.8 |
9.8 |
4.74 |
2.1 |
15.1 |
4.56 |
3.0 |
22.0 |
5.52 |
3.8 |
28.0 |
6.30 |
|
|
2.2 |
11.7 |
5.10 |
3.1 |
18.5 |
6.06 |
3.9 |
26.0 |
6.78 |
|||||||
|
3.2 |
15.1 |
6.54 |
4.1 |
23.0 |
7.32 |
||||||||||
|
3.4 |
12.1 |
7.14 |
4.2 |
20.0 |
7.80 |
||||||||||
|
3.5 |
9.1 |
7.80 |
4.6 |
13.6 |
9.18 |
||||||||||
|
3.7 |
6.1 |
8.52 |
4.9 |
6.8 |
11.00 |
||||||||||
|
150 |
1.1 |
12.3 |
2.40 |
2.2 |
16.3 |
3.72 |
2.7 |
21.0 |
4.14 |
4.2 |
19.3 |
6.00 |
5.6 |
22.0 |
7.80 |
|
1.3 |
9.9 |
2.70 |
2.5 |
12.1 |
4.26 |
3.0 |
16.3 |
4.68 |
4.6 |
14.6 |
6.78 |
6.0 |
17.6 |
8.52 |
|
|
1.4 |
7.9 |
3.00 |
2.8 |
8.9 |
4.74 |
3.2 |
12.3 |
5.16 |
4.9 |
10.8 |
7.44 |
6.3 |
14.0 |
9.12 |
|
|
1.5 |
6.1 |
3.24 |
3.0 |
7.6 |
4.98 |
3.4 |
10.7 |
5.46 |
5.3 |
8.1 |
8.10 |
6.7 |
11.4 |
9.78 |
|
|
1.7 |
4.9 |
3.48 |
3.1 |
6.4 |
5.22 |
3.5 |
9.3 |
5.64 |
5.6 |
6.2 |
8.76 |
7.0 |
9.1 |
10.40 |
|
|
1.8 |
3.9 |
3.72 |
3.2 |
5.5 |
5.46 |
3.9 |
6.4 |
6.30 |
6.0 |
4.9 |
9.42 |
||||
|
2.0 |
3.1 |
4.02 |
3.4 |
4.7 |
5.70 |
4.2 |
4.7 |
6.90 |
6.3 |
4.0 |
10.00 |
||||
|
200 |
0.7 |
24.0 |
1.92 |
1.4 |
43.0 |
2.22 |
2.1 |
33.0 |
3.96 |
2.8 |
52.0 |
3.90 |
3.7 |
63.0 |
4.06 |
|
0.9 |
13.6 |
2.64 |
1.5 |
35.0 |
2.94 |
2.2 |
26.0 |
4.68 |
3.0 |
46.0 |
4.56 |
3.8 |
58.0 |
4.74 |
|
|
1.0 |
7.6 |
3.42 |
1.7 |
28.0 |
3.66 |
2.4 |
18.9 |
5.34 |
3.1 |
39.0 |
5.22 |
4.0 |
52.0 |
6.06 |
|
|
1.8 |
21.0 |
4.26 |
2.5 |
11.7 |
6.00 |
3.2 |
33.0 |
5.94 |
4.2 |
41.0 |
6.66 |
||||
|
3.4 |
26.0 |
6.60 |
4.6 |
27.0 |
8.28 |
||||||||||
|
3.5 |
19.5 |
7.32 |
4.9 |
15.9 |
9.96 |
||||||||||
|
3.7 |
13.2 |
7.98 |
|||||||||||||
|
250 |
1.3 |
36.0 |
5.10 |
2.1 |
57.0 |
6.96 |
3.1 |
53.0 |
9.36 |
4.2 |
64.0 |
11.80 |
5.6 |
74.0 |
14.70 |
|
1.5 |
29.0 |
6.12 |
2.4 |
51.0 |
7.80 |
3.2 |
50.0 |
9.78 |
4.9 |
51.0 |
13.80 |
6.0 |
68.0 |
15.60 |
|
|
1.8 |
23.0 |
7.02 |
2.7 |
45.0 |
8.58 |
3.4 |
47.0 |
10.20 |
5.6 |
40.0 |
15.90 |
6.3 |
62.0 |
16.80 |
|
|
2.0 |
19.7 |
7.50 |
3.0 |
39.0 |
9.42 |
3.5 |
45.0 |
10.60 |
6.0 |
34.0 |
17.10 |
6.7 |
56.0 |
17.70 |
|
|
2.1 |
16.7 |
7.96 |
3.2 |
33.0 |
10.20 |
3.9 |
38.0 |
11.60 |
6.3 |
28.0 |
18.00 |
7.0 |
51.0 |
18.90 |
|
|
2.3 |
14.0 |
8.52 |
3.5 |
28.0 |
11.10 |
4.6 |
25.0 |
13.80 |
6.7 |
22.0 |
19.20 |
||||
|
2.4 |
11.4 |
8.94 |
4.2 |
13.6 |
13.20 |
4.9 |
18.5 |
14.70 |
7.0 |
17.8 |
20.10 |
||||
|
300 |
1.7 |
25.0 |
9.36 |
3.0 |
39.0 |
13.80 |
3.4 |
50.0 |
15.00 |
4.6 |
62.0 |
19.20 |
6.0 |
93.0 |
23.70 |
|
1.8 |
19.7 |
10.00 |
3.1 |
33.0 |
14.40 |
3.5 |
43.0 |
15.60 |
4.9 |
47.0 |
20.70 |
6.3 |
77.0 |
25.50 |
|
|
2.0 |
15.1 |
10.70 |
3.2 |
27.0 |
15.30 |
3.7 |
41.0 |
16.50 |
5.3 |
36.0 |
22.50 |
6.7 |
62.0 |
27.60 |
|
|
2.1 |
11.4 |
11.60 |
3.4 |
23.0 |
15.90 |
3.9 |
27.0 |
18.00 |
5.6 |
25.0 |
24.30 |
7.0 |
52.0 |
29.70 |
|
|
2.3 |
7.6 |
12.30 |
3.5 |
18.5 |
16.80 |
4.1 |
23.0 |
18.60 |
6.0 |
18.9 |
26.10 |
||||
|
3.7 |
14.8 |
17.40 |
4.2 |
18.9 |
19.20 |
6.3 |
13.6 |
27.60 |
|||||||
|
4.4 |
15.9 |
20.10 |
|||||||||||||
ORDERING EXAMPLE Pressure fed Wide Round Spray 1/4″ Stainless Steel 100
