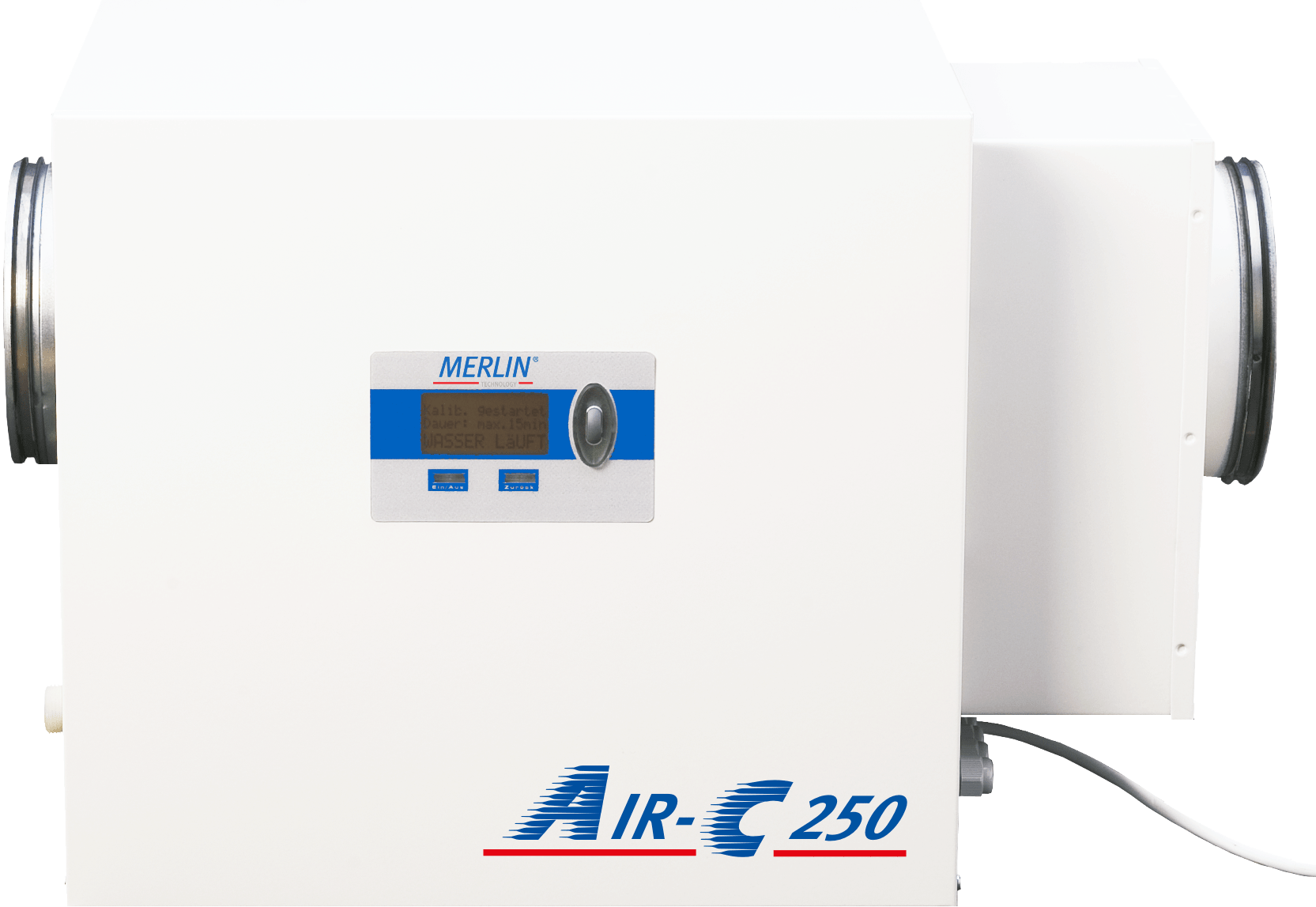

AIR-C 250-R ohne Ventilation

Rotation Lamella

Description

No drip air humidification

Relative humidity for perfect performance with natural evaporation

The compact air humidification unit works using natural evaporation, without producing a mist or fog. It maintains a constant, optimal air humidity level which can be set to any value between 40% and 60% relative humidity.

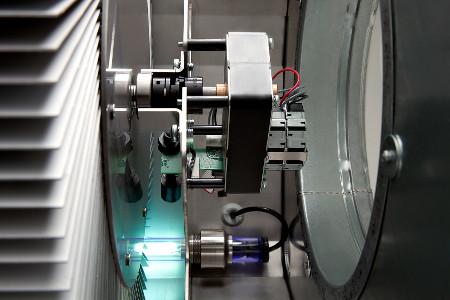

The Rotation Lamella evaporator lies in a humidification trough supplied with drinking water. An integrated heating bank heats the air for generation of evaporation energy. Integrated UVC-disinfectors guarantee that only germ-free water is evaporated. Rotating lamellas ‘scoop’ the humidity into the ambient air with an accuracy in the single percentage range.:

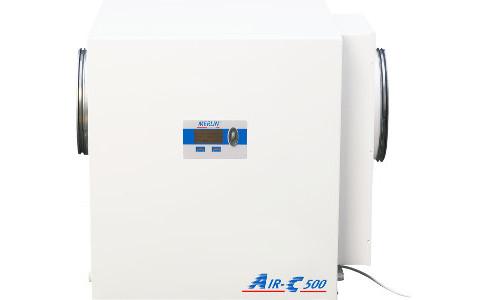

AIR-C 250 / AIR-C 500






WITHOUT VENTILATION UNIT

The AIR-C 250 and AIR-C 500 air humidification units with rotational blades can be connected to existing AC systems without a ventilation unit. Electric or battery water heater options are available.

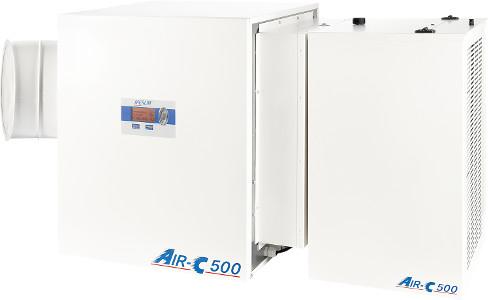

AIR-C 250 / AIR-C 500






WITH VENTILATION UNIT

The AIR-C 250 and AIR-C 500 air humidification units with rotational blades can be set up directly in the room as a stand-alone unit with a ventilation unit.

01642 057075

ENQUIRE NOW

APPLICATIONS:

  • For integration into existing air handling solutions
  • Ventilation and air conditioning technology
  • Museums and historical archives
  • Antiques and sensitive artworks
  • Offices, workshops and laboratories

TECHNICAL DATA



AIR-C 250

AIR-C 500

Air volume flow

m³/h

Max 250

Max 500

Humidity, adjustable

%

40-60

40-60

Temperature, adjustable

°C

15-25

15-25

Evaporative power

l/h

Max 2

Max 4

Pressure loss

Pa

Max 30

Max 80

Pressure loss

Pa

Max 30

Max 80

Max power consumption

W

~23

~23

Power supply

V/Hz

230/50

230/50

Connection to air supply

Ø mm

160

250

Connection to water supply

BSP

3/4″

3/4″

Water inlet pressure min/max

bar

3.5-7.0

3.5-7.0

Water temperature min/max

°C

8-30

8-30

Weight

kg

23

47

Protection rating for wall mounting

IP

20

20



PTC electric heater battery

Heat output PTC element

W

1300

1300
