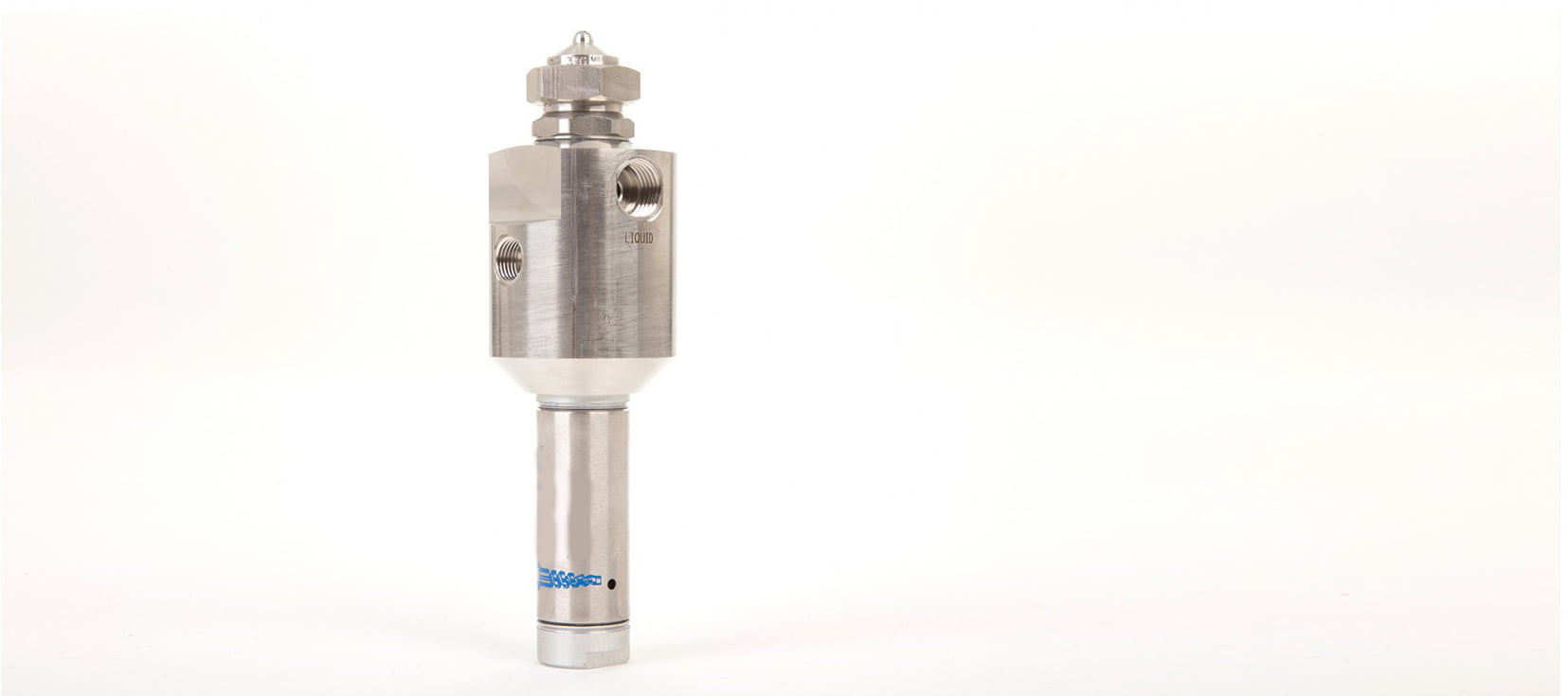

The Siphon Fed Flat Fan Spray produces a flat fan spray pattern. Compressed air and liquid mixes and atomises within the spray nozzle body to create a fine mist spray with a small forward projection. The nozzle has a separate air and liquid connection being 1/4″ female.
Nickel Plated Brass
Stainless Steel
60° – 85°
Siphon Fed Flat Fan Spray 1/4″ Stainless Steel 050
|
Nozzle Number |
Atomizing Air |
Liquid Capacity (Litres Per Hour) |
||||||||
|
Gravity Head |
Siphon Height |
|||||||||
|
Air (Bar) |
Air Capacity |
Air (bar) |
l/h |
Nm3/h |
100mm |
200mm |
300mm |
600mm |
900mm |
|
|
050 |
0.7 |
1.68 |
1.3 |
1.2 |
1.1 |
1.0 |
1.0 |
0.8 |
0.6 |
0.5 |
|
1.5 |
2.58 |
1.2 |
1.1 |
1.0 |
0.9 |
0.9 |
0.8 |
0.7 |
0.5 |
|
|
2.0 |
3.00 |
0.8 |
0.8 |
0.7 |
0.6 |
0.5 |
||||
|
100 |
1.5 |
3.36 |
3.7 |
3.5 |
3.3 |
2.9 |
2.8 |
2.5 |
2.3 |
2.1 |
|
2.0 |
3.90 |
3.4 |
3.3 |
3.1 |
2.8 |
2.7 |
2.6 |
2.4 |
2.2 |
|
|
3.0 |
5.22 |
2.8 |
2.7 |
2.5 |
2.4 |
2.2 |
2.1 |
1.9 |
1.7 |
|
|
4.0 |
6.60 |
1.9 |
1.8 |
1.6 |
1.3 |
1.3 |
1.2 |
|||
|
150 |
1.5 |
4.08 |
5.1 |
4.8 |
4.5 |
3.8 |
3.7 |
3.5 |
3.0 |
2.4 |
|
2.0 |
4.68 |
4.9 |
4.7 |
4.4 |
3.6 |
3.4 |
3.2 |
2.9 |
2.3 |
|
|
3.0 |
6.18 |
3.4 |
3.2 |
3.0 |
2.2 |
2.0 |
1.7 |
|||
|
3.5 |
7.02 |
2.2 |
2.0 |
1.7 |
||||||
|
200 |
1.5 |
3.78 |
7.6 |
7.2 |
6.6 |
5.7 |
5.4 |
5.1 |
4.6 |
3.7 |
|
2.0 |
4.38 |
7.6 |
7.3 |
6.8 |
5.9 |
5.7 |
5.5 |
5.0 |
4.2 |
|
|
3.0 |
5.76 |
6.4 |
6.1 |
5.7 |
5.0 |
4.5 |
4.1 |
3.3 |
||
|
3.5 |
6.60 |
4.2 |
3.7 |
3.2 |
2.6 |
|||||
