Stainless Steel Airmist Cooling Nozzles

Description

DESCRIPTION

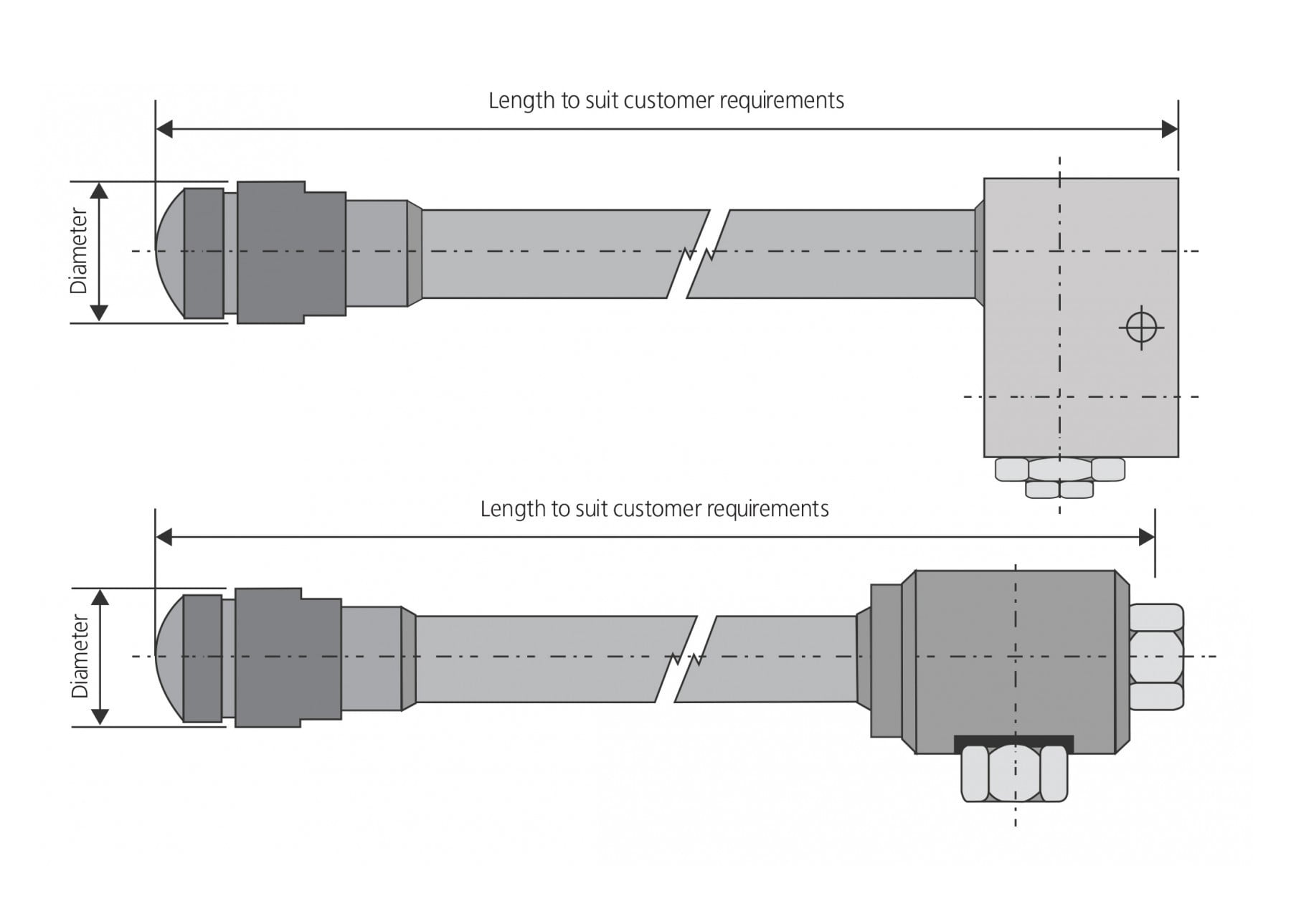

This nozzle design is available in both block and round version, both designs produce a spray pattern with highly uniform droplets. This makes the cooling process more controllable, with reduced tendency for water puddling and localised uneven cooling or thermally induced roller deflection. The flat spray pattern is thick, even with angles from 60 degree to 120 degree offering good coverage with few nozzles.

MATERIALS AVAILABLE

Stainless Steel

SPRAY ANGLES AVAILABLE

60 – 120 degree

01642 057075

ENQUIRE NOW

APPLICATION

Continuous Casting
Secondary Cooling

FEATURES

Highly uniformed distribution
Highly uniform droplet size
Even cooling characteristics
Wide passages prevent blockage
Large turn down ratio
Fluid orifice can be removed and cleaned/replaced without removing nozzle assembly

Related products

AIR MIST NOZZLE WITH UNIFORM COVERAGE AND DROPLETS

Connection Size/Model

Tip Size/Spray Angle

Nozzle Length

Block Version

Round Version

Nozzle

Flow Rate

Spray Angle

Length (Straight)

Liquid

Air

Liquid/Air

Ref No:

USGPM

LPM

60

70

80

90

95

100

110

120

90-1000mm

3/8″

1/2″

3/8″

2

2

6.7

✔

✔

✔

✔

✔

✔

✔

✔

90-1000mm

3/8″

1/2″

3/8″

2.5

2.5

9.5

✔

✔

✔

✔

✔

✔

✔

✔

90-1000mm

3/8″

1/2″

3/8″

3

3

11.4

✔

✔

✔

✔

✔

✔

✔

✔

90-1000mm

3/8″

1/2″

3/8″

4

4

15

✔

✔

✔

✔

✔

✔

✔

✔

90-1000mm

3/8″

1/2″

3/8″

5

5

19

✔

✔

✔

✔

✔

✔

✔

✔

90-1000mm

3/8″

1/2″

3/8″

6.5

6.5

24.6

✔

✔

✔

✔

✔

✔

✔

✔

90-1000mm

3/8″

1/2″

3/8″

8

8

30.3

✔

✔

✔

✔

✔

✔

✔

✔

90-1000mm

3/8″

1/2″

3/8″

9

9

34

✔

✔

✔

✔

✔

✔

✔

✔

90-1000mm

1/2″

3/4″

1/2″

10

10

38

✔

✔

✔

✔

✔

✔

✔

150-1000mm

1/2″

3/4″

1/2″

12

12

45.5

✔

✔

✔

✔

✔

✔

✔

150-1000mm

1/2″

3/4″

1/2″

15

15

56

✔

✔

✔

✔

✔

✔

✔

150-1000mm

1/2″

3/4″

1/2″

17

17

64.4

✔

✔

✔

✔

✔

✔

✔

150-1000mm
