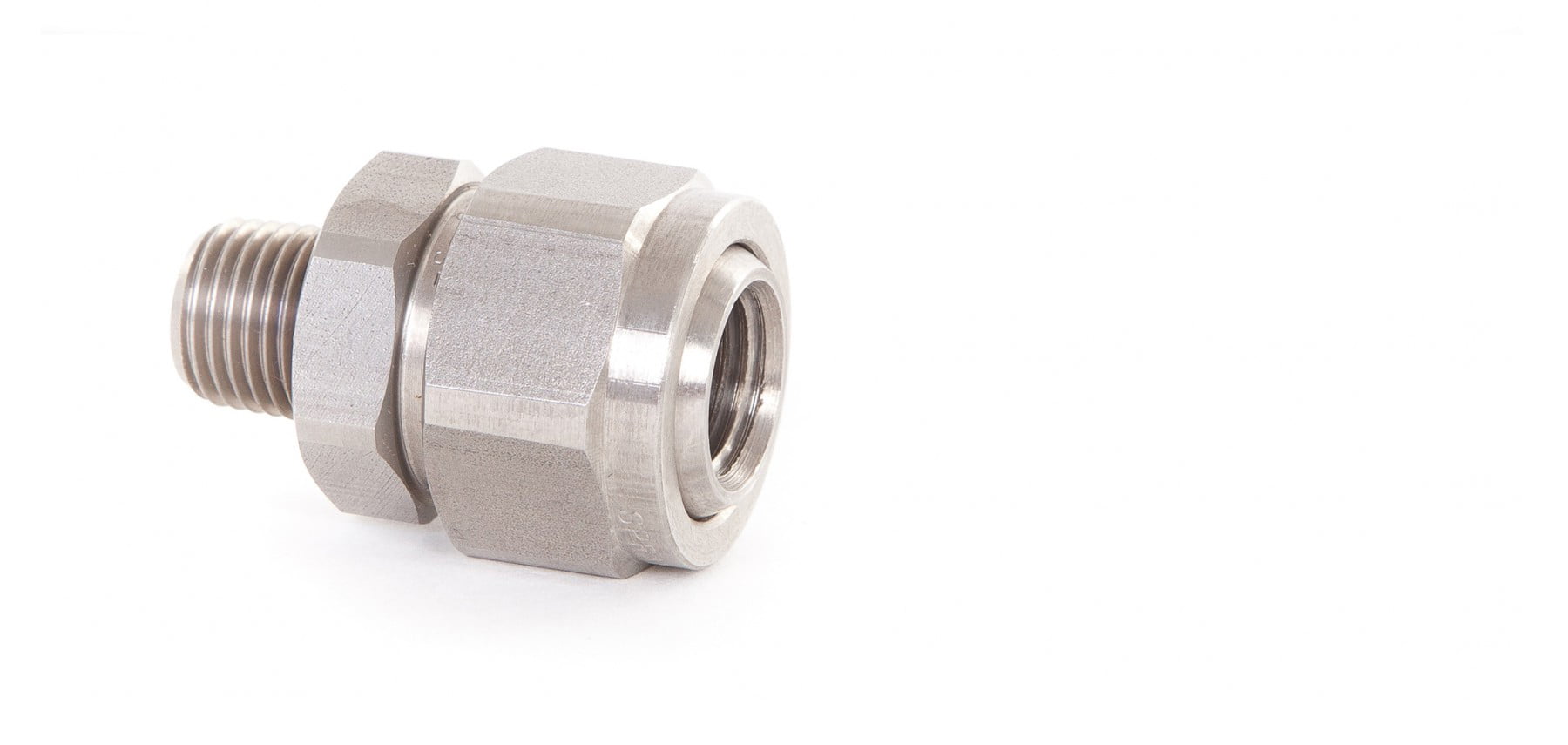

Swivel Joints

Description

DESCRIPTION

Our range of swivel joints allow you to adjust the angle and direction of the spray nozzle used without expensive piping changes.

Using these swivel joints allows greater control of spray direction for precise coverage.

MATERIALS AVAILABLE

Stainless Steel
Brass

01642 057075

ENQUIRE NOW

APPLICATION

Industrial Washing Machines
Product Washing
Pre-treatment

FEATURES

Swivel Joints allow adjustable alignment of spray nozzles
Greater control over spray direction
From 40° to 70° adjustment

swivel joints allow for adjustable spray direction

Swivel Joint Dimensions

Part Number

A

Inlet Pipe Conn.

BSP or NPT

B

Outlet Pipe Conn.

BSP or NPT

C

Outlet Length (mm)

D

Hex Size

(mm)

E

Angle of Adjustment

Net Wt.

(g)

1/4 x 1/4

1/4M

1/4F

44.5

38.1

70O

227

3/8 x 1/4

3/8M

1/4F

44.5

38.1

70O

227

3/8 x 3/8

3/8M

3/8F

44.5

38.1

55O

227

1/2 x 3/8

1/2M

3/8F

44.5

38.1

55O

227

1/2 x 1/2

1/2M

1/2F

61.9

38.1

60O

425

1/2 x 3/4

1/2M

3/4F

61.9

38.1

40O

425

3/4 x 1/2

3/4M

1/2F

61.9

38.1

60O

425

3/4 x 3/4

3/4M

3/4F

61.9

38.1

40O

425
