Tanks and Vessels up to 5 Mtr

Description

DESCRIPTION

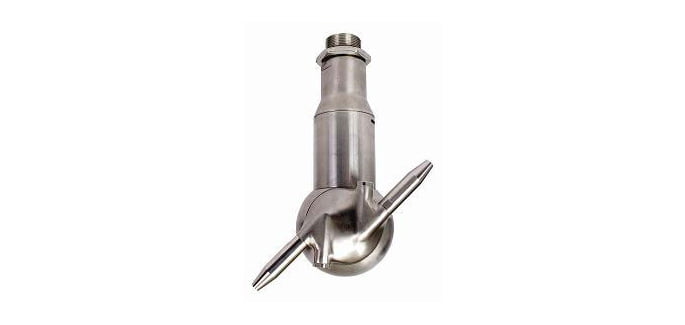

For cleaning large tanks and vessels we supply a range of gear driven tank cleaning heads which combine high performance cleaning efficiency with extended operating life and reduced life cycle costs.

This range of nozzles are ideal for cleaning tanks where the product is difficult to clean, and where high impact cleaning is needed.Its limited moving parts ensure extended operating life and reduced down time.

01642 057075

ENQUIRE NOW

APPLICATION

Produces excellent 360 degree coverage
Various flow and pressure options
Nozzle has self draining and self flushing design
Rotation is metered for maximum spray impact

FEATURES

Working Pressure 2 ““ 5 bar
Material of construction 316L ST.ST.

TANKS AND VESSELS UP TO 5 METRES

Spray Angle Nozzle Ref Connection
Flow Rate VS Pressure (l/min)
1 2 3 5 7
SPRN219 ¾”
68 97 118 153 181
SPRN289 ¾”
103 145 178 229 271
360° SPRN339 1″
137 193 237 306 361
SPRN379 1½”
171 242 296 382 451
SPRN429 1½”
228 322 395 509 602
SPRN469 1½”
296 419 513 662 782
