Metal Tangential Full Cone Nozzle

Description

DESCRIPTION

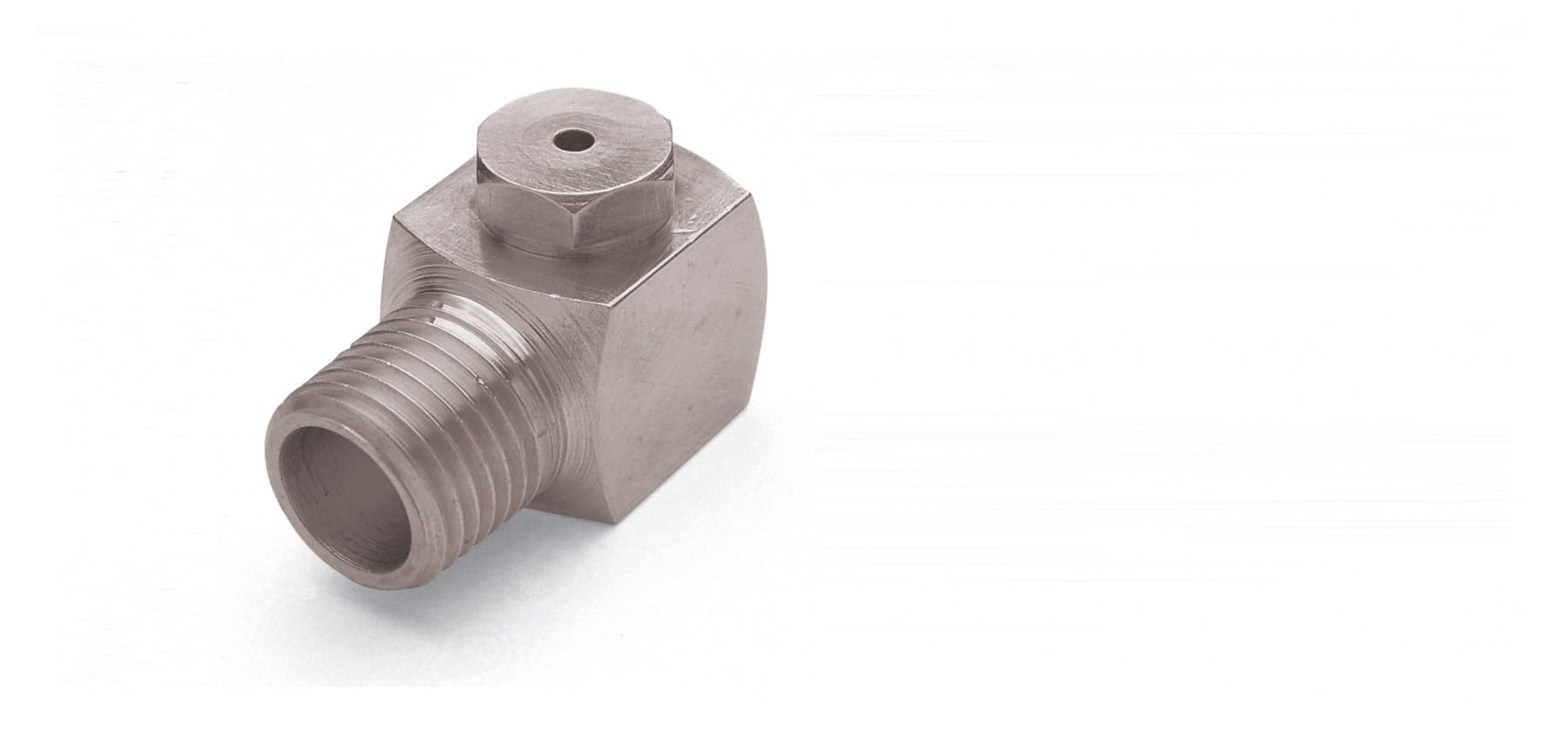

The metal tangential full cone nozzle produces a full cone spray pattern that sprays at 90° to the inlet of the nozzle. A two piece nozzle body with internal swirl cone produces the full cone spray pattern. The nozzle has a square body for easy installation. Male and female threaded connections available.

MATERIALS AVAILABLE

Brass
Stainless Steel
Other materials available on request

SPRAY ANGLES AVAILABLE

70°, 110°

ORDERING EXAMPLE

Metal Tangential Full Cone Stainless Steel 1/4″ 6.5-70°

Reviews

There are no reviews yet.

Be the first to review “Metal Tangential Full Cone Nozzle”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Cooling
Rinsing
Washing
Food Processing
Fire Suppression
Gas Scrubbing, Washing and Cooling

FEATURES

Two piece nozzle body with internal swirl vane
Uniform distribution of spray droplets
Spray trajectory is 90 degrees to the inlet
Useful nozzle design for installations with space limitations

UNIFORM DISTRIBUTION SPRAYING AT 90° TO THE INLET

PIpe Size BSP

Male (mm)

Female (mm)

A

B

C

D

E

F

G

H

1/8

27.0

16.0

28.5

22.5

27.0

16.0

28.5

22.5

1/4

28.0

16.0

28.5

20.0

28.0

16.0

28.5

20.0

3/8

35.0

20.0

32.5

25.0

35.0

20.0

32.5

25.0

Nozzle

Reference

Thread Connections (BSP)

Flow (L/min) @ Pressure (bar)

1/8″

1/4″

3/8″

1.0

2.0

3.0

4.0

5.0

7.0

10.0

2

0.91

1.29

1.58

1.82

2.04

2.41

2.88

3

1.37

1.93

2.37

2.74

3.06

3.62

4.32

3.9

1.78

2.51

3.08

3.56

3.98

4.70

5.62

4.3

1.96

2.77

3.40

3.92

4.38

5.19

6.20

5

2.28

3.22

3.95

4.56

5.10

6.03

7.21

6.5

2.96

4.19

5.13

5.93

6.63

7.84

9.37

8

3.65

5.16

6.32

7.29

8.16

9.65

11.53

10

4.56

6.45

7.90

9.12

10.19

12.06

14.42

12.5

5.70

8.06

9.87

11.40

12.74

15.08

18.02

14

6.38

9.03

11.05

12.76

14.27

16.89

20.18

15

6.84

9.67

11.84

13.68

15.29

18.09

21.62

20

9.12

12.86

15.79

18.24

20.39

24.12

28.83
