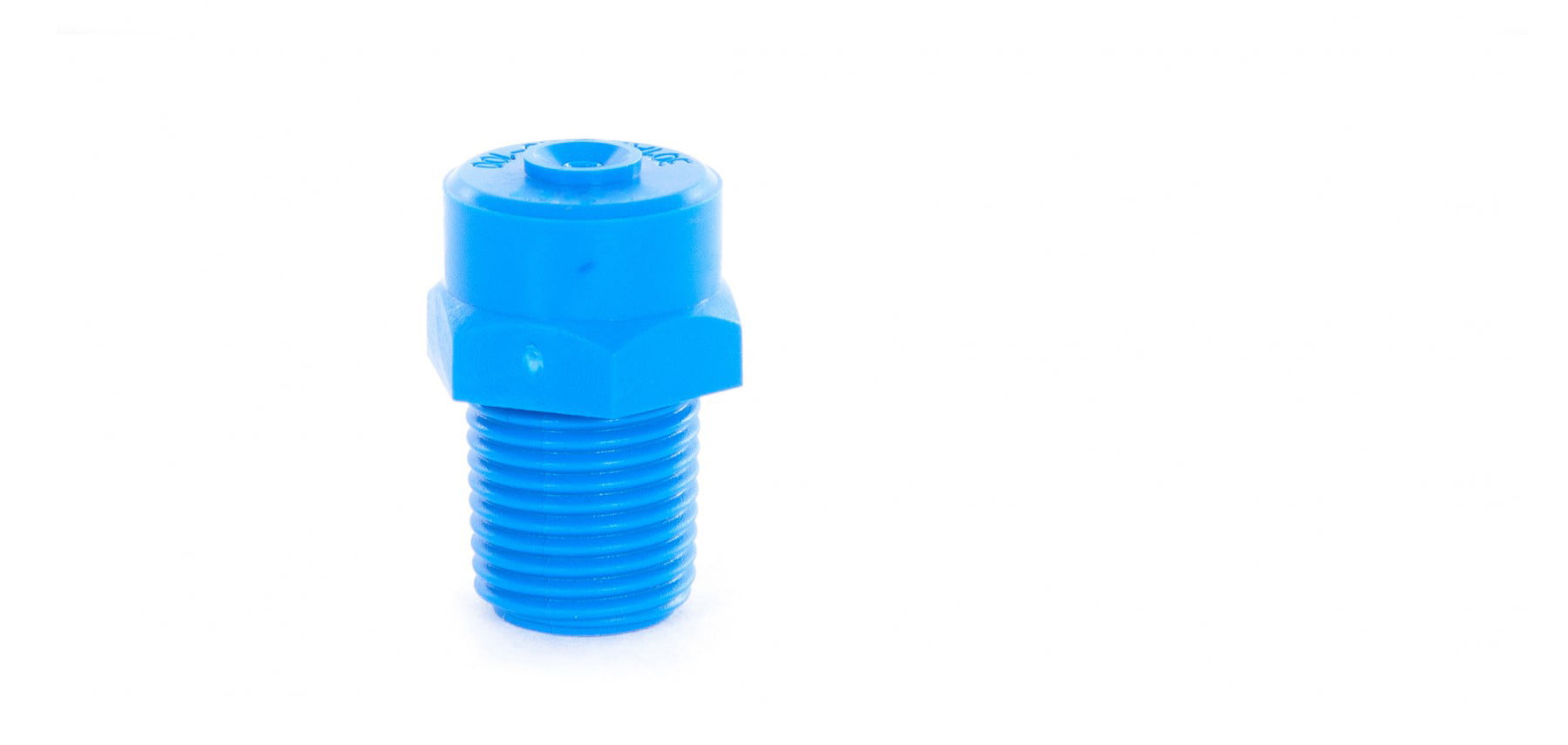

Plastic Hollow Cone Misting Nozzle

Description

DESCRIPTION

Plastic Hollow Cone Misting Nozzle produces a hollow cone spray pattern with a ring-shaped impact area. The fixed internal whirl vane generates the spray pattern and uniform coverage. This nozzle type produces small droplets with low impact. This nozzle is also available with optional push fit porous filter. The nozzle has a hex body design for easy installation.

MATERIALS AVAILABLE

Polyacetal

SPRAY ANGLES AVAILABLE

65° to 105°

ORDERING EXAMPLE

Plastic Hollow Cone Misting Nozzle 0.7° – 80°

Reviews

There are no reviews yet.

Be the first to review “Plastic Hollow Cone Misting Nozzle”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Evaporative Cooling
Humidification
Moistening
Insecticide Spraying
Disinfectant Application
Cooling (areas and products)

FEATURES

Low impact
Small droplets
Uniform spray distribution over a wide range of flow rates
One piece male threaded design with swirl vane
Hexagon body for quick and easy installation
Ball check valve version available for certain sizes

FINELY ATOMISED SPRAY IN A HOLLOW CONE PATTERN

A (mm)

B (mm)

C (mm)

18.0

14.7

12.5

Nozzle Reference

Flow-Litres/hour @ Pressure Bar

3 Bar Spray

Angle

3

4

5

7

10

0.4-65

1.58

1.82

2.04

2.41

2.88

65

0.7-80

2.76

3.19

3.57

4.22

5.05

80

1.2-105

4.74

5.47

6.12

7.24

8.65

105

1.6-100

6.32

7.29

8.16

9.65

11.53

100

2.6-100

10.26

11.85

13.25

15.68

18.74

100

5.0-75

19.74

22.79

25.48

30.15

36.04

75
