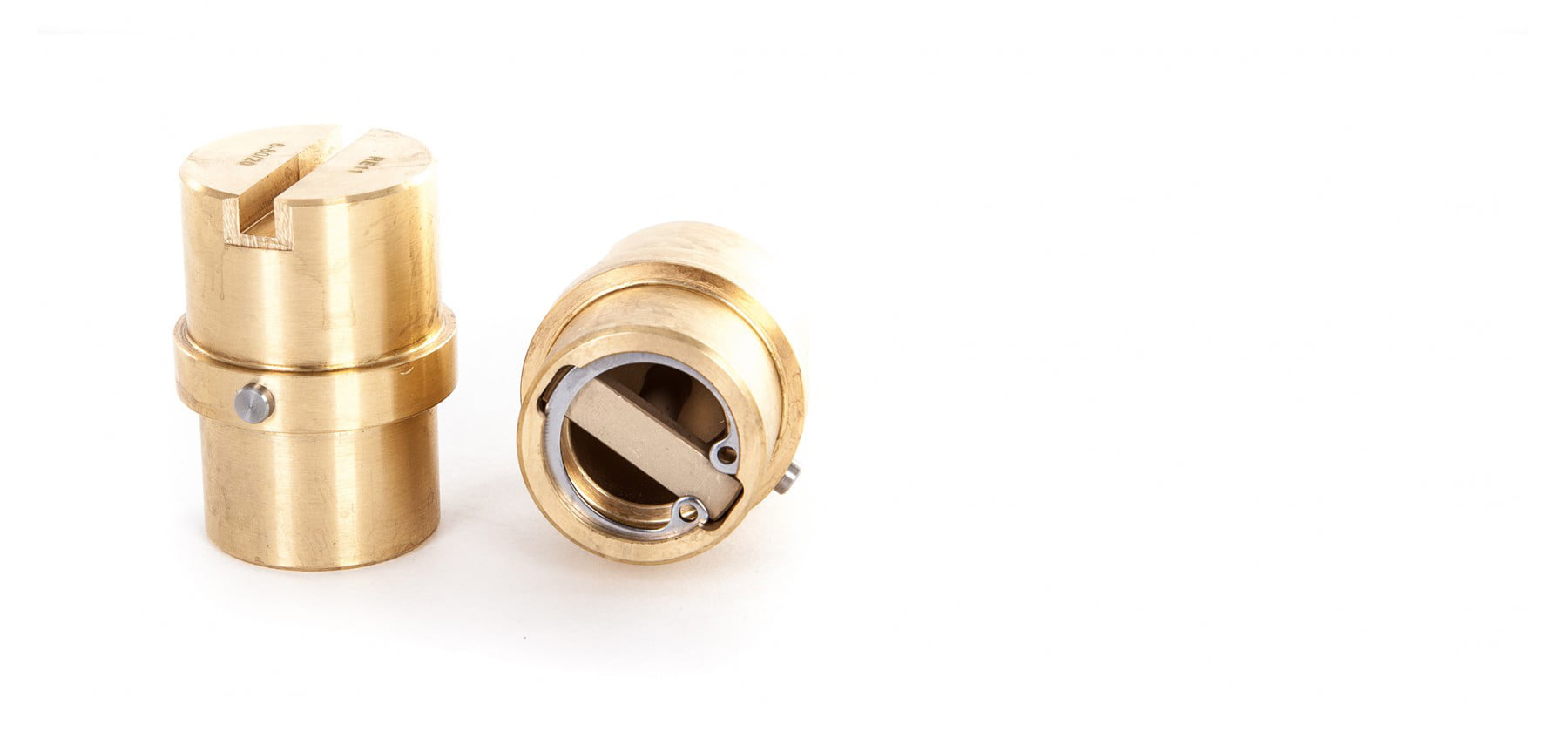

RE Series Nozzle

Description

DESCRIPTION

The RE Series nozzle produces a rectangular spray foot print with uniform spray distribution. The nozzle orifice profile ensures a precise and even spray with the additional benefit of having removable internals, thus allowing ease for maintenance.

MATERIALS AVAILABLE

Brass

SPRAY ANGLES AVAILABLE

60 – 120 degree

ORDERING EXAMPLE

RE11 18-80/24

Size of nozzle body: RE11
Water flow at 2.8 bar (litre/min): 18 LPM
Spray Angle – Major axis: 80°
Spray Angle – Minor axis: 24°

Reviews

There are no reviews yet.

Be the first to review “RE Series Nozzle”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Continuous Casting
Secondary Cooling

FEATURES

Removable circlip to allow for easy cleaning and maintenance
Even Distribution
Brass construction with stainless steel circlip and locating pin
Working pressure between 2 – 20 bar
Brass retaining nut

SPRAY NOZZLE WITH UNIFORM COVERAGE AND DROPLETS

NOZZLE SIZE CHART

RE1 4-80-24

RE1 6-80-24

RE11 10-80-36

RE11 18-80-20

RE1 4-80-26

RE1 6-80-26

RE11 12-80-24

RE11 18-80-24

RE1 4-80-28

RE1 6-80-30

RE11 12-80-28

RE11 18-80-26

RE1 4-80-32

RE1 6-80-32

RE11 12-80-30

RE11 18-80-30

RE1 4-80-36

RE1 8-80-24

RE11 12-80-36

RE1 5-80-24

RE1 8-80-28

RE11 15-80-30

RE1 5-80-28

RE1 8-80-30

RE11 15-80-32

RE1 5-80-32

RE11 10-80-24

RE11 16-80-26

RE1 5-80-36

RE11 10-80-28

RE11 16-80-28
