Spiral Full Cone Nozzle

Description

DESCRIPTION

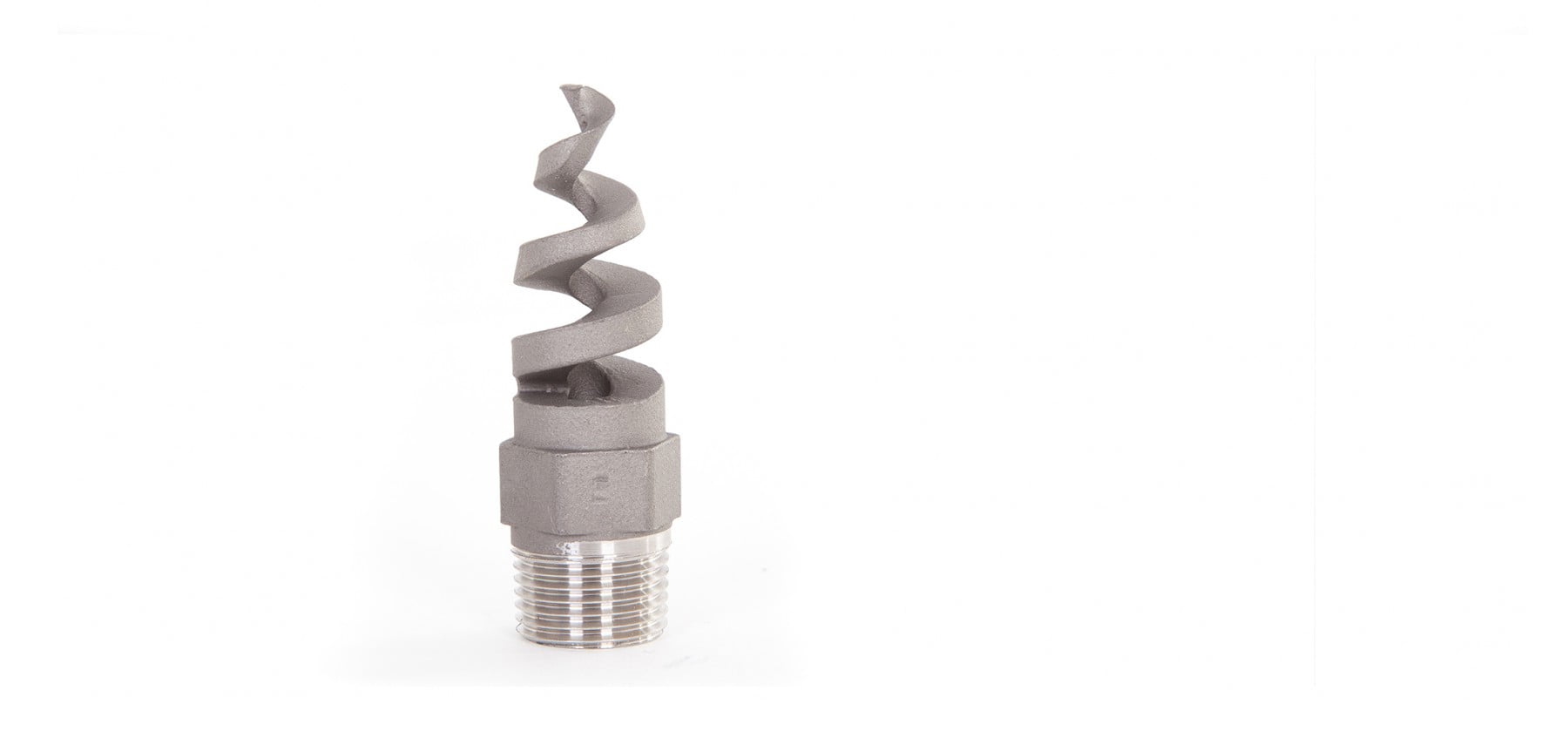

The spiral full cone nozzle produces a full cone spray pattern with heavy rings within the spray. The nozzle has clog-resistant performance with no internal parts and is constructed in one piece. The nozzle has a hex body design for easy installation. Male threaded connection is standard.

MATERIALS AVAILABLE

Brass
Stainless Steel
PVC
Polypropylene
PTFE
Other materials available on request

SPRAY ANGLES AVAILABLE

60°, 90°, 150°, 170°,

ORDERING EXAMPLE

Spiral Nozzle Full Cone Stainless Steel 3/8″ 16-90°

Reviews

There are no reviews yet.

Be the first to review “Spiral Full Cone Nozzle”

Your email address will not be published. Required fields are marked *

01642 777720

ENQUIRE NOW

APPLICATION

Aerating
Chemical Processing
Condenser Sprays
Fire Suppression
Evaporative Cooling
Gas Scrubbing
Desulphurisation
Gas cooling

FEATURES

One piece construction
No internal parts
Clog resistant performance
High energy efficiency
Wide range of flow rates and spray angles
Hexagon body for easy installation

Size

A Dimension (Length) mm

B Dimension (Hexagon) mm

1/8″

42.9

14.3

1/4″

47.6

14.3

3/8″

47.6

17.5

1/2″

63.5

22.2

3/4″

69.9

28.6

1″

92.1

34.9

1 1/2″

111

50.8

2″

176

63.5

3″

219

88.9

4″

257

114

Male Pipe Size

Nozzle

Reference

Flow-Litres/flow @ Pressure Bar

Approx.Orif. Dia.

(mm)

Free

Pass

Dia.

0.5

0.7

1.0

2.0

3.0

5.0

10.0

20.0

1/8

6

2.26

2.67

3.19

4.50

5.50

7.10

10.10

14.30

2.38

2.38

1/8

8

4.19

4.96

5.93

8.40

10.30

13.20

18.70

26.50

3.18

3.18

1/4

6

2.26

2.67

3.19

4.50

5.50

7.10

10.10

14.30

2.38

2.38

1/4

8

4.19

4.96

5.93

8.40

10.30

13.20

18.70

26.50

3.18

3.18

1/4

10

6.45

7.63

9.12

12.90

15.80

20.40

28.80

40.80

3.97

3.18

3/8

6

2.26

2.67

3.19

4.50

5.50

7.10

10.10

14.30

2.38

2.38

3/8

8

4.19

4.96

5.93

8.40

10.30

13.20

18.70

26.50

3.18

3.18

3/8

10

6.45

7.63

9.12

12.90

15.80

20.40

28.80

40.80

3.97

3.18

3/8

12

9.67

11.40

13.70

19.30

23.70

30.60

43.20

61.10

4.76

3.18

3/8

14

13.10

15.40

18.50

26.10

32.00

41.30

58.40

82.60

5.56

3.18

3/8

16

17.10

20.20

24.20

34.20

41.80

54.00

76.40

108.00

6.35

3.18

3/8

20

26.60

31.50

37.60

53.20

65.10

84.10

119.00

168.00

7.94

3.18

1/2

24

38.8

46.0

54.9

77.7

95.1

123

174

246

9.53

4.76

1/2

28

53.2

62.9

75.2

106

130

168

238

336

11.1

4.76

3/4

32

67.7

80.1

95.7

135

166

214

303

428

12.7

4.76

1

40

108

128

153

216

264

341

483

683

15.9

6.35

1

48

153

181

216

306

375

484

685

968

19.1

6.35

1 1/2

56

208

246

294

416

509

657

930

1320

22.2

7.94

1 1/2

64

272

322

385

545

667

861

1220

1720

25.4

7.94

1 1/2

72

309

366

438

619

758

978

1380

1960

28.6

7.94

2

88

451

534

638

902

1110

1430

2020

2850

34.9

11.1

2

96

570

674

806

1140

1400

1800

2550

3600

38.1

11.1

3

112

825

976

1170

1650

2020

2610

3690

5220

44.5

14.3

3

128

1090

1290

1550

2190

2680

3460

4891

6920

50.8

14.3

4

160

1690

2000

2390

3380

4140

5350

7570

10700

63.5

15.9
