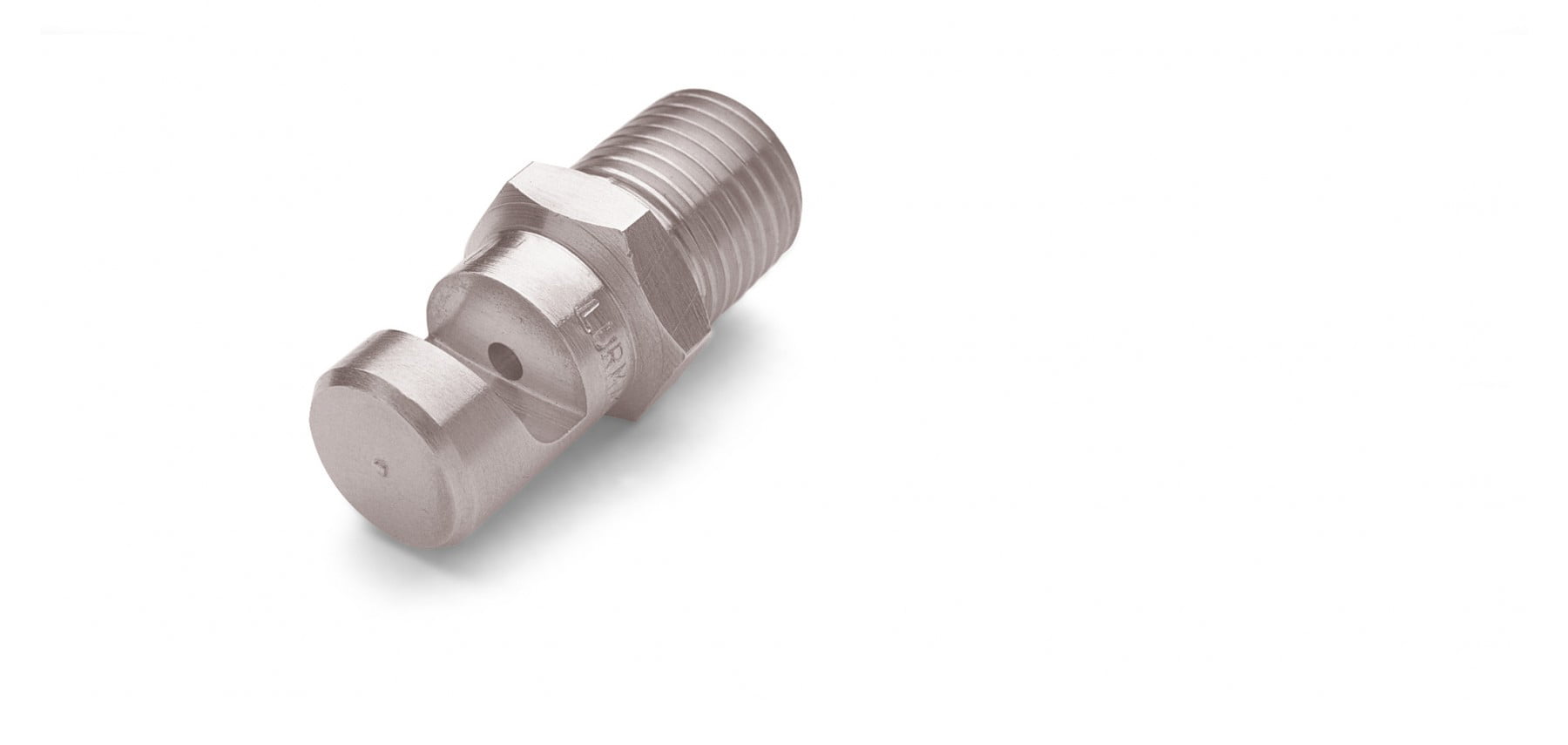

The metal deflected nozzle produces a wide flat fan spray pattern with uniform distribution, the spray is deflected 75° from inlet of orifice. The spray nozzle is a one piece male pipe threaded design with a hex body for easy installation.
Brass
Stainless Steel
Other materials available on request.
110°, 115°, 125°, 145°

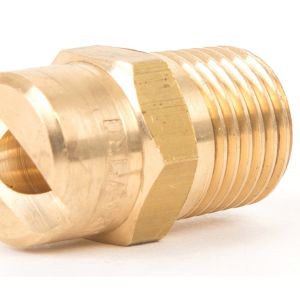

Metal Deflected Nozzle – Brass 1/2″ 40-145°
Cooling
Film Washing
Fire Suppression
Foam Control
Spraying Eliminator Plates
Water Curtain
Precision engineered for quality control of flow, deflection and spray angle
Wide-angle flat fan spray pattern with uniform distribution
Uniform distribution over a wide range of flow rates and pressure
Unobstructed flow passage minimises clogging
One piece male threaded design
Hexagon body for quick and easy installation
|
Nozzle Reference |
Thread Connection BSP |
FLow (L/min) @ Pressur (bar) |
Spray Angle @ 1.5 bar |
|||||||||||
|
1/8“ |
1/4“ |
3/8“ |
1/2“ |
2/4“ |
1″ |
0.5 |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
4.0 |
||
|
0.50 |
✔ |
0.16 |
0.23 |
0.28 |
0.32 |
0.36 |
0.39 |
0.46 |
110 |
|||||
|
0.80 |
✔ |
0.24 |
0.34 |
0.42 |
0.48 |
0.54 |
0.59 |
0.68 |
115 |
|||||
|
1.0 |
✔ |
0.32 |
0.46 |
0.56 |
0.64 |
0.72 |
0.79 |
0.91 |
115 |
|||||
|
1.5 |
✔ |
0.48 |
0.68 |
0.84 |
0.97 |
1.08 |
1.18 |
1.37 |
115 |
|||||
|
2.0 |
✔ |
✔ |
0.64 |
0.91 |
1.12 |
1.29 |
1.44 |
1.58 |
1.82 |
115 |
||||
|
2.5 |
✔ |
✔ |
0.81 |
1.14 |
1.40 |
1.61 |
1.80 |
1.97 |
2.28 |
115 |
||||
|
3.0 |
✔ |
✔ |
0.97 |
1.37 |
1.68 |
1.93 |
2.16 |
2.37 |
2.74 |
125 |
||||
|
4.0 |
✔ |
✔ |
1.29 |
1.82 |
2.23 |
2.58 |
2.88 |
3.16 |
3.65 |
125 |
||||
|
5.0 |
✔ |
✔ |
1.61 |
2.28 |
2.79 |
3.22 |
3.60 |
3.95 |
4.56 |
125 |
||||
|
7.5 |
✔ |
✔ |
2.42 |
3.42 |
4.19 |
4.84 |
5.41 |
5.92 |
6.84 |
145 |
||||
|
10 |
✔ |
✔ |
3.22 |
4.56 |
5.58 |
6.45 |
7.21 |
7.90 |
9.12 |
145 |
||||
|
15 |
✔ |
✔ |
4.84 |
6.84 |
8.38 |
9.67 |
10.81 |
11.84 |
13.68 |
145 |
||||
|
20 |
✔ |
✔ |
✔ |
6.45 |
9.12 |
11.17 |
12.89 |
14.42 |
15.79 |
18.24 |
145 |
|||
|
25 |
✔ |
✔ |
8.06 |
11.40 |
13.96 |
16.12 |
18.02 |
19.74 |
22.79 |
145 |
||||
|
30 |
✔ |
9.67 |
13.68 |
16.75 |
19.34 |
21.62 |
23.69 |
27.35 |
145 |
|||||
|
35 |
✔ |
11.28 |
15.96 |
19.54 |
22.57 |
25.23 |
27.64 |
31.91 |
145 |
|||||
|
40 |
✔ |
✔ |
12.89 |
18.24 |
22.33 |
25.79 |
28.83 |
31.58 |
36.47 |
145 |
||||
|
50 |
✔ |
16.12 |
22.79 |
27.92 |
32.24 |
36.04 |
39.48 |
45.59 |
145 |
|||||
|
60 |
✔ |
✔ |
19.34 |
27.35 |
33.50 |
38.68 |
43.25 |
47.38 |
54.71 |
145 |
||||
|
80 |
✔ |
✔ |
25.79 |
36.47 |
44.67 |
51.58 |
57.67 |
63.17 |
72.94 |
145 |
||||
|
100 |
✔ |
✔ |
32.24 |
45.59 |
55.83 |
64.47 |
72.08 |
78.96 |
91.18 |
145 |
||||
|
120 |
✔ |
38.68 |
54.71 |
67.00 |
77.37 |
86.50 |
94.75 |
109.41 |
145 |
|||||
|
160 |
✔ |
51.58 |
72.94 |
89.33 |
103.15 |
115.33 |
126.34 |
145.88 |
145 |
|||||
|
210 |
✔ |
67.70 |
95.74 |
117.25 |
135.39 |
151.37 |
165.82 |
191.47 |
145 |
|||||
|
300 |
✔ |
96.71 |
136.76 |
167.50 |
193.41 |
216.24 |
236.88 |
273.53 |
145 |
|||||
|
450 |
✔ |
145.06 |
205.15 |
251.25 |
290.12 |
324.37 |
355.33 |
410.29 |
145 |
|||||
