Nozzle Pipe Clamp Holders

Description

DESCRIPTION

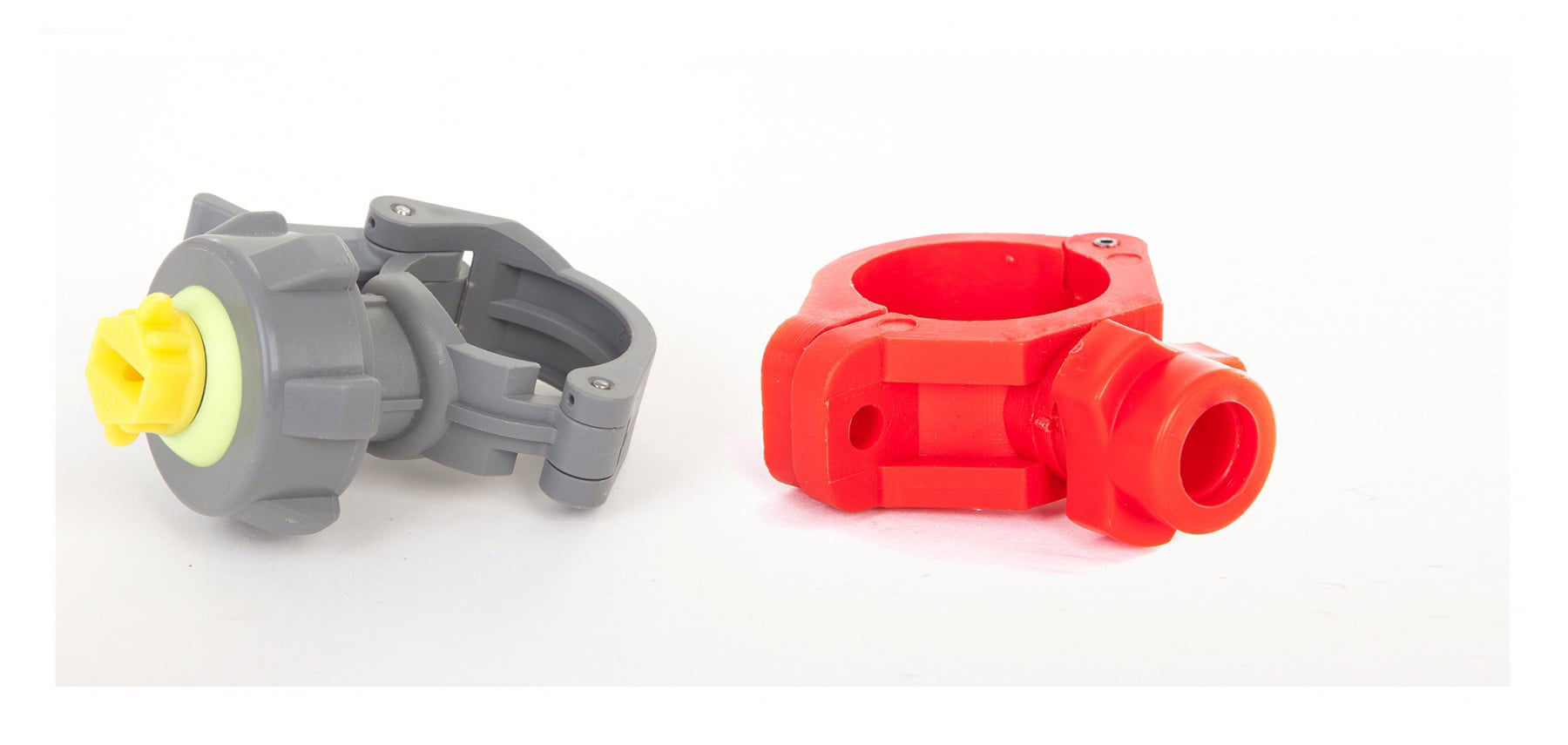

These nozzle pipe clamp holders are ideal for a large number of applications due to its quick release design. Nozzles can be changed quickly and aligned by hand without tools. These holders make maintenance easier as the nozzle tip is easily accessable.

MATERIALS AVAILABLE

Polypropylene
PVDF

01642 057075

ENQUIRE NOW

APPLICATION

Pre-treatment
Washing Vehicles
Industrial Washing Machines
Washing Metals
Degreasing
Washing printed circuit boards

FEATURES

Nozzle Orientates 54 degree in any direction
Max Operating pressures 10 bar
Nozzle can be aligned by hand and changed quickly
Quick set-up system features “˜snap in”™ tips
Pipe sizes 1/2″ NB to 1 1/2” NB

Quick release nozzle holders for any spraying application









NPT OR BSP CONNECTION

PIPE SIZE

DIMENSIONS

D

BR

B1

B2

B3

H1

H2

3/8″ BSP

1/2″

20.22

6.2

21.2

23.8

18.5

36.5

16.5

3/8″ BSP

3/8″

16.5-18.0

6.2

19.0

22.0

18.5

34.5

14.5

3/8″ BSP

3/4″

25-27.5

7.8

24.5

26.5

22.0

39.5

17.5





HOLDERS FOR PIPE SIZES 3/4″ – 1 1/2″ NB

DIMENSIONS

THREADED BALL CONNECTION

PIPE SIZE

SPIGOT SIZE

A

B

C

1/8″, 1/4″ 3/8″ NPT

1″

10, 14, 17MM

62

39

67

1/8″, 1/4″ 3/8″ NPT

1 1/4″

10, 14, 17MM

67

43

72

1/8″, 1/4″ 3/8″ NPT

1 1/2″

10, 14, 17MM

71

46

75
