Flat Fan Nozzles

Description:

Flat fan nozzles ensure a uniform distribution of liquids as either a flat or sheet type spray. We offer a wide range of flow rates and pressures with spray angles available from 0° (solid stream) to 145°.
All flat jet nozzles benefit from an unobstructed flow passage thus minimising clogging potential.



1-1-2

Optimisation Tips:

  • Evaluate your specific spraying application and implement a regular nozzle maintenance plan.
  • Use nozzle strainers or in line filters to reduce nozzle blockage.
  • Use adjustable pipe clamp assemblies for quick, precise nozzle orientation.
  • Monitor flow rate and pressure to detect wear, loss of pressure and or increase in flow confirms nozzle wear.
  • A sudden pressure increase usually results in blocked nozzles.
  • Contact our office for further assistance and to reduce operating costs through precision spray technology.

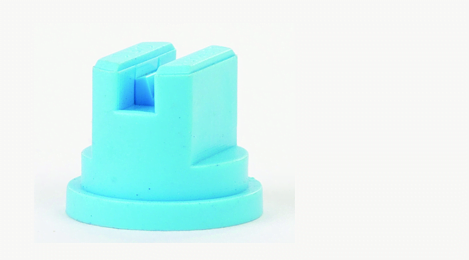

Plastic Fan Tip

Available Angle

Min/Max Flow

Application

Connection

Page Number

 Plastic Fan Tip B 1Thumb

65°, 80°, 110°

0.08 ““ 25.3 litres/min

Degreasing & Rinsing

Etching & Rinsing

Washing

Spray Coating

Spray Cooling

Flanged Tip with connection onto nozzle body (see accessories section)

10-11

Metal Fan Tip

Available Angle

Min/Max Flow

Application

Connection

Page Number

 metal fan tip 1Thumb

65°, 80°, 110°

0.08 ““ 25.3 litres/min

Degreasing & Rinsing

Etching & Rinsing

Washing

Spray Coating

Spray Cooling

Flanged Tip with connection onto nozzle body (see accessories section)

12-13

Plastic Flat Fan Nozzle

Available Angle

Min/Max Flow

Application

Connection

Page Number

 Plastic Flat Fan Nozzle1Thumb

25°, 40°, 65°, 80°

0.33-30.55 litres/min

Industrial Washing Machines

Vegetable Washing

Wheel Washing

Degreasing

Circuit Board Processing

Spray Coating

Screwed connection 1/8″ or ¼”

14-15

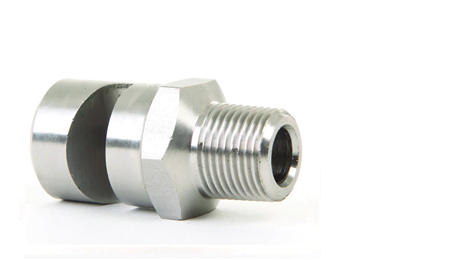

Metal Flat Fan Nozzle

Available Angle

Min/Max Flow

Application

Connection

Page Number

 Metal Flat Fan Nozzle1Thumb

0°, 15°, 25°, 40°, 65°, 80°, 110°

0.16-758.95 litres/min

Air Washing

Cooling & Quenching

Fire Suppression

Gas Washing

Liquor Washing

Scrubbers

Washing/Rinsing

Screwed connection

1/8″, ¼”, 3/8″, ½”, ¾”, 1″

16-17

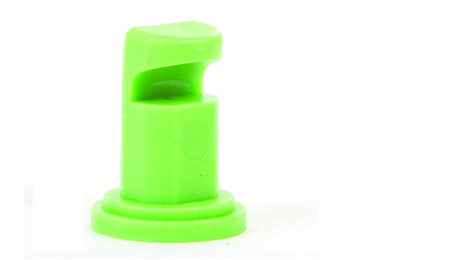

Plastic Floodjet Tip

Available Angle

Min/Max Flow

Application

Connection

Page Number

 Plastic Flood Jet Nozzle1Thumb

80°, 95°, 105°, 110°, 120°, 145°

0.16-18.24 litres/min

Cooling Conveyor belts

Film Washing

Water Curtain

Flange Tip with connection onto nozzle body (see accessories section)

18-19

Metal Floodjet Tip

Available Angle

Min/Max Flow

Application

Connection

Page Number

 Metal Flood Jet nozzle Tip1Thumb

110°, 115°, 125°, 145°

0.16-18.24 litres/min

Cooling

Film Washing

Fire Suppression

Foam Control

Spraying Eliminator Plates

Water Curtain

Flange Tip with connection onto nozzle body (see accessories section)

20-21

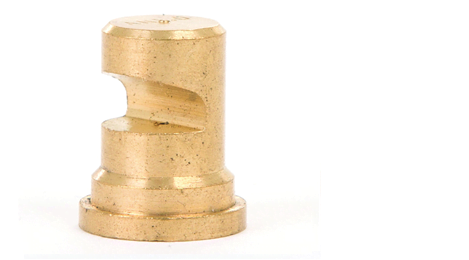

Metal Floodjet Nozzle

Available Angle

Min/Max Flow

Application

Connection

Page Number

 Metal Flood Jet Nozzle1Thumb

110°, 115°, 125°, 145°

0.16-410.29 litres/min

Cooling

Film Washing

Fire Suppression

Foam Control

Spraying Eliminator Plates

Water Curtain

Screwed connection

1/8″, ¼”, 3/8″, ½”, ¾”, 1″

22-23
