Air Atomising Nozzles

Air Atomising Nozzles are twin fluid type spray nozzles, usually using compressed air and a liquid to create an atomised droplet. Available spray patterns within this range include flat fan, full cone and hollow cone. The nozzles are available in pressure design or gravity fed. The air atomising nozzle is suitable for spraying viscous liquids due to the shearing of the liquid by means of compressed air.

Air atomising nozzles are popular on continuous production lines where coating or moistening of a product is required on a repeatable basis. This is achieved using automatic clean out needles and shut off valves built into the nozzle design, this ensures that nozzle maintenance is kept to minimum.

Optimisation Tips:

  • Evaluate your specific spraying application and implement a regular nozzle maintenance plan.
  • Use nozzle strainer or in line filters to reduce nozzle blockage.
  • Use split eyelet connectors on both the air and fluid lines for easy nozzle connection.
  • For optimal control of your air atomising spray system, the use of a Sealpump Control Package helps conserve liquid usage and reduces waste by monitoring and automatically adjusting spray coverage flow rate, droplet size, liquid and air atomising pressures.
  • When spraying viscous liquids use a heated Sealpump material pressure tank to keep viscous liquids warm and transferable.
  • Use air atomising nozzles with clean-out needles to eliminate clogging and ensure optimum performance.

01642 777720

ENQUIRE NOW

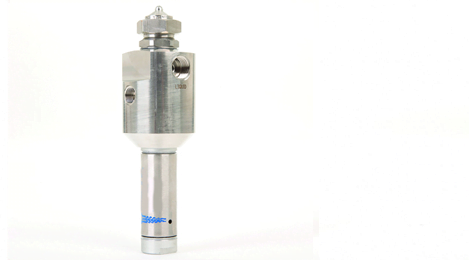

Pressure Fed Wide Round Spray

Available Angle

Min/Max Flow

Application

Connection

Page Number

pressure fed wide round spray thumb

70

1.7 – 93 litres per hour

Humidification

Odour Control

Cooling

Dust Control

1/4″

56-57

Pressure Fed Narrow Round Spray

Available Angle

Min/Max Flow

Application

Connection

Page Number

pressure fed wide round spray thumb

20

1.4 – 250 litres per hour

Odour Control

Cooling

Gas Scrubbing

1/4″

58-59

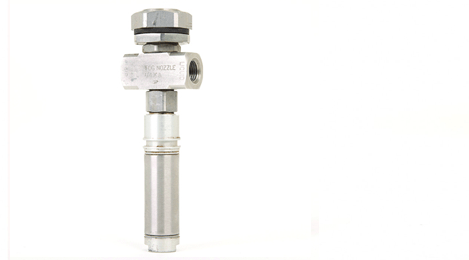

Siphon Fed Narrow Round Spray

Available Angle

Min/Max Flow

Application

Connection

Page Number

siphon fed narrow round spray thumb

20

0.5 – 24 litres per hour

Humidification

Cooling

1/4″

60-61

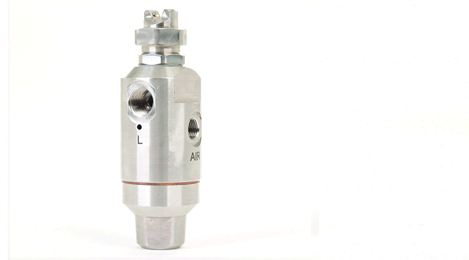

Pressure Fed Internal Mix Flat Fan Spray

Available Angle

Min/Max Flow

Application

Connection

Page Number

pressure fed-internal-mix-flat-fan-spray thumb

80

1 -140 litres per hour

Coating

Cooling

Gas scrubbing

Lubrication

1/4″

62-63

Pressure Fed External Mix Flat Fan Spray

Available Angle

Min/Max Flow

Application

Connection

Page Number

pressure-fed-external-mix-flat-fan-spray thumb

60-90

3 – 280 litres per hour

Coating

Cooling

Lubrication

1/4″

64-65

Siphon Fed Flat Fan Spray

Available Angle

Min/Max Flow

Application

Connection

Page Number

siphon-fed-flat-fan-spray thumb

60-85

0.8 – 5.1 litres per hour

Coating

Cooling

Lubrication

1/4″

66-67

Showing all 6 results
